Name: TX-BF05 Security Anti-Drone Jammer | Backpack Style 1000-2000M Long Range Drone Signal Jammer with Dual Charging
Brand: Shenzhen TeXin electronic Co., Limited
SKU: TX-BF05
Price: 4,004.00 USD
Availability: InStock

Detail Information

Product Type:	Back Pack Drone Jammer	Total Output Power:	290W
Body Size:	493519 CM	Body Weight:	16.8 Kg
Outer Antenna:	High Gain 16dBi Panel Directional Antenna	Working Temperature:	-20℃~75℃
Working Humidity:	35~95%	Power Consumption:	< 900W
Power Input 1:	AC100V~240V	Power Input 2:	DC24V
Built-in Battery:	DC24V 30A	Battery Lasting Time:	1Hour
Highlight:	High Power Wifi Signal Killer , 100w Wifi Signal Blocking Device , 10 Channel Wifi Signal Blocking Device

Product Description

TX-BF05 Backpack Drone Signal Jammer - Portable High-Power Anti-Drone Jammer

Effectively force drones to land/return home within 1000-2000m (environment-dependent), military-grade durability, built-in rechargeable battery for on-the-go use.

Core Advantages

✅ Dual Antenna for Flexible Jamming - High-gain omni-directional antenna (1000-1500m radius) & panel directional antenna (1500-2000m targeting), adapt to different anti-drone scenarios

✅ High-Power Stable Jamming - 6 independent frequency channels, total 290W output power

✅ Military-Grade Durability - Military resin shell, IP-grade water/dust proof, heat resistant & anti-corrosion, works in harsh environments (-20℃~75℃)

✅ Smart Heat Dissipation - Built-in ultra heat sink + large cooling fans, efficient heat exchange to ensure continuous stable operation

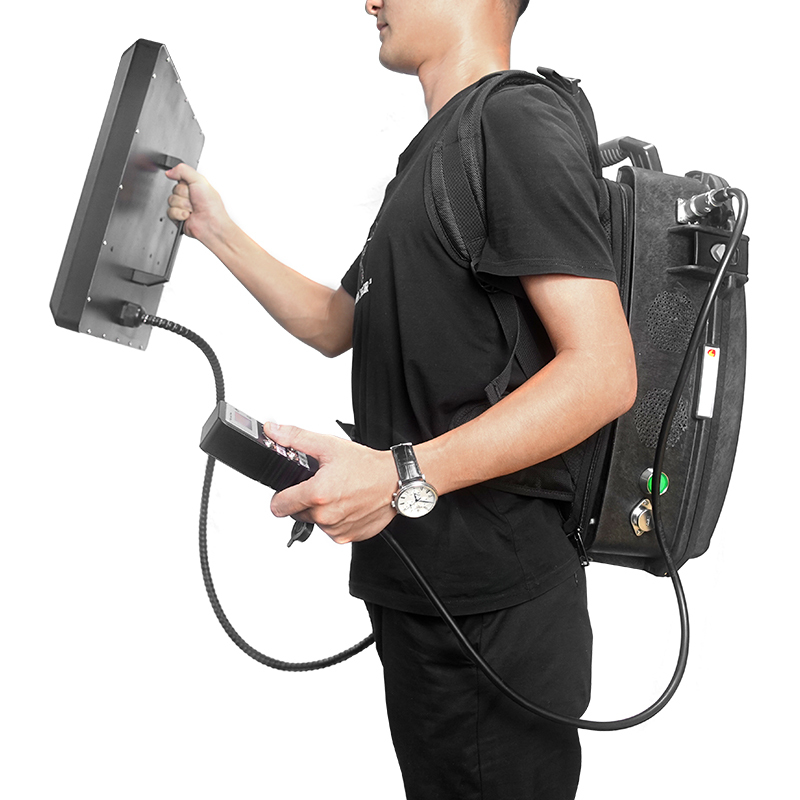

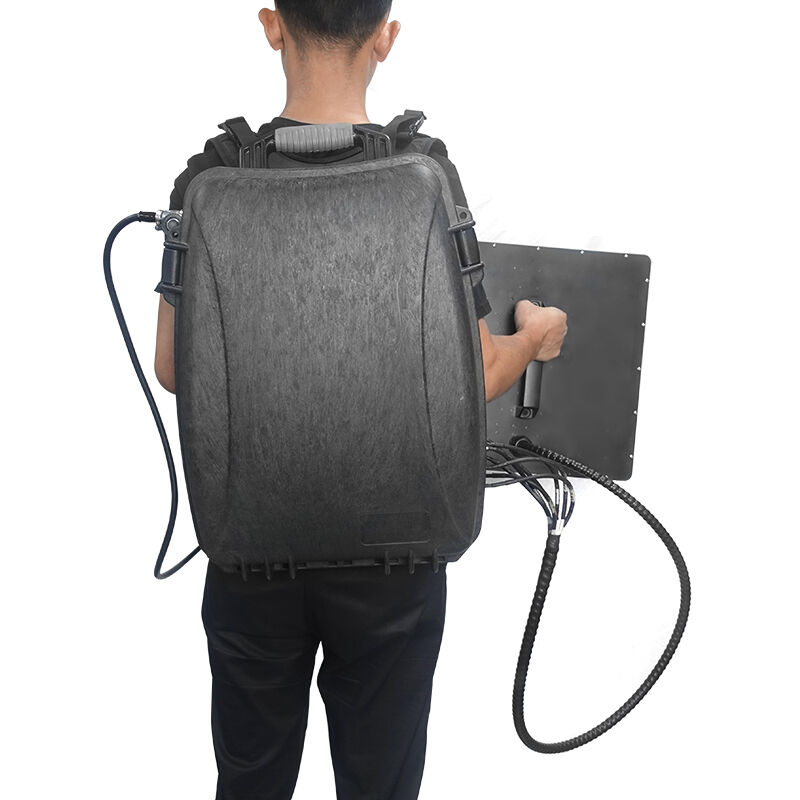

✅ Portable & Rechargeable - Backpack style for easy movement (16.8kg), 24V 30A built-in lithium battery (1h working time), support AC/DC dual charging

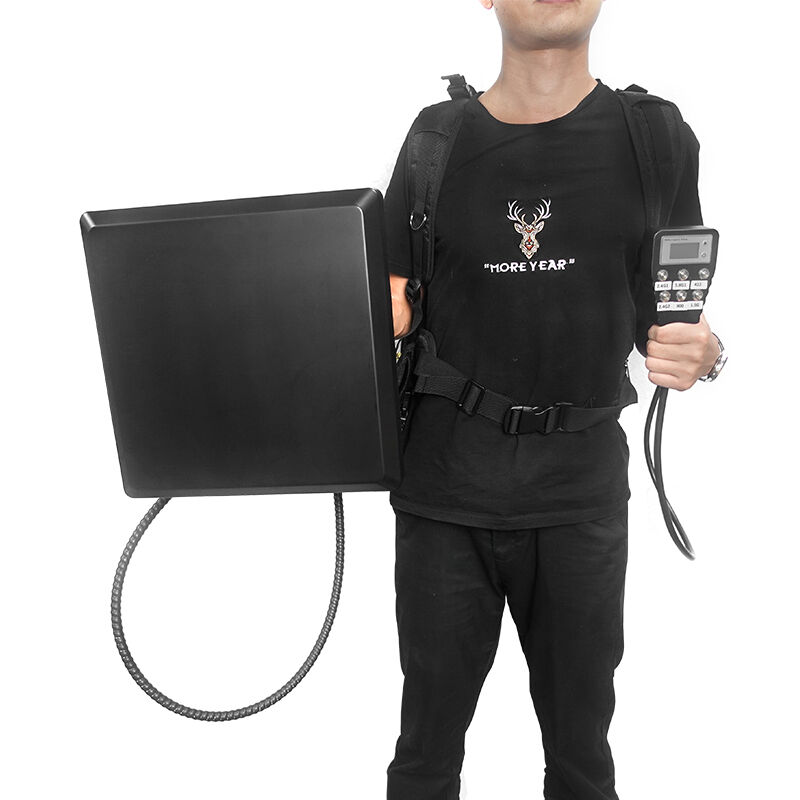

✅ Easy One-Click Operation - Numbered antenna connection, LCD power display, remote control with separate channel buttons, simple to operate for all users

Key Specifications

Product Type	Back pack drone jammer
Jamming Range	1000-1500 meter radius (OMNI antenna) 1500-1500 meter range (Panel antenna) (according to the real environment )
Working Channels	GPSL1: 1560-1620 MHz, 30W GPSL2: 1170-1280GHz, 30W WiFi 2.4G: 2400-2485 MHz, 100W WiFi 5.8G: 5725-5850 MHz, 50W 5.2G: 5150-5350 MHz, 50W 900: 920-960MHz, 30W Total 6 channel
Total Output Power	290W

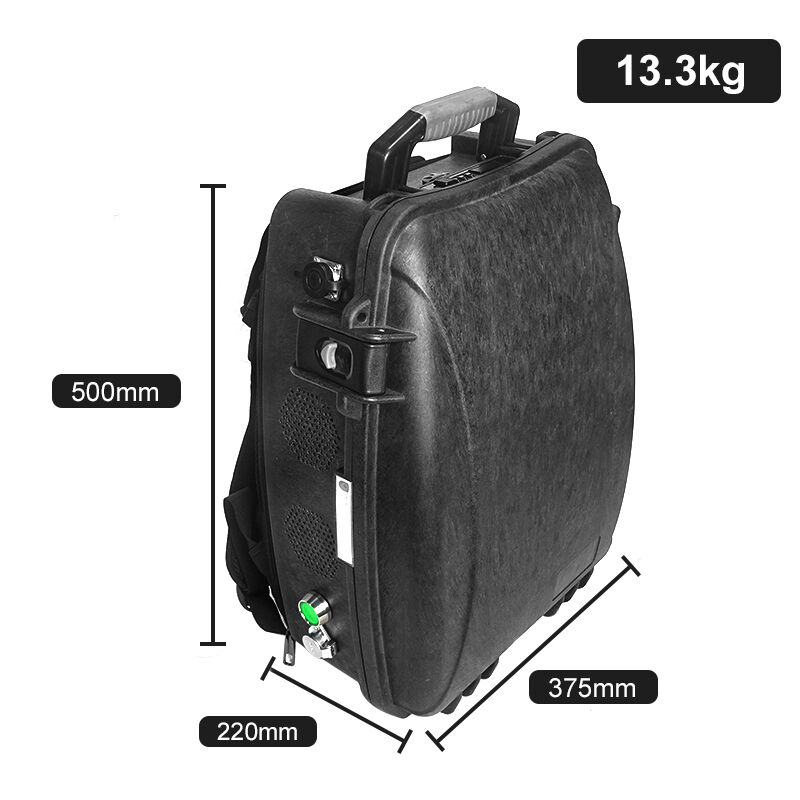

Body Size	493519 CM
Body Weight	16.8 kg

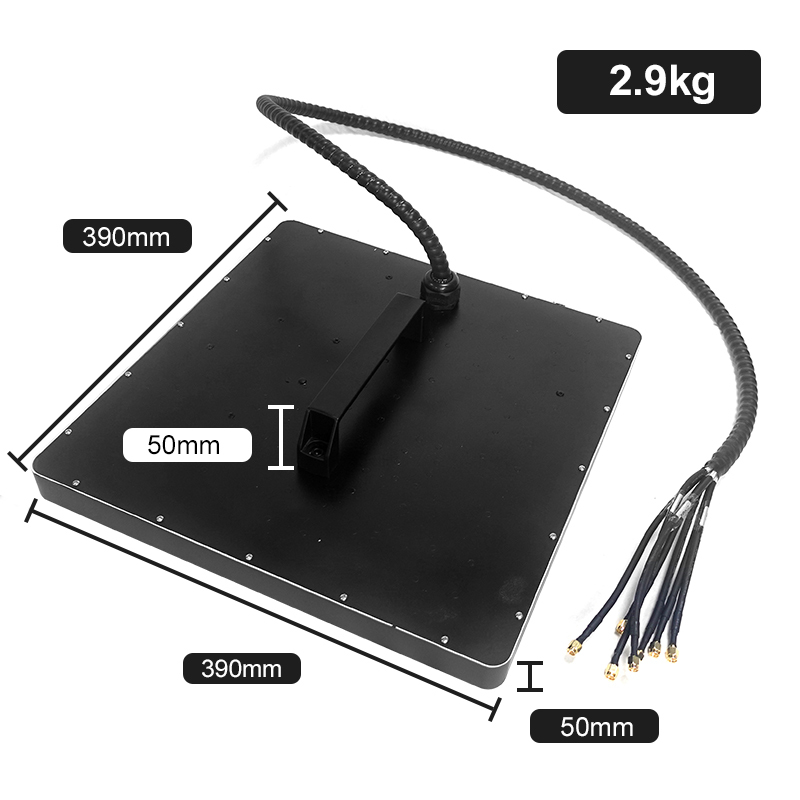

Outer Antenna	High gain 16dBi Panel directional Antenna
Working Temperature	-20℃~75℃
Working Humidity	35~95%
Power Consumption	< 900W
Power Input 1	AC100V~240V
Power Input 2	DC24V
Built-in Battery	DC24V 30A
Battery Lasting Time	1Hour

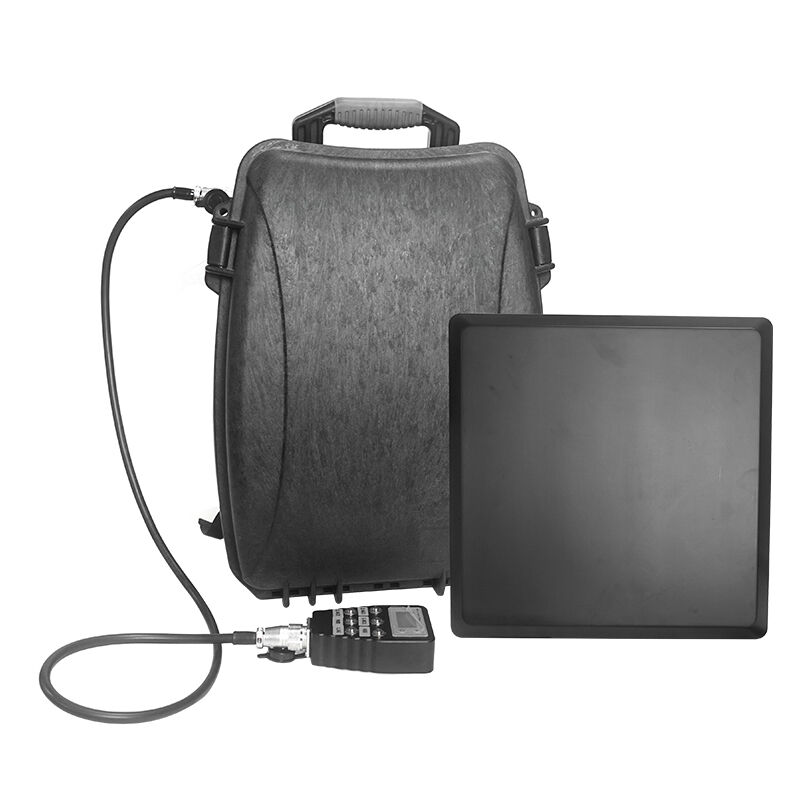

Packing List

1pcs*Back pack signal jammer

6pcs*High gain OMNI directional antennas

1pcs*Panel Antenna

1pcs*AC Power Charger

1pcs*DC Power Charger

TX-BF05 Security Anti-Drone Jammer | Backpack Style 1000-2000M Long Range Drone Signal Jammer with Dual Charging 0

How to Operate

* Please connect the antenna to the jammer by the number

(or it will be short wire if the number is not connected accordingly)

* Please full charge the built-in battery before use by AC or DC wire

* Check to LCD screen to check the remaining power capacity

* Press the separate buttons on the remote control to start the intended jamming function

* The drone will be forced to return home or land slowly immediately in 3-5 second in the effective area 1000-1500 meter radius (depends on real environment )

After-Sales Service

* User Instruction: we can offer online details photo illustration and video;local instruction is also available but with extra cost

* Online technical support:our professional engineers will assist customers with technical problems

* After sales service:our company will perform the agreed responsibility and duty during the warranty period

* Fast reply of Customer feedback and questions

* All product enjoy 1 year warranty and Life time maintenance service
