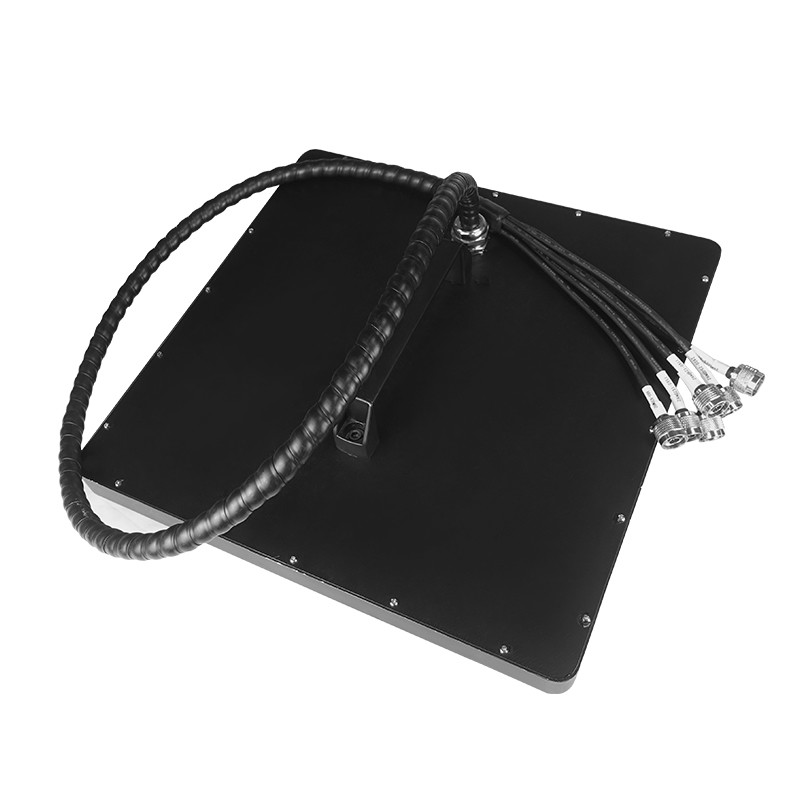

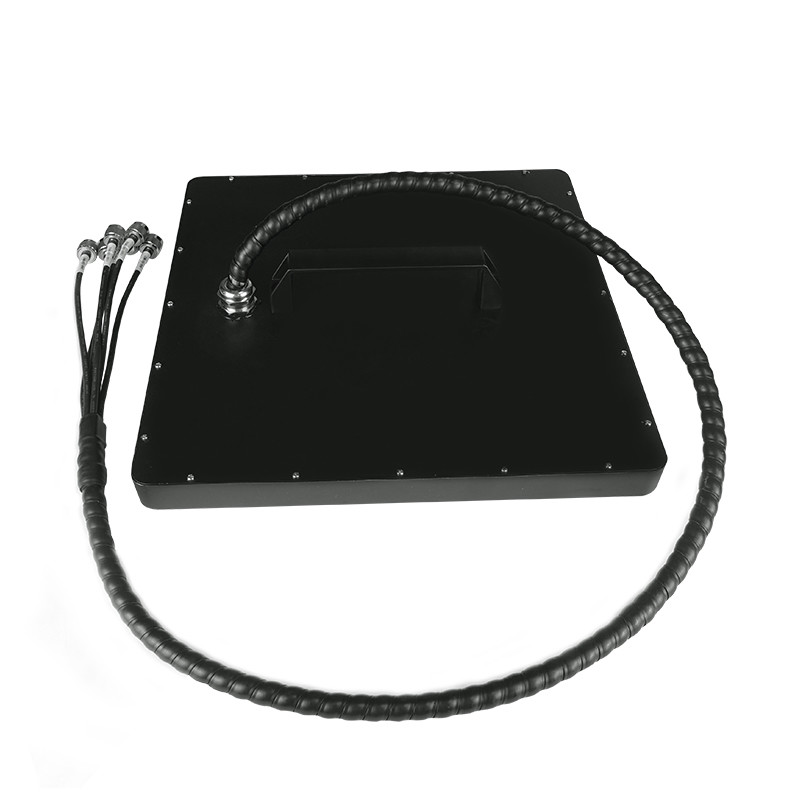

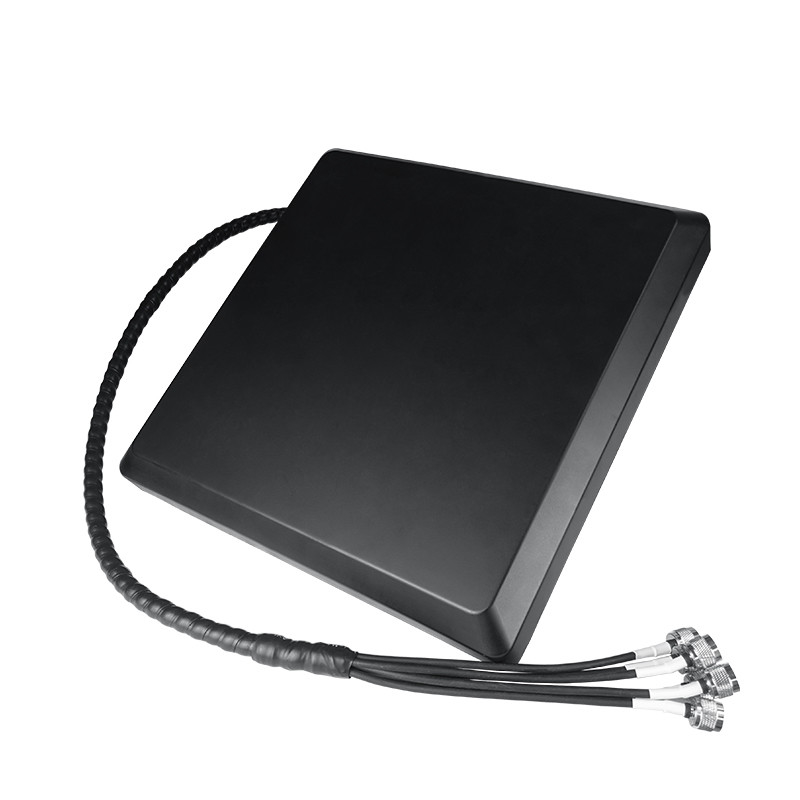

Long distance 6channel 8 channel Portable flat directional antenna for drone FPV
1. Product Introduction

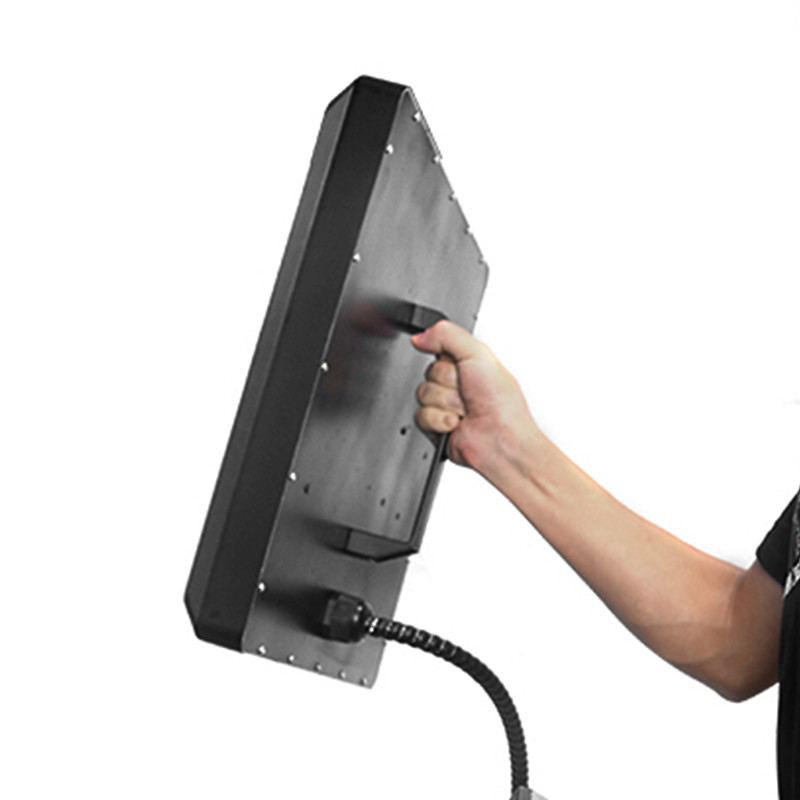

6 channel band panel directional antenna is special designed for countermeasures drone FPV equipment .6 channel can customized different frequency band from 100-6000MHz.When it operated ,it can highly efficient jamming the distance 1-1.5km drone .When the drone image cut down ,it could be Returned back.The handle design on the top also provides convenience for users. Using this antenna can protect our outdoor safety to the greatest extent.
2. Product Specification
| FrequencyRange |
428-438/860-930/1160-1280/1560-1620/2400-2500/5150-5350/5700-5900MHz |
|
| Gain(dBi) |
428-438MHz 7dbi
860-930MHz 8dbi
1160-1280MHz 12dbi
1560-1620MHz 12dbi
2400-2500MHz 14.5dbi
5150-5350MHz 17dbi
5700-5900MHz 17.5dbi
|
| VSWR |
≤2 |
| Polarization |
428-438MHz V
860-930MHz V
1160-1280MHz V
1560-1620MHz V
2400-2500MHz V
5150-5350MHz V
5700-5900MHz H
|
| Horizontal Beamwidth(0º) |
428-438MHz 65±10º
860-930MHz 65±10º
1160-1280MHz 65±10º
1560-1620MHz 65±10º
2400-2500MHz 35±5º
5150-5350MHz 22±3º
5700-5900MHz 22±3º
|
| Vertical Beamwidth(0º) |
428-438MHz 65±10º
860-930MHz 65±10º
1160-1280MHz 35±10º
1560-1620MHz 35±10º
2400-2500MHz 35±5º
5150-5350MHz 32±3º
5700-5900MHz 32±3º
|
| Front-to-back ratio(dB) |
≥20 |
| Electrical lower inclination(0º) |
0º |
| Input Impedance(Ω) |
50Ω |
| Maximum input power(W) |
50W |
| Inpur connector type |
1500mm7*N-J |
| Lightning Protection |
DC Ground |
| █Mechanical Specifications |

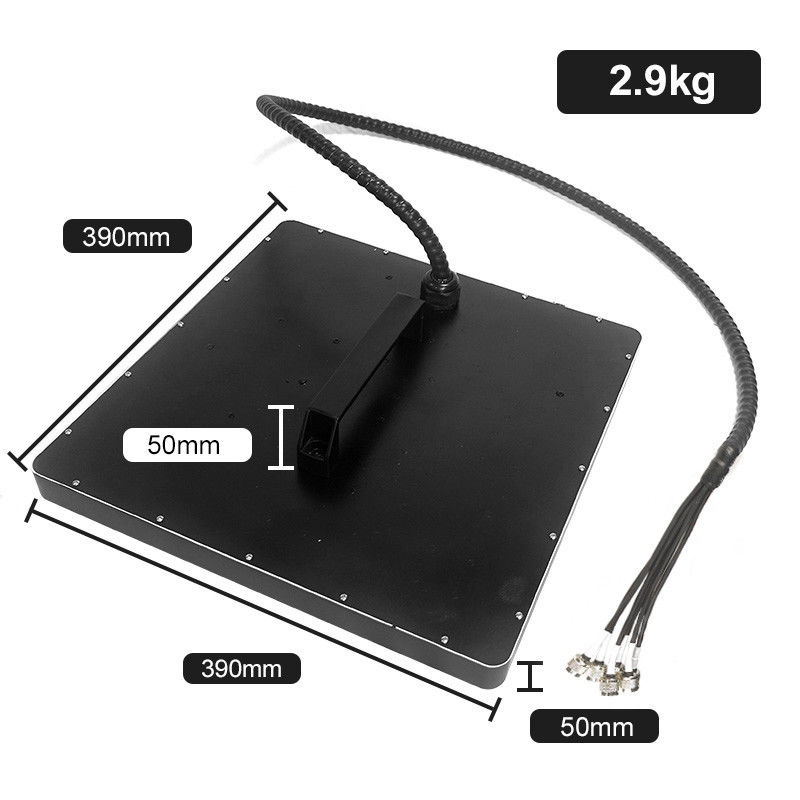

| Dimensionsmm(Height/Width/Depth) |
390*390*50mm |
| Packing size(mm) |
430*430*150mm |
| Antenna weight(kg) |
3.4kg |
| Rated Wind Velocity(m/s) |
60m/s |
| Operational Humidity(％) |
10- 95 |
| Radome Color |
Black |
| Radome material |
ABS |
| Operating temperature(ºC) |
-30～70 º |
| Installution Method |
hand held |
| Mounting hardware(mm) |
￠30～￠75 |
| Mechanical tilt(º) |
0-10º |
3. Feature
*100% factory OEM that quailty can be guaranteed
*Light weight easy to carry and portable to install
*High gain about 7-18dbi and also support high power device
*Long distance jamming 1-1.5km
*It is portable adjust jamming directional
*Frequncy 433 MHz 868 MHz 915MHz 2.4G 5.8G
4. Application
Air strike support:Use the weapons and equipment carried by counter-drones to launch air strikes on enemy drones and weaken their combat capabilities.
Border patrol and surveillance:Utilize anti-drone systems to patrol and monitor border areas, and promptly detect and deal with enemy drone intrusions.
Urban security and police enforcement:Deploy anti-drone systems in key and sensitive areas of the city to monitor abnormal flight activities and assist the police in handling emergencies.
Important event security:In important meetings, large-scale events and other places, anti-drone technology is used to prevent drones from illegally invading and disrupting the order of activities.

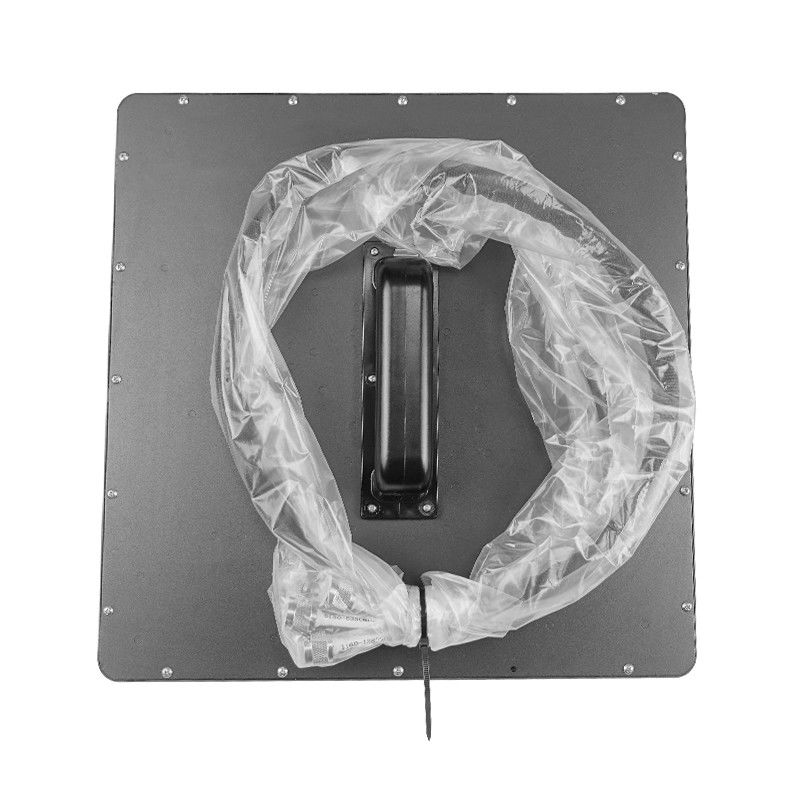

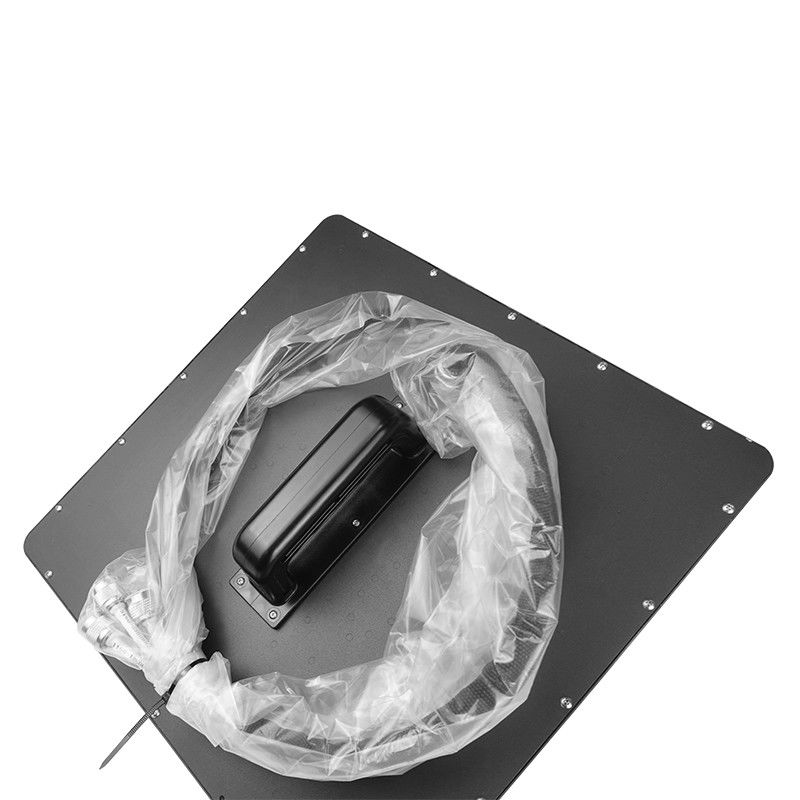

5.Packing &shipment
Customer service
1.User Instruction
we can offer online details photo illustration and video;
local instruction is also available but with extra cost
2.Online technical support: our professional engineers will assist customers with technical problems
3.After sales service:
our company will perform the agreed responsibility and duty during the warranty period
4.Free training lesson and daily maintenance
5. Fast reply of customer feedback and question
6. All product enjoy the 1 year warranty and Life time maintenance service
