Detail Information

Frequency:	20611721mm	Power:	50W 100W
Product Name:	Broad Band Power Amplifier	Type:	RF Wireless Signal Amplifier
Weight:	1366g	Connector:	F/ Female
Material:	GaN
Highlight:	Portable Cell Phone Jammer , Lithium Battery Cell Phone Jammer , SGS Cell Phone Jammer

Product Description

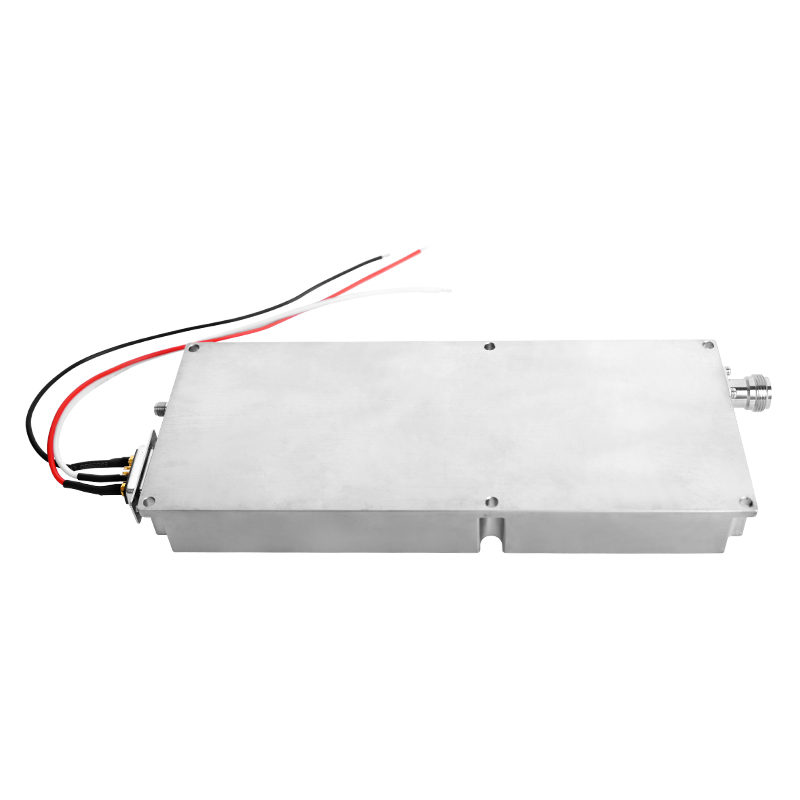

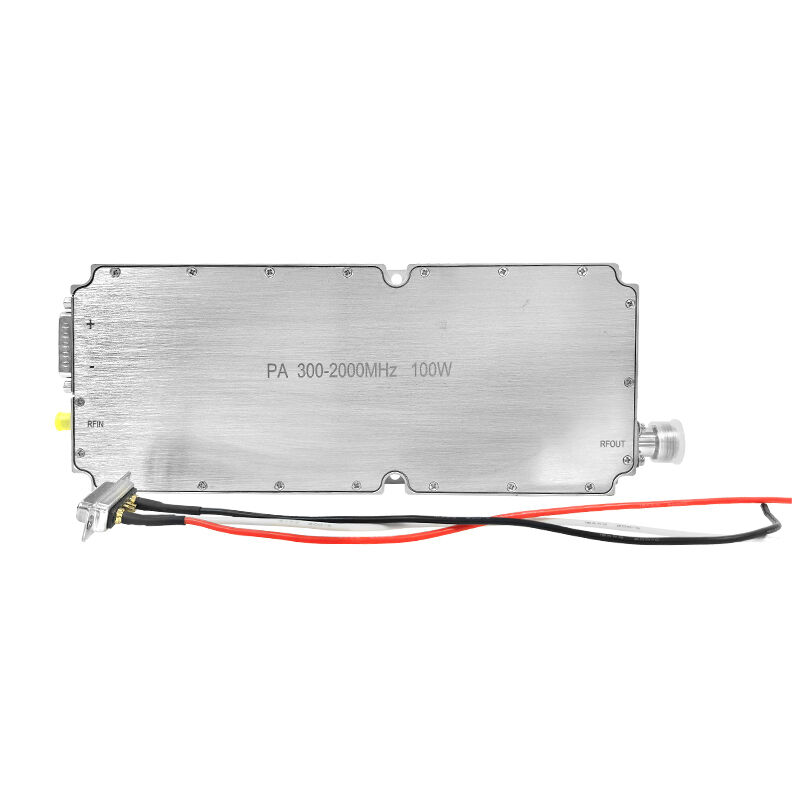

300MHz-2700MHz RF BroadbandHigh PowerAmplifier GaN solution

The300-2700mhz power amplifier -A is a highly reliable amplifier. It uses ultra -wideband GaNtransistors and canoutput 100 watts of power in the frequency range of 300MHz to 2700 MHz while maintaining relevantRF performance. Different from traditional continuous -wave CW amplifiers, this amplifier can amplifyspread -spectrum signals with an instantaneous bandwidth of up to 200 MHz.

itcanproduceexcellentinterferenceeffectsonremotecontrol,datatransmission,andpositioningsignals.Therefore,this amplifier is particularly suitable for use in wireless communication interference systems in theU,L,and S bands,including but not limited to mobile phones,radiio stations,and drones.

Product Introduction

Utilizingthird-generationGaNtransistors

Ultra-wideworkingbandwidthandinstantbandwidth

Excellentreliability

Featurestemperaturedetection,standing-wave

detection,and protection functions

No.	Item	Data	Unit
1	Frequency	300-2000	MHz
2	Test voltage	28-32	V
3	Current	6.5	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Input stability	0-10	dB
8	Connector	F/ Female
9	Output connector VSWR	≤1.30 (No power and VNA test)
10	Power supply wire	Red+Black+Enable wire
11	Enable Control	High ON Low Off
12	Out shell Size	20611721	mm
13	Mount hole	199*110	mm
14	Weight	1366	g
15	Work Temperature	-40~+65	℃
16	Out shell material	Aluminum
17	Vibration need	Car load OK

Application

* It can be used in places where the use of drone is prohibited, such as concert,center city prisons, churches, etc.;

* Can be used at home to prevent children from being addicted to the Internet;

* Can help police prevent criminal information from being passed between criminals at crime scenes;

* Can be used for jamming the communication signal like 2ghz 3ghz 5ghz

More Photo

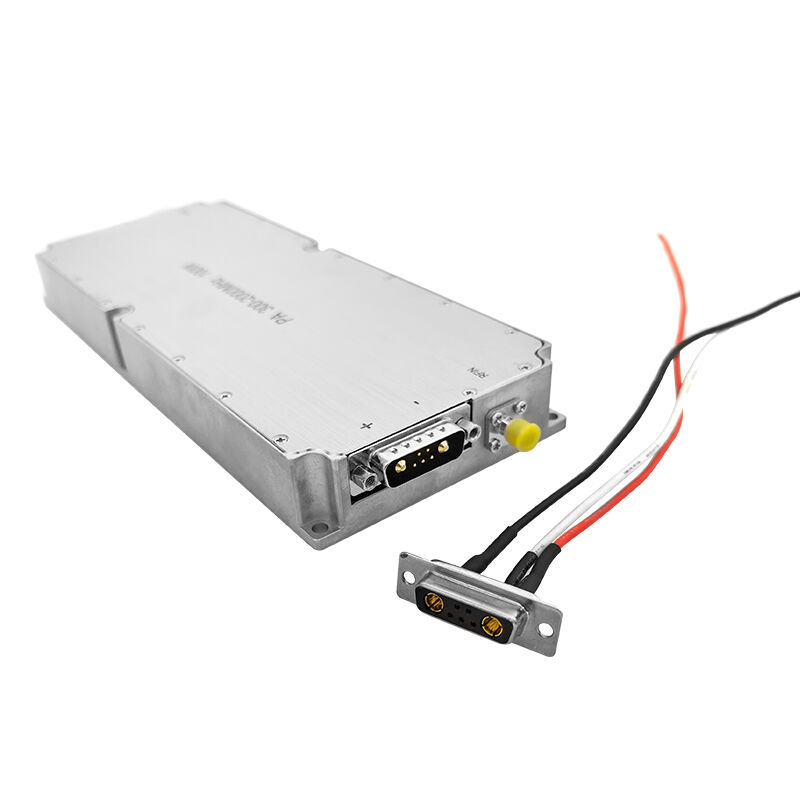

300MHz-2700MHz RF BroadbandHigh PowerAmplifier GaN solution 0

Tag:

Place of Origin:	Shenzhen,China
Brand Name:	TeXin
Certification:	ISO9001,SGS
Model Number:	TX-N10

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	K=K 5 layer paper carton
Delivery Time:	1-3 days
Payment Terms:	L/C, D/A, D/P, T/T,
Supply Ability:	10000pcs per month
