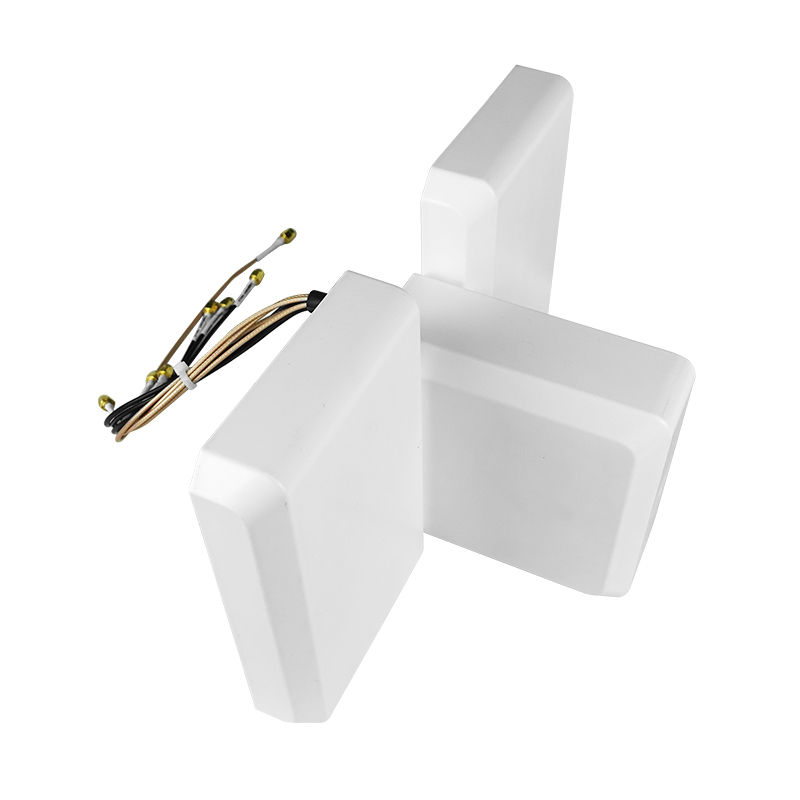

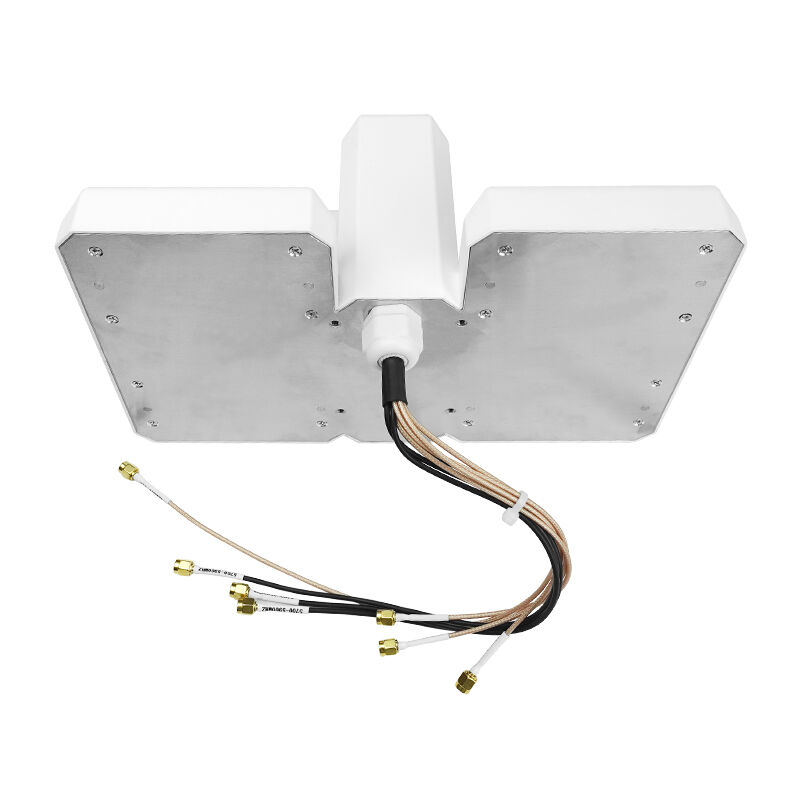

Butter fly Shaped 15dbi multiple band directionl antenna for signal jammer shield
This butterfly shaped 15dbi multiple directional antenna can transmit jamming signal as same time with different band . This antenna is perfect for shield drone signal the800mhz 900mhz 1.2ghz 2.4ghz .And other frequency band you need .
The butterflydirectional antenna is apecial use in signal jammer device and communication device ,it can highgain ouput to the object with 5-15dbi .It features long transmission distance, low interference, and high efficiency.
Specification
| █Electrical Specifications |
| FrequencyRange |
860-930/1160-1280/1560-1620/2400-2500/5150-5350/5700-5900MHz |
| Gain(dBi) |
860-930MHz 5dbi
1160-1280MHz 8dbi
1560-1620MHZ 8dbi
2400-2500MHz 12dbi
5150-5350MHz 12dbi
5700-5900MHz 15dbi
|
| VSWR |
≤2 |
| Polarization |
860-930MHz V
1160-1280MHz V
1560-1620MHZ V
2400-2500MHz V
5150-5350MHz H
5700-5900MHz V
|
| Horizontal Beamwidth(0º) |
65±5º |
| Vertical Beamwidth(0º) |
860-930MHz 65±5º
1160-1280MHz 65±5º
1560-1620MHZ 65±5º
2400-2500MHz 45±5º
5150-5350MHz 28±5º
5700-5900MHz 28±5º
|
| Front-to-back ratio(dB) |
≥18 |
| Electrical lower inclination(0º) |
0º |
| Input Impedance(Ω) |
50Ω |
| Maximum input power(W) |
50W |
| Inpur connector type |
0866*SMS-J |
| Lightning Protection |
DC Ground |
| █Mechanical Specifications |
| Dimensionsmm(Height/Width/Depth) |
300*180*132mm |
| Packing size(mm) |
Based on quantity |
| Antenna weight(kg) |
0.35kg |
| Operational Humidity(％) |
10- 95 |
| Radome Color |
white |
| Operating temperature(ºC) |
-30～70 º |
| Installution Method |
机台安装 |
Product Feature
* 6 Channel customized even 1 pcs
* High output power: total output 50W
* High gain antenna 5-15dBi for effective jamming transmission
* High integration RF power amplifier for concerntrate jamming effect
* Directional transmit high efficient to operate
* Durable plastic out shell be waterproof, heat resistant, anti - broken
Gurantee
1 year warranty and life time technical support
Multiple Application
Communication Base Stations: Can be used as sector antennas in 4G/5G base stations to enhance signal coverage in specific directions, improving signal transmission efficiency and capacity.
Long-Distance Signal Transmission: For network coverage in rural or remote areas, it can act as a repeater antenna to transmit base station signals over long distances, solving signal blind spots.
Home WiFi Signal Enhancement: For signal dead zones in the home, installing directional high-gain antennas can enhance WiFi signals in specific directions, improving the network experience.
Long-Distance Surveillance Transmission: When cameras are far from the router, directional high-gain antennas can achieve stable signal transmission, ensuring clear and smooth monitoring footage.
