360 Degree 1000 Meter Radius Drone Signal Jammer Anti Drone System

Basic Information
Place of Origin: China
Brand Name: TeXin
Certification: CE
Model Number: TX-JZ02
Minimum Order Quantity: 1 piece
Price: negotiated
Packaging Details: Fumigation Wooden Case
Delivery Time: 1-3 days
Payment Terms: T/T,Paypal,L/C,D/A,D/P,Western Union, Etc.
Supply Ability: 500pcs per month
Detail Information
Type: Drone Signal Jammer Size: 50*45*25cm
Weight: 32kg (not Including Antenna) Output Power: 240W
Power Consumption: < 530 W AC Power Supply: 220-240V
Work Temperature: -20 ° ~ +75 ° Jam Range: About 500-1000 Meter Radius
Monitor: Computer Monitor Available Waterproof: IP65 Level
Work Time: 24hours 7 Days Non Stop Out Shell: Die Cast Aluminum Alloy
High Light:

360 Degree Anti Drone System

,

1000 Meter Drone Signal Jammer

,

1000 meter Radius Anti Drone System


Product Description

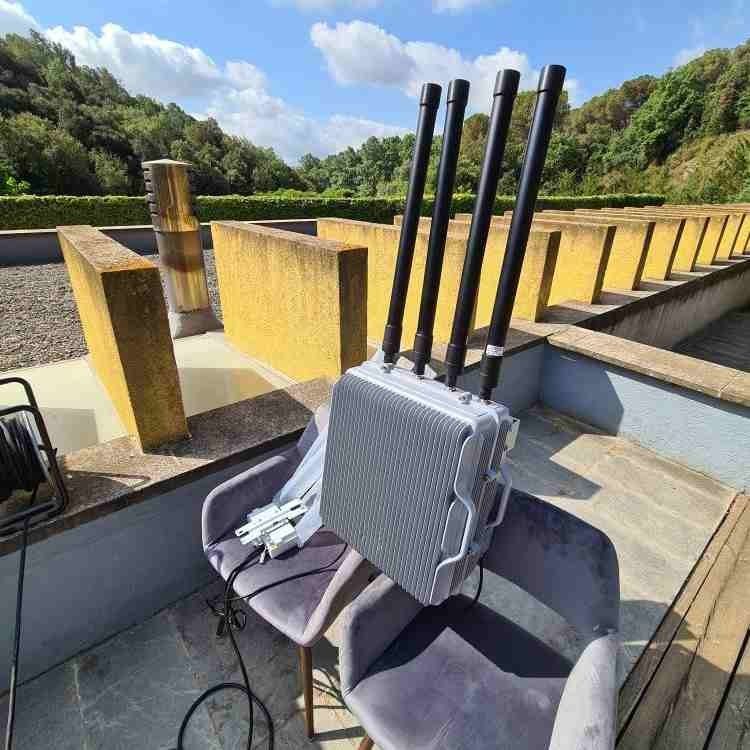

360 Degree 1000 meter Radius Drone Signal Jammer Anti Drone System







* This drone signal jammer can protect about 1000 meter radius area from drone invading, no blind corner



* The multiple devices from different positions can be monitored at same computer if they are on same IP address



* Working principle: it works by interfering the remote control signal between the drone and its ground control







Product Function

* When you install the drone jammer in a position, the drone can not invade into this area in effective range

  about 1000 meter radius. As below photo.



* And the drone will be force to return home or land slowly

 (depends on the drone controller setting) once it try to enter the effective jamming area.



360 Degree 1000 Meter Radius Drone Signal Jammer Anti Drone System 0











Product Feature

* Outdoor use IP65 level waterproof

* Shock proof, Heat resistant, Thunder protection

* Long range protection: 500-1000 meter radius(depends on real environment)

   * High integration single modulation for easy maintenance

   * High gain 360 degree coverage fiberglass antenna

   * Computer monitoring for multiple device at same time

   * Target: most commercial drones in market



Product Specification

Jamming Frequency
&
Output Power

Band1: Wi-Fi 2.4GHz : 2400-2485 MHz, Output power 120W

Band2: Wi-Fi 2.4GHz : 2400-2485MHz, Output power 30W

Band3: Wi-Fi 5.8GHz : 5725-5850 MHz,Output power 50W

Band4: Wi-Fi 5.8GHz : 5725-5850 MHz,Output power 30W

Other customized options includes the GPS, Mobile Phone, VHF,UHF, Lojack, etc.

Jamming Principle Remote Control Signal Interference
Jamming Range 500-1000 meter radius, depends on real environment
Working Time 24 hours 7 day continuously
Water&Dust Proof Level IP65 level
Out shell Material Die Cast Aluminum Alloy
Product Size 50*45*25cm
Product Weight 32kg (not including antenna)
Output Power 230 W
Power consumption < 530 W
Power supply AC Adapter 220-240V
Working temperature -20 ° ~ +75 °
Relative humidity 35~95%

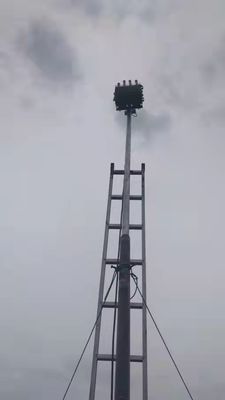

Installation Wall Mount or Pole Holding
Suggest Installation Height 3-15meter height, the higher the better jamming effect



360 Degree 1000 Meter Radius Drone Signal Jammer Anti Drone System 1



360 Degree 1000 Meter Radius Drone Signal Jammer Anti Drone System 2



360 Degree 1000 Meter Radius Drone Signal Jammer Anti Drone System 3



OMNI Directional Antenna 360 Degree Radiation Pattern



360 Degree 1000 Meter Radius Drone Signal Jammer Anti Drone System 4






Product Application

Military, Prison, Government, Farm, Chemical factory, Oil Depot, the places that needs protect themself

from drone photographing and invading

More details application place is as below :

> Government: Prison, Military, Police, Border Control, Government Buildings, Detention Centre, Drug

   rehabilitation centers, Other Law enforcement
> Critical Infrastructure: Chemical Industry,Oil Depot,Oil Refinery, Gas Station Power generate plants

   Nuclear power plants,Water control center, Reservoir

> Farm, Fish Pond, Dairy Farm, etc.
> Mass Event: Sports Stadium&Events, Important Meetings, Entertainment Performance

> Museums, Campus,Theatre,Church,Hospital

> Scientific research center,Security Service,Test Facilities, etc.





Package List

2 packages

* Fumigation Wooden Case for jammer body (with pearl foam inside)

* K=K 5 layer kraft paper carton for antenna

(also include the waterproof tape, AC adapter, thunder protection box)



                      360 Degree 1000 Meter Radius Drone Signal Jammer Anti Drone System 5



Customer Service

* One year warranty and Life time technical support

* Direct discussion with the mechanical and software engineer team

* Compatible with your current security system

* We can offer the installation photo, video or online training free of charg

* Local installation service

* We can offer the upgrade service for hardware and software
