PCB antenna Multiband seven Bands RF GPS Drone Directional Antenna High Gain 433MHz/900MHz/1.2G/1.5G/2.4G/5.2G/5.8G

Basic Information

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	SGS,ISO9001,CE,FCC,ROHS
Model Number:	TXWYJH

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	Kraft paper box with protection foam
Delivery Time:	In 2 day
Payment Terms:	T/T,Paypal, Etc.
Supply Ability:	100,000pcs/month

Get Best Price Contact Now

Detail Information

Front-to-back Ratio:	≥18 DB	Input Impedance:	50Ω
Maximum Input:	50W	Input Connector Type:	086 Cable 7pcs*SMS-J
Dimension(LWH):	28497.560mm	Antenna Weight(kg):	0.35kg
Work Humidity(％):	10%- 95%	Surface Color:	Black & Grey Color
Work Temperature(ºC):	-40～65 ºC
Highlight:	10 Channel Wifi Signal Jammer , VHF UHF Signal Jamming Device

Product Description

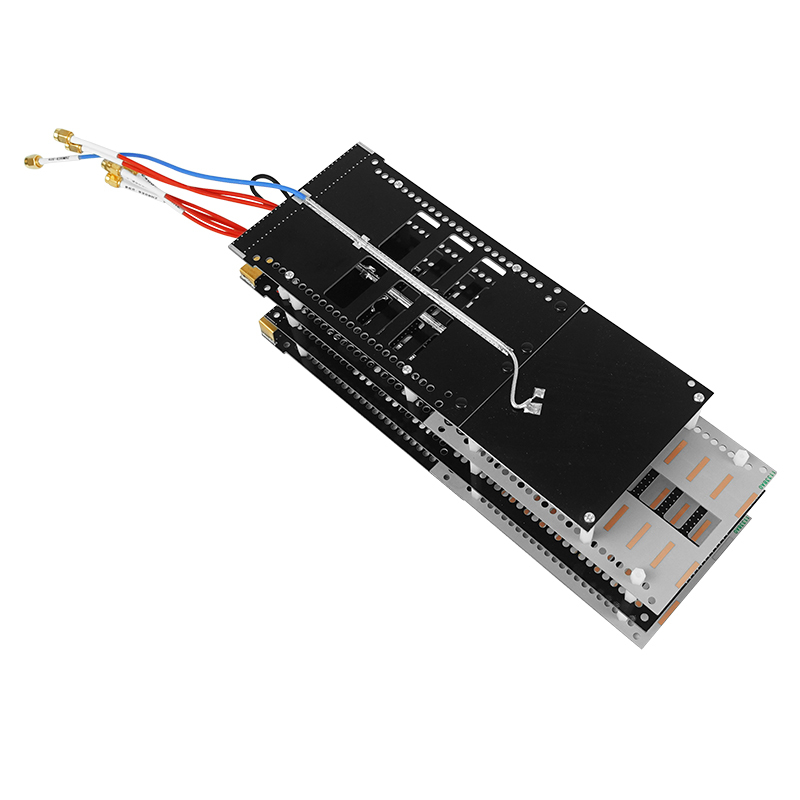

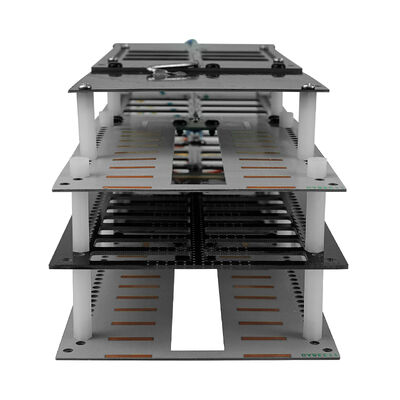

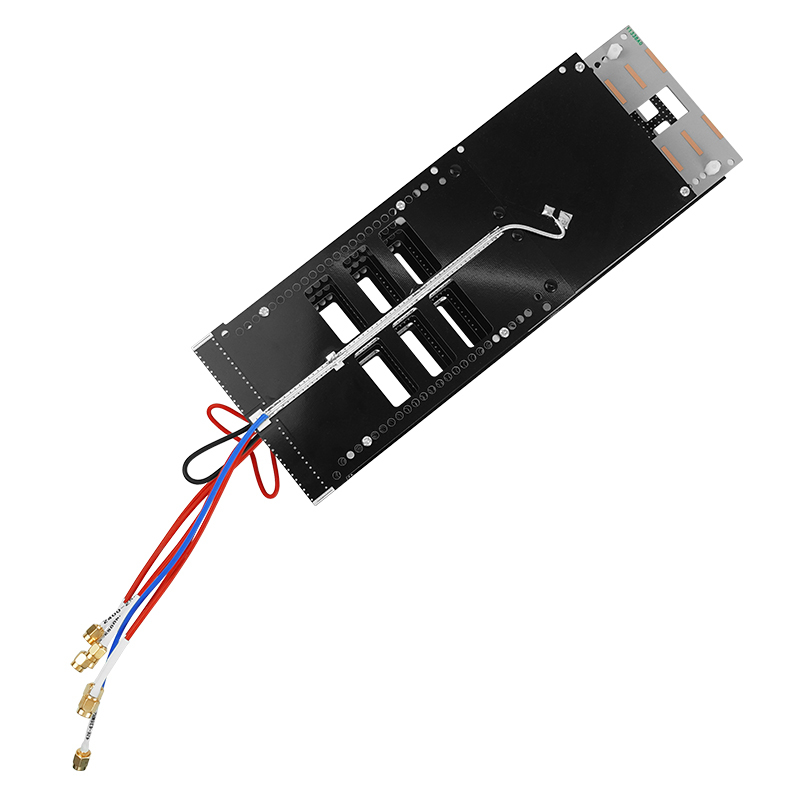

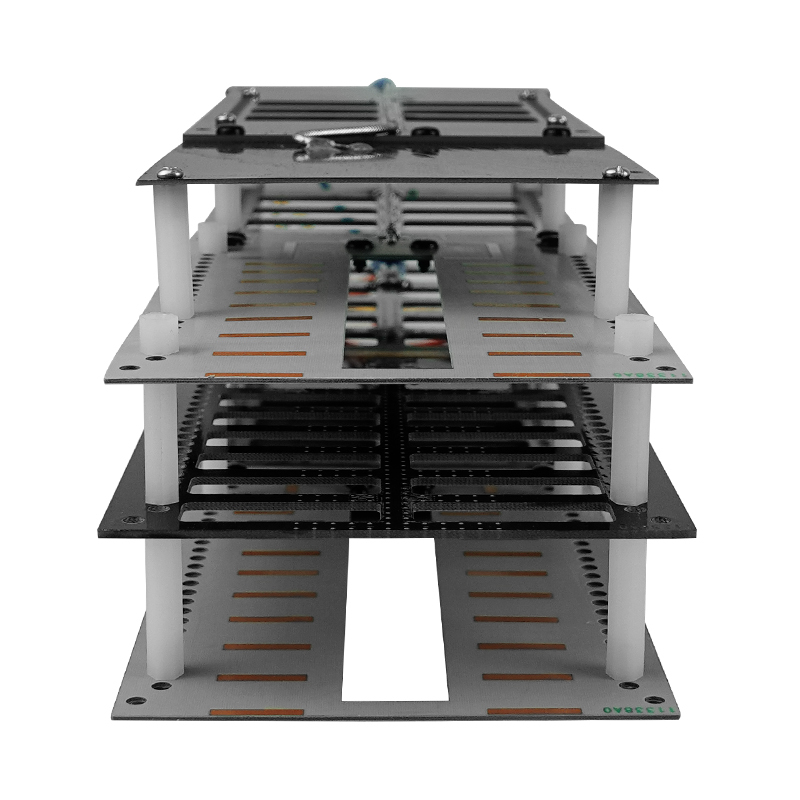

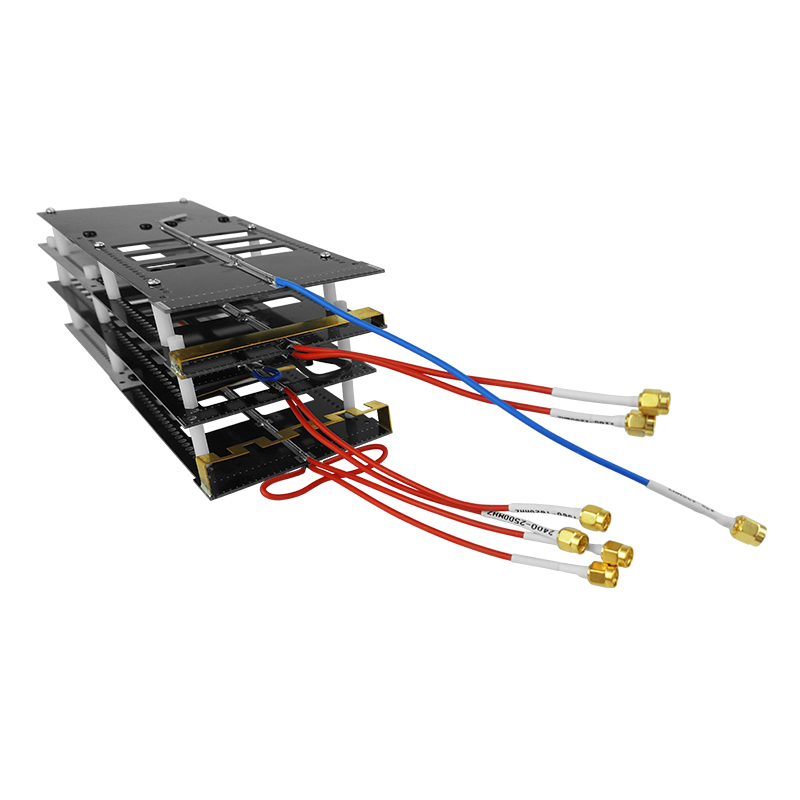

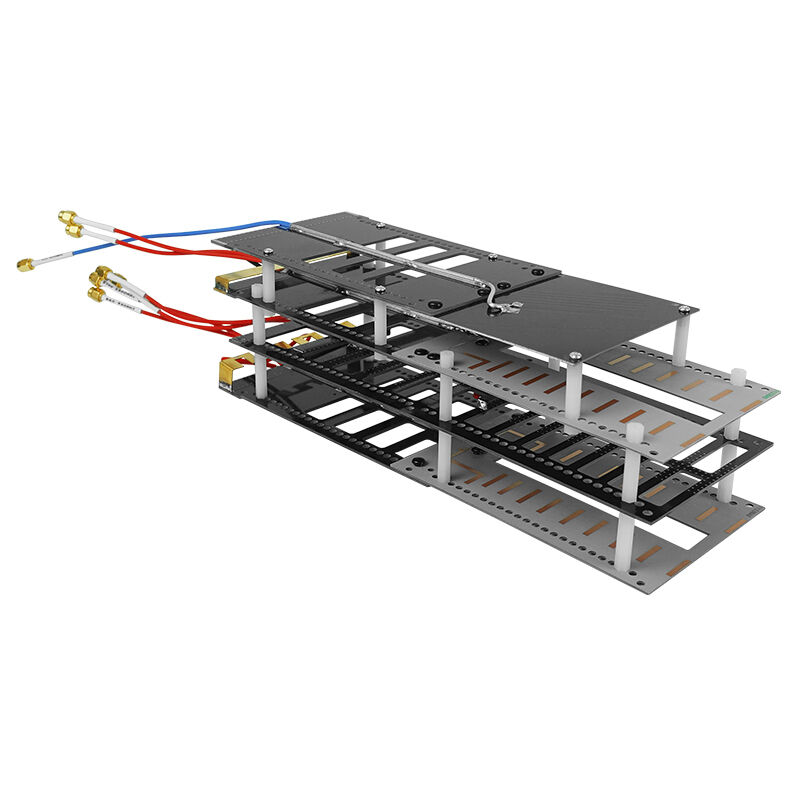

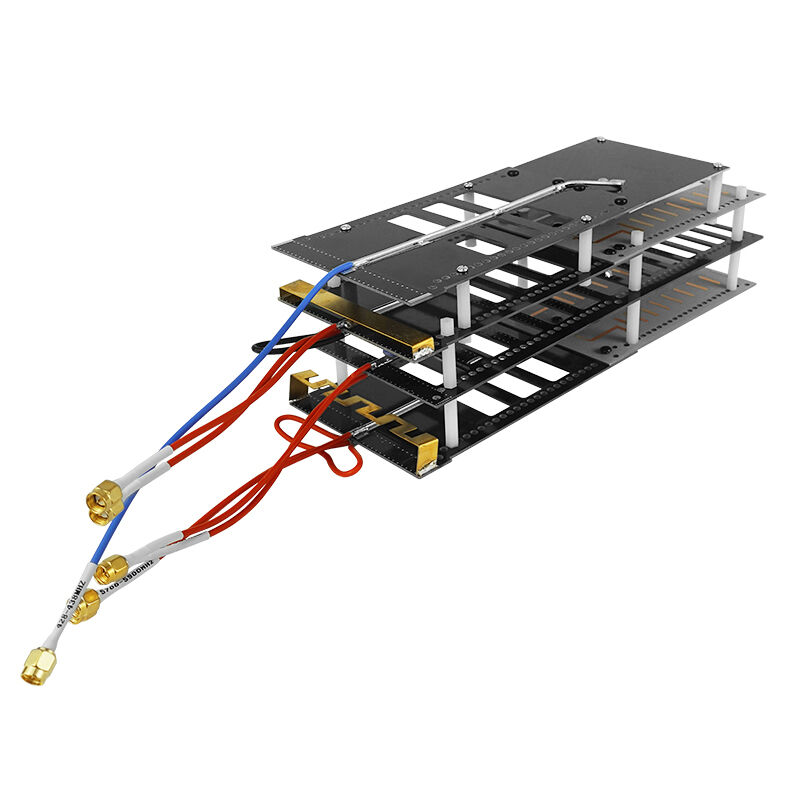

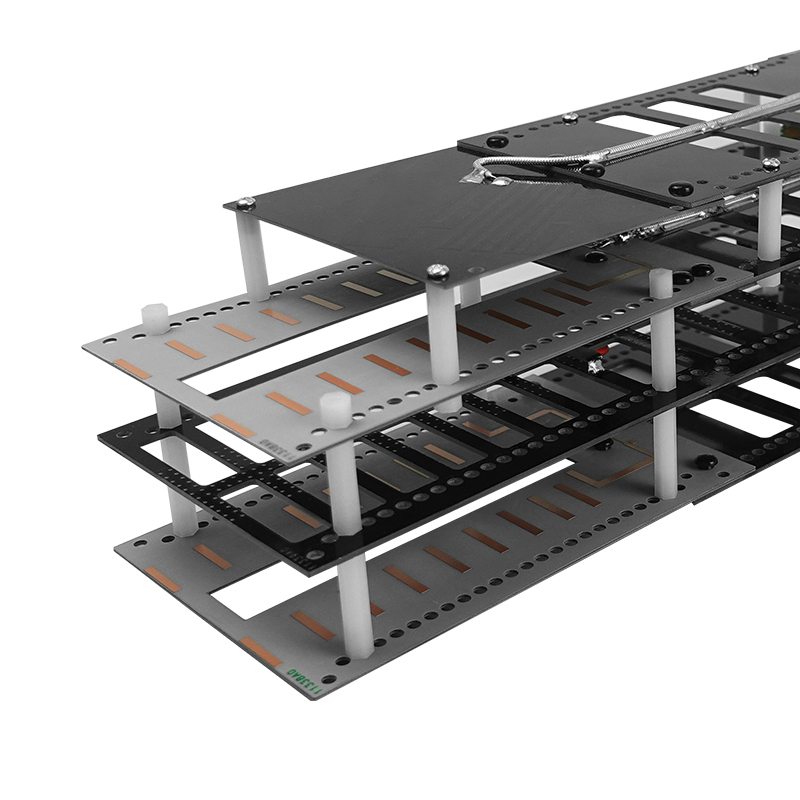

High Gain 7 band Combination PCB antenna

Product Description

This PCB antenna is a combination of multiple band with the minimum

Mutual-interference, the optimized transmission angle and the higher gain；

When connected to the power amplifier, it can high efficiently assist the power amplifierto transmit the boosting or jamming signal.

PCB antenna Multiband seven Bands RF GPS Drone Directional Antenna High Gain 433MHz/900MHz/1.2G/1.5G/2.4G/5.2G/5.8G 0

PCB antenna Multiband seven Bands RF GPS Drone Directional Antenna High Gain 433MHz/900MHz/1.2G/1.5G/2.4G/5.2G/5.8G 1

1. High efficiency, low loss

2. High gain performance

3. Seven-band synthesis technology : Supports seven different communication bands with wide coverage, including (2G, 3G, 4G, 5G)

4. high reliability and stability

1. avoiding the antenna to be hit by external force,

2. avoiding to use in high temperature or humid environment

3. avoiding to interfere with other electronic devices
