Wide band 50W 6GHz -18GHz RF PA power amplifier module wireless signal booster without VCO amplifier
Shen Zhen Texin electronics Co.,ltd focus on the RF radio area more than 10years ,our main products cover anti drone jammer module ,signal booster PA power amplifier module ,anti drone system ,and unique anti drone solution .We have own factory located in china ShenZhen ,all the drone signal block module and the anti drone device .
Product introduction:
This 50W wide band PA power amplifier module cover signal band 6GHz -18GHz ,Without VCO chip build in .It widely use in anti drone ,signal booster ,and electronic communication area .The input standard 0 dbm and the clients can operate it in 28V Voltage .The wide band power amplifier module has high efficient low comsuption wide range operating features .welcome to contact us.
Specifications :
| No. |
Item |
Data |
Unit |
| 1 |
Frequency |
6000-18000 |
MHz |
| 2 |
Test voltage |
28 |
V |
| 3 |
Current |
6.2 |
A |
| 4 |
Output |
50 |
W |
| 5 |
Gain |
47 |
dB |
| 6 |
Output stability |
1 |
dB |
| 7 |
Input stability |
0-10 |
dB |
| 8 |
Connector |
SMA-input N-output |
| 9 |
Output connector VSWR |
≤1.30 (No power and VNA test) |
| 10 |
Power supply wire |
Red+Black+Enable wire |
| 11 |
Enable Control |
High ON Low Off |
| 12 |
Out shell Size |
220*77*24 |
mm |
| 13 |
Mount hole |
220*77 |
mm |
| 14 |
Weight |
1000 |
g |
| 15 |
Work Temperature |
-40~+65 |
℃ |
| 16 |
Out shell material |
Aluminum |
| 17 |
Vibration need |
Car load OK |
Product Feature:
* High-power signal jammer 10W per channel, 10 channels, 100W in total
* Durable fiberglass high gain omnidirectional antenna
* Strong interference effect, long distance 5-50 meters radius (-75dBm open environment)
*Intelligent cooling system with built-in super thick 10.5mm heatsink, cooling fins, large fans and vents to suck in cold air and blow away hot air, ensuring 24/7 continuous work and long life of the machine
* Durable housing, waterproof, dustproof, corrosion-proof, shatter-proof, heat-resistant
* Original new IC chips and integrated circuits, strong power, stable output power performance
* Stable operation even in the case of large voltage fluctuations to achieve accurate voltage design
*Easy to install desktop, wall-mounted
Applications :
* College entrance examination, adult college entrance examination, self-study examination and various colleges and universities.
* Various large, medium and small conference rooms, concert halls, and theaters for party and government agencies, the military and enterprises.
* Detention centers, labor camps, large, medium and small prisons.
* Gas stations, oil depots, oil fields, gas stations and other flammable and explosive places

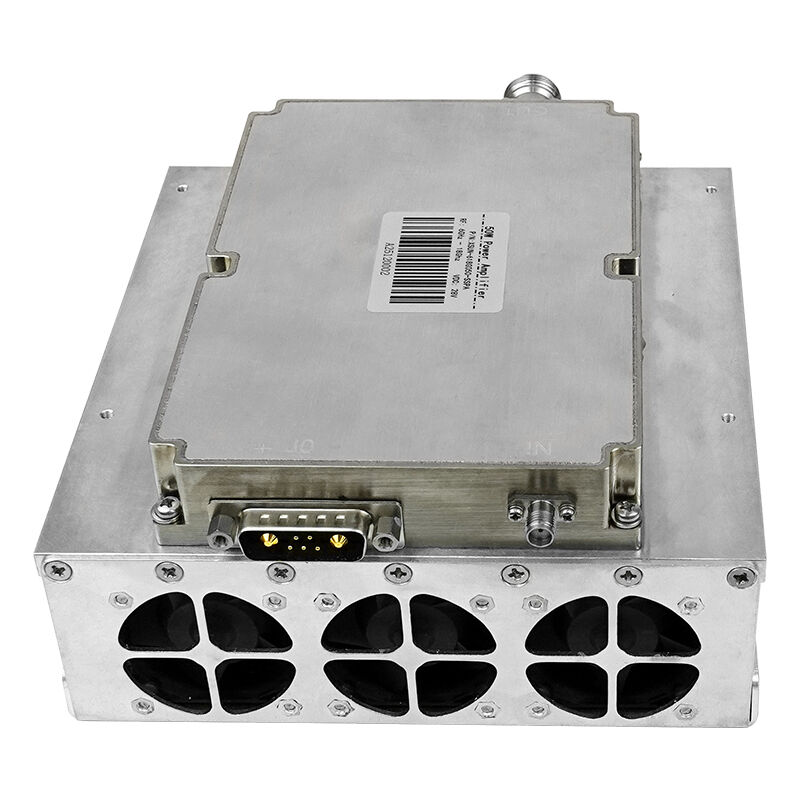

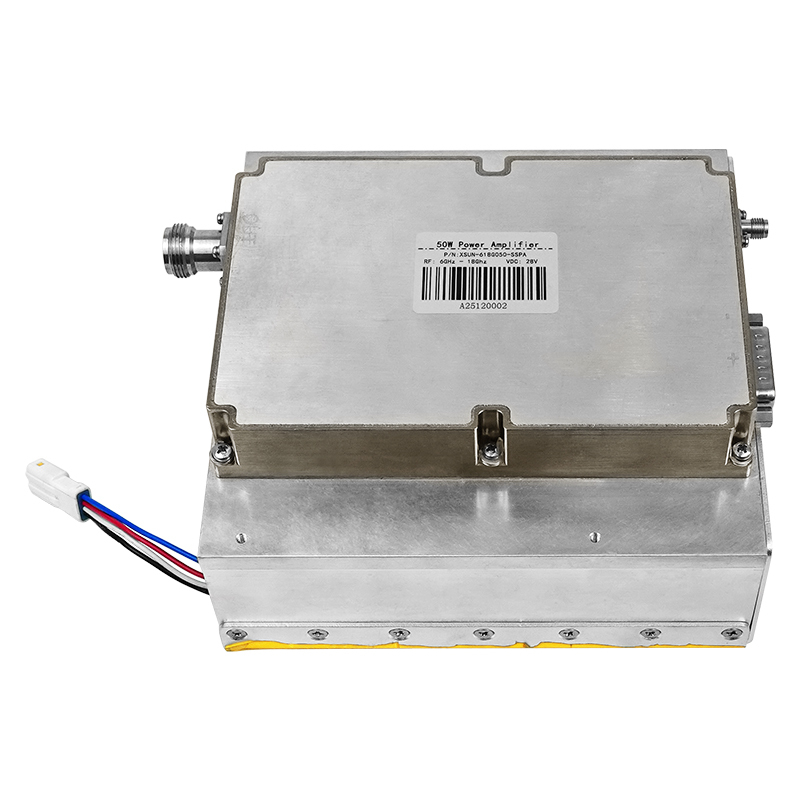

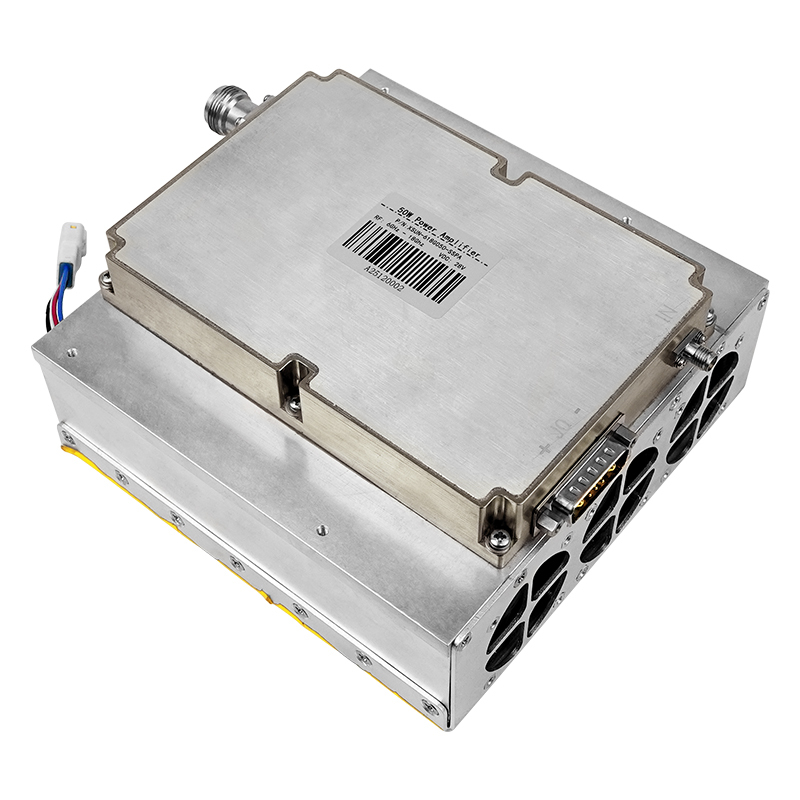

Pictures:
