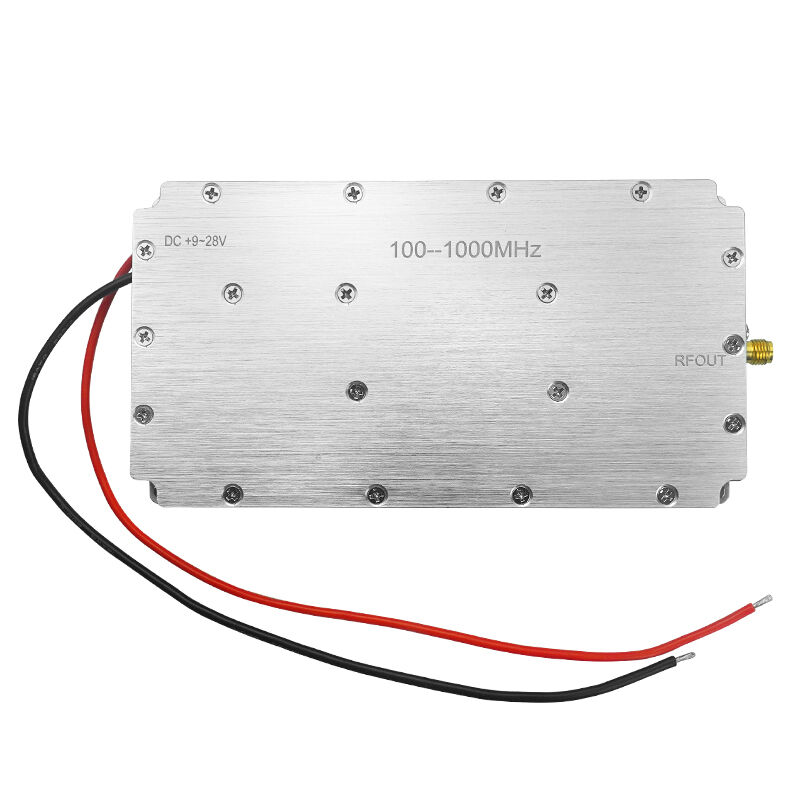

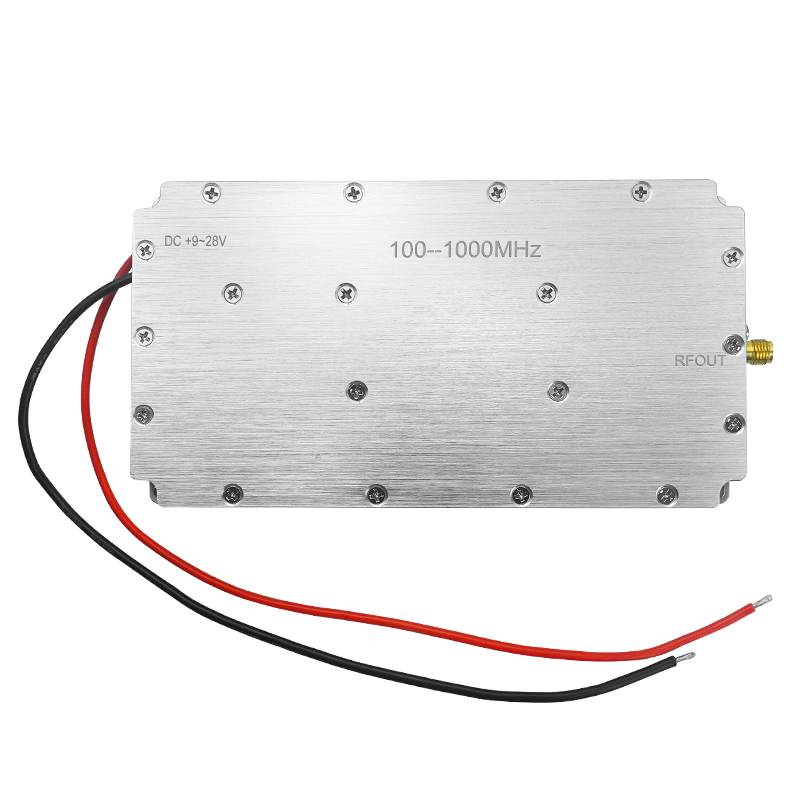

Wireless wide band 100-1000mhz signal source module for anti drone system

Wireless wide band 100-1000mhz signal source module for anti drone system

The wide band 100-1000mhz is a high performance signal source module for anti drone .The Digital Modulation Countermeasure Signal Source Module is a countermeasure module that includes a digital modulation countermeasure source. It can be used by adding a power amplifier module and connecting a transmitting antenna. The module uses an FPGA logic chip for main control, combined with the excellent frequency stability of a frequency-locked VCO to create a countermeasure digital modulation signal module for drones. The digital modulation baseband signal is generated internally by the FPGA, loaded onto a carrier wave with the VCO oscillation frequency, and transmitted through the antenna in the countermeasure process. The module uses a 50Ω SMA RF interface output, which can be easily connected to SMA interface power amplifier modules.

TXtelsig is the leading manufacturer to design and produce signal jamming and wireless coverage product with professional and experienced research and development teams. We have the strength to provide you with the most cost-effective products and plan.

Product Feature

Supported frequency: 100-1300MHz
Small form factor, easy for user integration
Industrial-grade design, using industrial-grade chips, suitable for industrial applications

Matching the RF  power amplifier even better results

Application:
1. Conference room, Confidential office, negotiation room
2. Mobile vehicles, on-site protection of important figures in the political and business circles
3. Party and government organs, temporary meeting rooms for all kinds of small meetings of enterprises
4. Personal or commercial special needs
