| Type: | Portable Drone Signal Manpack | Antenna: | High Gain Antenna |
|---|---|---|---|
| Jamming Type: | 2G,3G, 4G,Wifi,Customized | Customized Frequency: | 20Mhz-6.5Ghz By Different Country&customer Need |
| Jamming Range: | 1.5km | Marterial: | Durable Alluminum Alloy |
| Size: | 49*35*19 CM | Weight: | 16.8 Kg |
| Highlight: | cell phone frequency jammer,high power cell phone jammer |
||

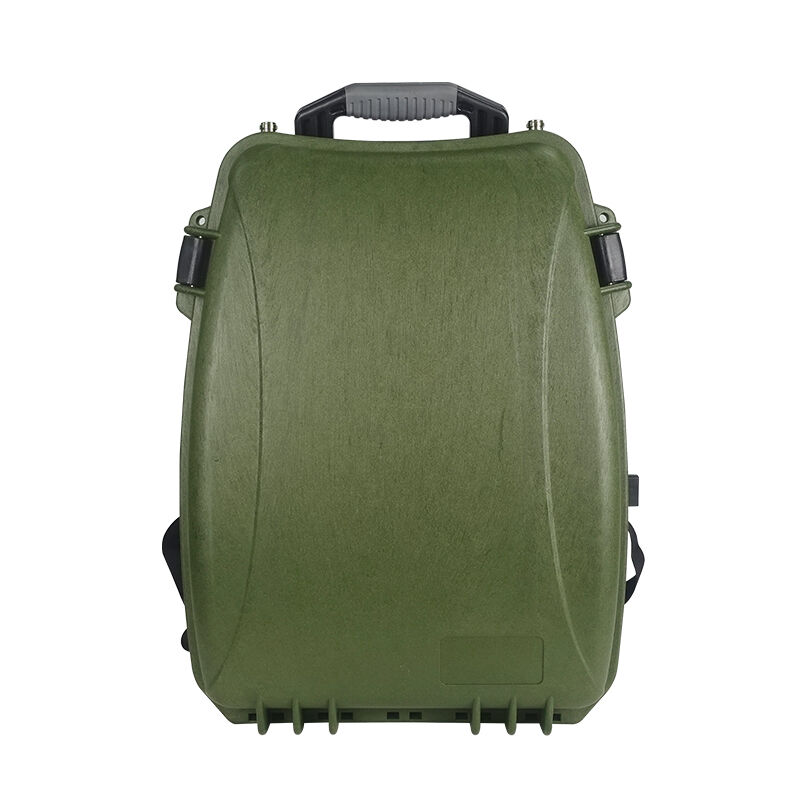

TX-BF05 is a back pack type drone signal jammer for personal use with built-in rechargeable battery.
* It can automatically force drone leave or land in about 800 to 1500 meter radius with high gain OMNI directional antenna;
* and force drone leave or land in about 1500 to 2000 meter with high gain directional antenna targeting the drone;
* both the distances depends on real environment.
Feature
* Can use 2 different kind antenna
* 7 Channel jamming frequency
* High output Power total 350W for effective and stable jamming
* Solid and high gain antenna
* Durable military resin out shell: water proof, dust proof, heat resistant, anti corrosion
* Smart cooling design: with ultra heat sink inside, large cooling fans to bring cool air in and blow hot air out
* Built in lithium battery can lasts 0.5-1 hour

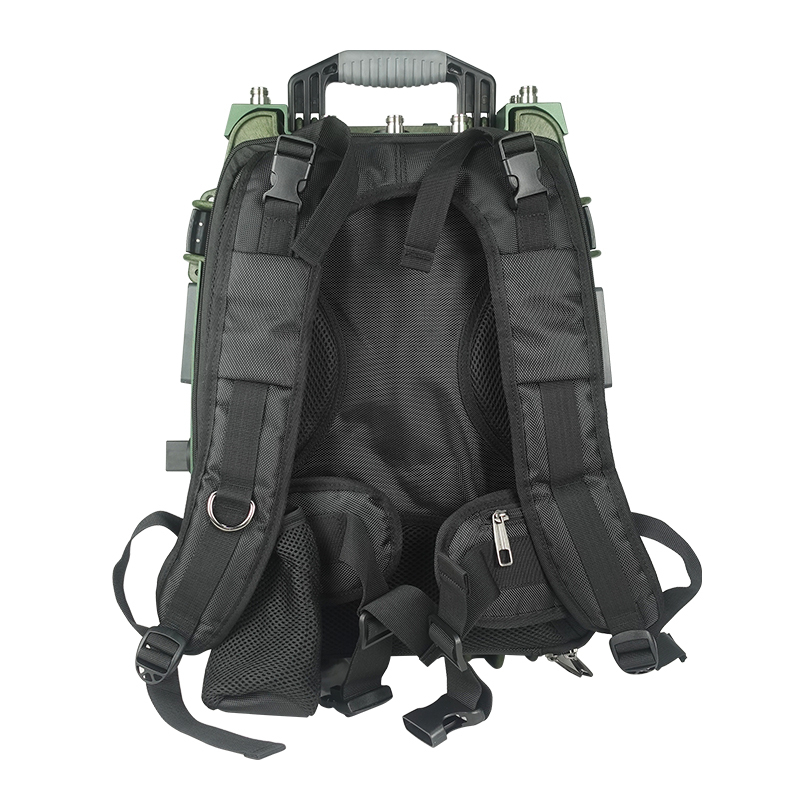

* Back pack style for easy moving
* With AC and DC charging Both
Specification
| Product Type | Back pack drone jammer |
|
Jamming Range |
800-1500 meter radius (OMNI antenna) |
|
Working Channels |
700-830 MHz - 50w 830-890 MHz - 50w 890-960 MHz - 50w 960-1050 MHz - 50w 2,4g/2400-2500 MHz - 50w 5,2g/5150-5350 MHz - 50w 5,8g/5725-5850 MHz - 50w |
| Total Output Power | 350W |
| Body Size | 49*35*19 CM |
| Body Weight | 16.8 kg |

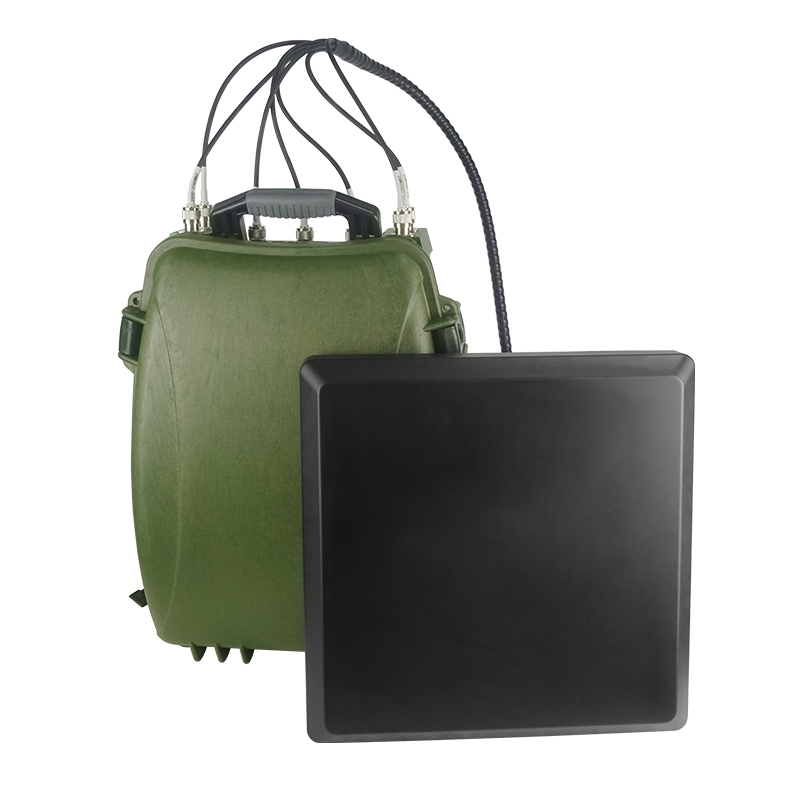

| Outer Antenna | High gain 16dBi Panel directional Antenna |
| Working Temperature | -20℃~75℃ |
| Working Humidity | 35~95% |
| Power Consumption | < 800W |
| Power Input 1 | AC100V~240V |
| Power Input 2 | DC24V |
| Built-in Battery | DC24V 30A |
| Battery Lasting Time |
40-50 minute |
Packing List
1pcs*Back pack signal jammer
7pcs*High gain OMNI directional antennas
1pcs*Panel Antenna
1pcs*AC Power Charger
1pcs*DC Power Charger
