Packing List
1pcs*Jammer
1pcs*High gain panel antenna
1pcs*AC Charger
1pcs*DC Charger

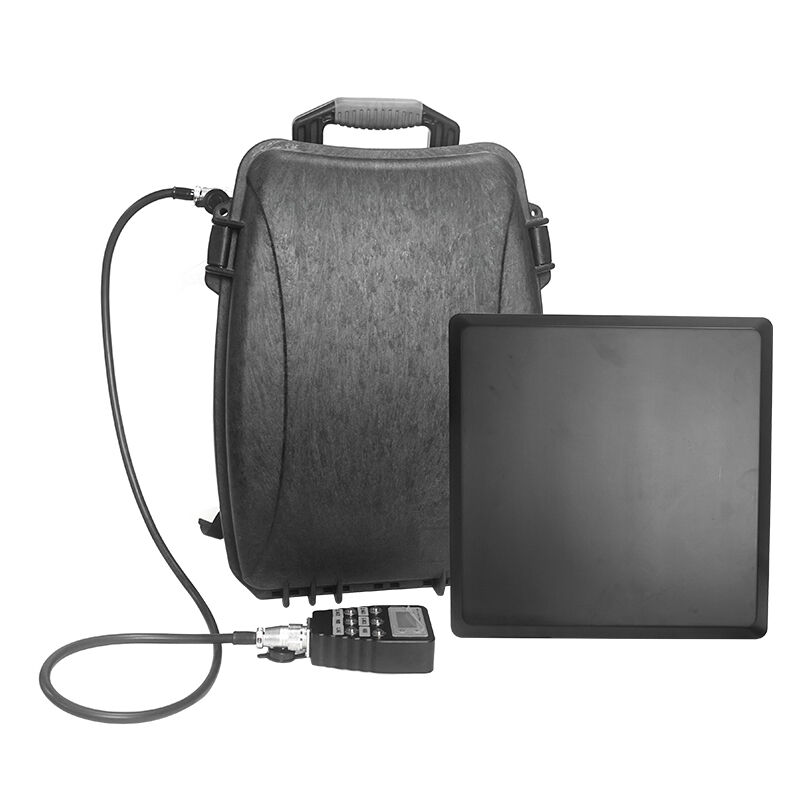

Powerful 8band directional manpack drone signal jammer equipment for air security
TX-BF05 is a back pack type drone signal jammer for personal use with built-in rechargeable battery.
It can force drone leave or land in about 1500 to 2000 meter with high gain directional antenna,depends on real environment.
Advantage
* Long range about 1500-2000 meter
* 5 Channel jamming frequency: 900MHz, 1.5G, 2.4G, 5.2G, 5.8G
* High output Power total 260W for effective and stable jamming

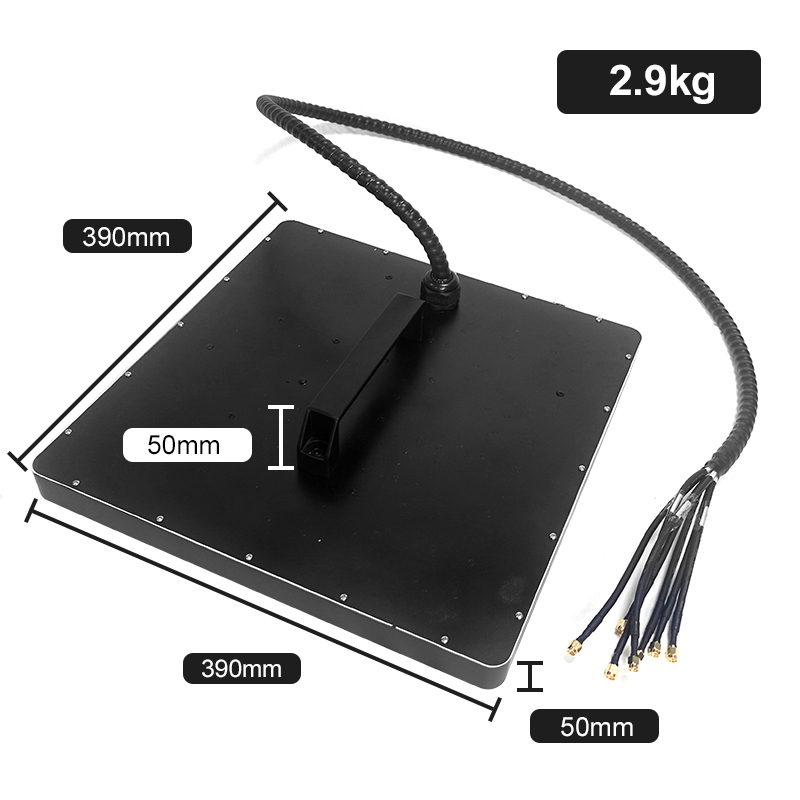

* High gain 16dBi panel directional antenna
(Massive MIMO each channel 16dBi)
* Durable military resin out shell: water proof, dust proof, heat resistant, anti corrosion
* Smart cooling design: with ultra heat sink inside, large cooling fans to bring cool air in and blow hot air out
* Built in lithium battery can lasts 1 hour

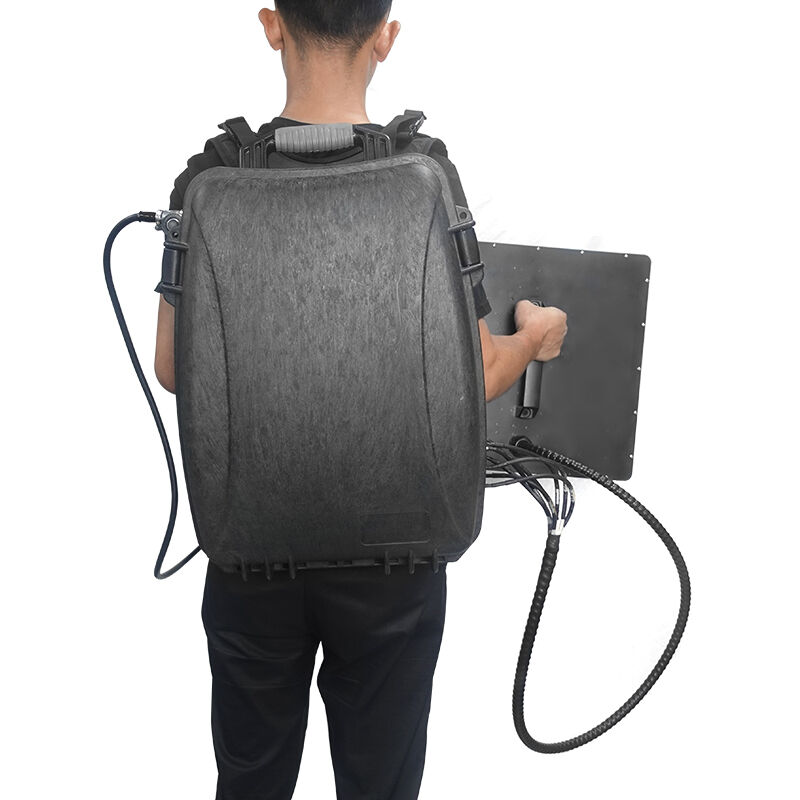

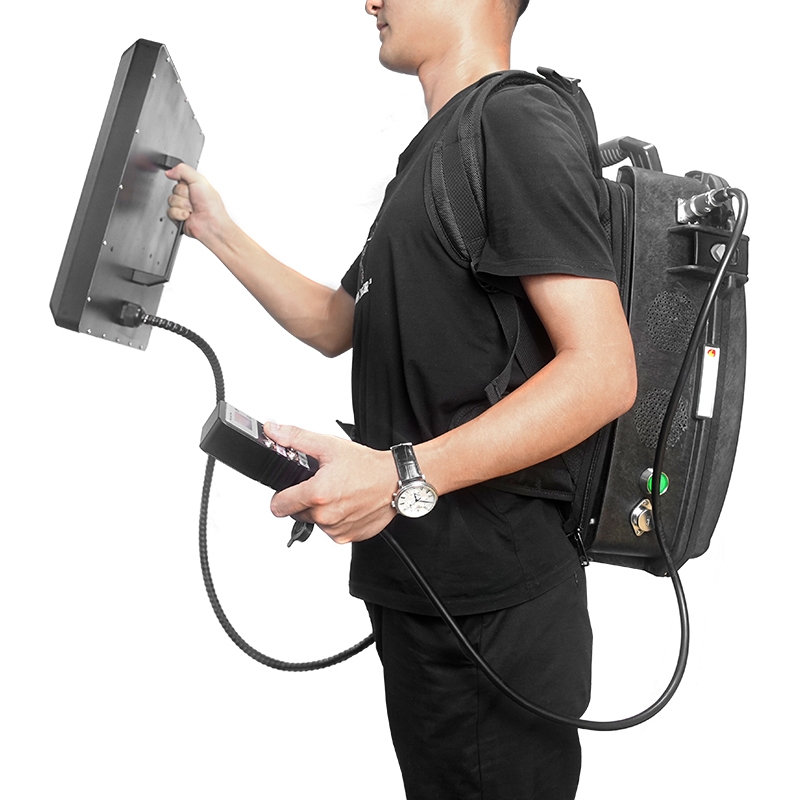

* Back pack style for easy moving
Specification
| Product Type |
Back pack drone jammer |
| Jamming Range |
1500-2000 meter
(according to the real environment )
|
| Working Channels |
GPSL1: 1.5 GHz 30W
WiFi 2.4G: 2400-2485 MHz 100W
WIFI 5.2G: 5150-5350 MHz 50W
WiFi 5.8G: 5725-5850 MHz 50W
900MHz 30W
|
| Total Output Power |
260W |

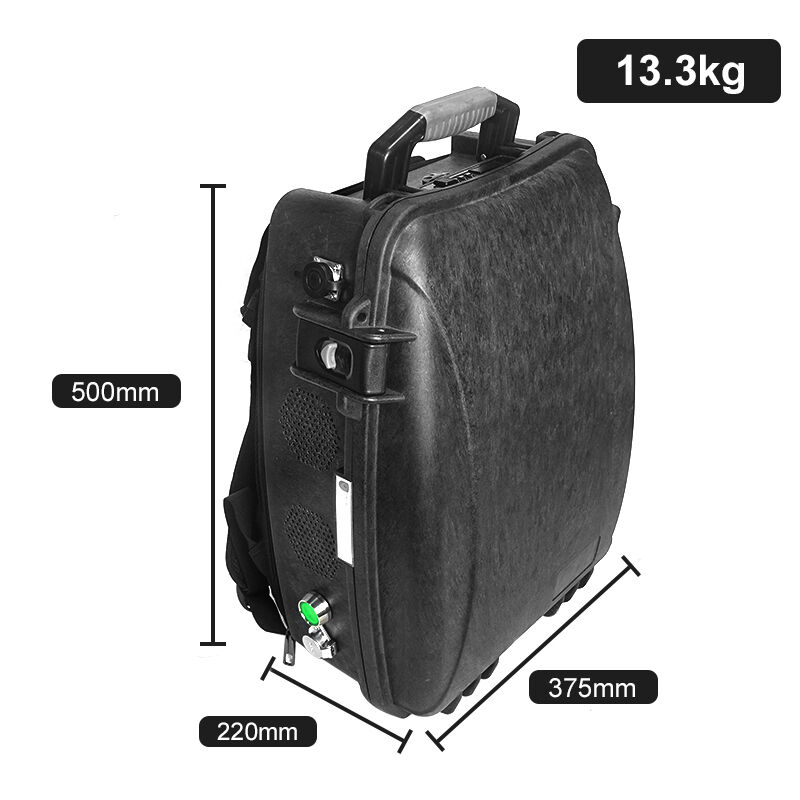

| Body Size |
49*35*19 CM |
| Body Weight |
13 kg |
| Outer Antenna |
High gain 16dBi Panel directional Antenna |
| Working Temperature |
-20℃~75℃ |
| Working Humidity |
35~95% |
| Power Consumption |
≤ 650W |
| Power Input |
AC100V~240V |
| Built-in Battery |
DC24V 30A |
Jamming Frequency Details
| Working Frequency |
| 130-200MHZ |
200-300MHZ |
| 300-400MHZ |
400-500MHZ |
| 700-800MHZ or 790-862 MHZ |
2500-2700MHZ |
| 800-900MHZ |
900-980MHZ |
| 1050-1200MHZ |
1200-1390MHZ |
| 1500-1600MHZ |
1700-1800MHZ |
| 1800-2000MHZ |
2100-2199MHZ |
| 2300-2400MHZ |
2400-2500MHZ |
| Guarantee |
1 Year |
Application
1. Law enforcement: prison, police station;
2. Education field: Examination,Training;
3. Military and Goverment
4. Important confidential places
5. Theatre, concert room, Memory Hall, Auditorium,etc
6. Others
