Type: | Powerful Signal Jammer | Jamming Range: | 5-20meter (depends On Signal Environment) |
---|---|---|---|
Jamming Type: | 2G,3G, 4G,5G,GPS,Wifi,Customized | Marterial: | Durable Alluminum Alloy |
Si Ze: | 380*230*58 Mm | Weight: | 5.2 Kgs |
Highlight: | high power cell phone jammer,rf frequency jammer |
TXtelsig is the leading manufacturer for the signal jamming and wireless coverage product.
TX-16K this box signal jammer can effectively break the single or multi-band signal accordingly in 3-5 second
at a wide range up to 5-20meter .
The "Frequency&Antenna" be customized by different country standard and specific need.
Advantage
1. Each frequency of 16 bands can be separate and adjustable: customer could block all bands or part of them
by turning off other single bands without influencing other band operation.
2. All-in-one design: to block CDMA/GSM, DCS/PCS, 3G 4G WIFI GPS LOJACK VHF UHF 433MHz 315Mhz or
customized frequency with only one jammer
3. AC adapter input power for 24 hour non-stop stably working on fixed place with low noise and nice heat-dissipation
system
Specification
TX Module No. | TX-16K |
Main Engine Size | 380*230*58mm |
Main Engine Weight | 5.2KG |
Working Temperature | —40 to 55℃ |
Shiled Range | 5-20meter |
Power Supply | <=30W |
Input Power | AC 100-240V DC 24V |

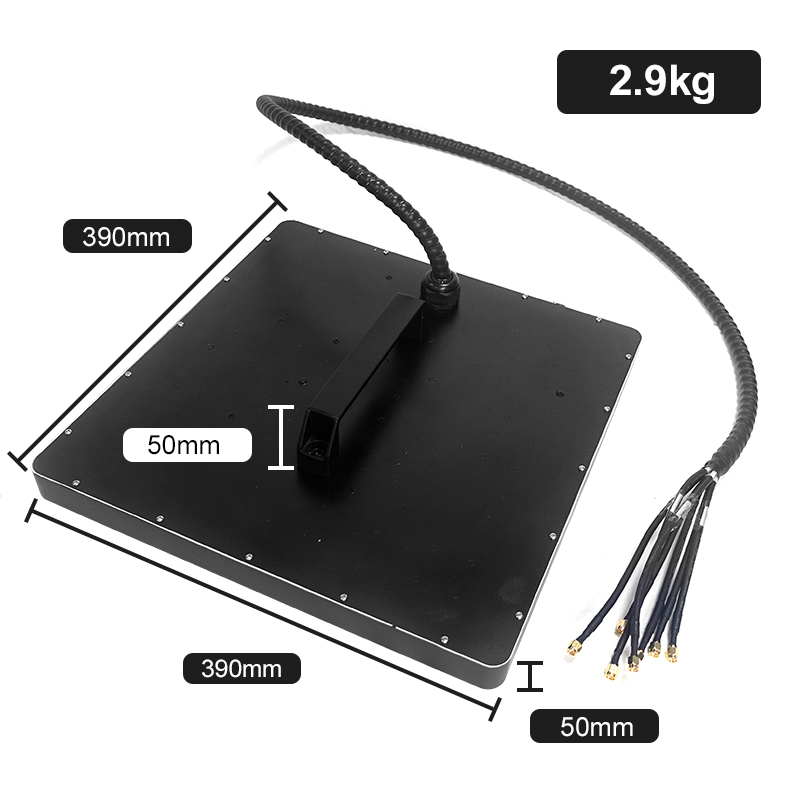

Antenna Data | External orientation antenna |
gain 5-7dBi | |
Guarantee | 1 Year |
Jamming Frequency Details
Working Frequency | |
130-200MHZ | 200-300MHZ |
300-400MHZ | 400-500MHZ |
700-800MHZ or 790-862 MHZ | 2500-2700MHZ |
800-900MHZ | 900-980MHZ |
1050-1200MHZ | 1200-1390MHZ |
1500-1600MHZ | 1700-1800MHZ |
1800-2000MHZ | 2100-2199MHZ |
2300-2400MHZ | 2400-2500MHZ |
Guarantee | 1 Year |
Application
1. Law enforcement: prison, police station;
2. Education field: Examination,Training;
3. Military and Goverment
4. Important confidential places
5. Theatre, concert room, Memory Hall, Auditorium,etc
6. Others
Pack
1 full set
