| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Certification: | SGS,ISO9001 |
| Model Number: | TX-BF01 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Durable case or box |
| Delivery Time: | In 2 work day |
| Payment Terms: | T/T,Paypal, Etc. |
| Supply Ability: | 50,000pcs/month |
| Type: | Signal Jammer | Frequency: | 2.4G 5.8G GPS Or Customized |
|---|---|---|---|
| Marterial: | Durable Alluminum Alloy | Size: | 120*90*10mm |
| Output Power: | 80W | Built-in Battery: | 24V 10AH |
| Jamming Range: | 500-2000 Meter | Weight: | 10.0kg |
| High Light: | drone jamming device,drone frequency scrambler |
||

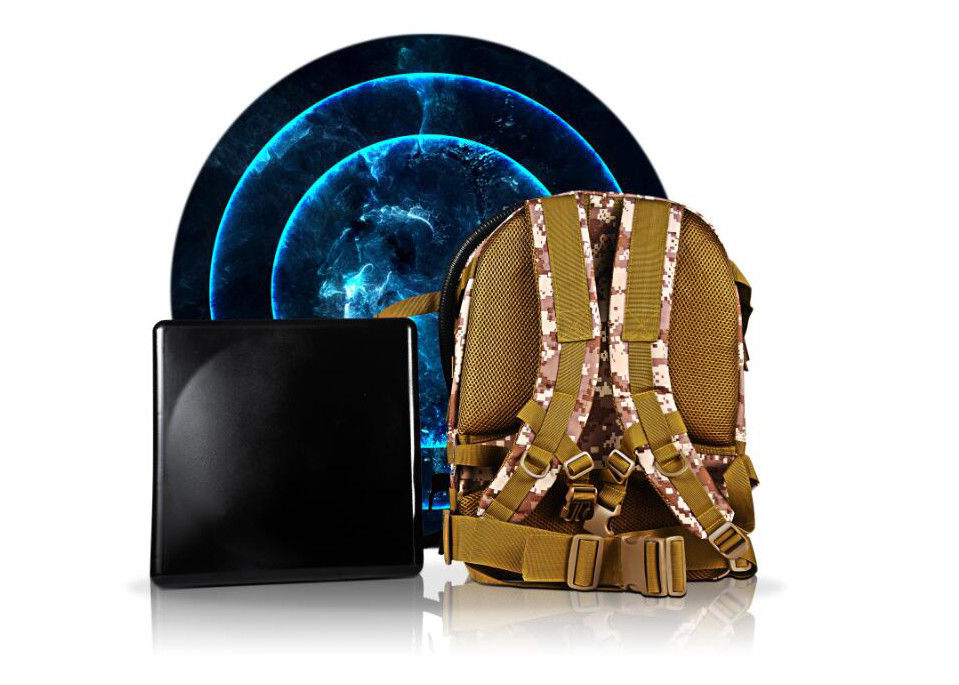

Professional High Power Backpack Cell Phone Drone Signal Jammer Blocker 2.4G 5.8G GPS LOJACK
We are the professional and experienced manufacturer of signal jammer and wireless
coverage product.
TX-BF01 adopts the high-power electromagnetic wave to interfere the connection between
UAV and remote controller in distance 500-2000meter.
With it, you can easily make UAV return home or slowly landing immediately.
Product Feature
1. Specially used for anti-terrorism, EOD, bomb-disposal, force filed work, etc;
3. Backpack design: portable to carry and operate flexibly, specially applied to the emergency
transportation, temporary control requirements;
4. Built-in efficient rechargeable battery can be used for 1.5 hours after fully charged;
5. TXtelsig backpack signal jammer is easy to install and operate
6. High quality Aluminum Alloy be heat dissipation, pressure-resistant and durable
7. Built-in efficient cooling fan and cooling fin ensure its long time working low-heat
How to Use
| Switch | 1.5G/ GPS |
2.4G | 5.8G | Function | UAV Status |
| Action | |||||
| Press | √ | The GPS information of UAV can not be found by the remote control | Return to the take-off place in 3-5 second | ||
| Press | √ | √ | The remote control fail to run UAV and can not have its image data | Can not send image date to the remote control | |
| Press | √ | √ | √ | GPS,image transmission and UAV control all off | Slowly landing in 3-5 second |
The specific frequency band can be customized as required.
Specification
| TX Model No. | TX-BF01 signal jammer |
| Size | 120*90*10mm |
| Weight | 10.0KG |
| Jamming Frequency | 1.5GHz (GPS) |
| (can be customized) | 2.4Ghz |
| 5.8GHz | |
| Large Jamming Range | 500-2000 Meter |
| Bulit-in Battery | 24V 10A |
| Use Time | 1 to 1.5hour (Built in Battery) |
| Work Temperature | -22℃ to +70℃ |
| Work Humidity | 35% to 80% |
| Dissipation | Built-in dissipation chip and fan |
| Warranty | One Year |
Jamming Frequency Details (can be customized by different country and specific need)
| Band | Frequency | Output Power |
| 1.5G(GPS) | 1580-1620 MHZ | 10W |
| 2.4G | 2400-2460MHZ | 50W |
| 5.8G | 5720-5850 MHZ | 20W |
Application
Built-in high capacity battery and portable camouflage backpack design make this jammer
applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism
units,anti-drag units,anti-riot force,the EOD team,checkpoints,
hostage negotiations,border control,etc...
