| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Certification: | SGS,ISO9001 |
| Model Number: | TX-Q-02 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Durable case or box |
| Delivery Time: | In 2 work day |
| Payment Terms: | T/T,Paypal, Etc. |
| Supply Ability: | 50,000pcs/month |
| Type: | UAV Signal Jammer | Frequency: | 2.4G 5.8G GPS Or Customized |
|---|---|---|---|
| Marterial: | Durable Alluminum Alloy | Output Power: | 25W Or 60W |
| Use Time: | 1-1.5hours | Jamming Range: | 500-2000 Meter |
| Weight: | 5.1KG | Size: | 1100*280*100mm |
| High Light: | drone jamming device,drone frequency scrambler |
||
TXtelsig is an expert of signal jamming system and wireless coverage product.
TX-Q-02 With sighting telescope, this high power jammer can easily get rid of high-altitude UAV
threat by interfering its signal with remote control.
It can force the UAV return or descend very fast in 3-5 second.
Product Feature
1. Classic wooden holder; The shape is easy to carry conforming to hand shape
2. Heat-dissipation Aluminum Alloy Body for long hours&stable working
3. Wide blocking range up to 500-1500 meter(Maxium up to 2000meter)
4. High-power jamming tech breaks signal very fast in 3-5 second to get rid of air threat right away

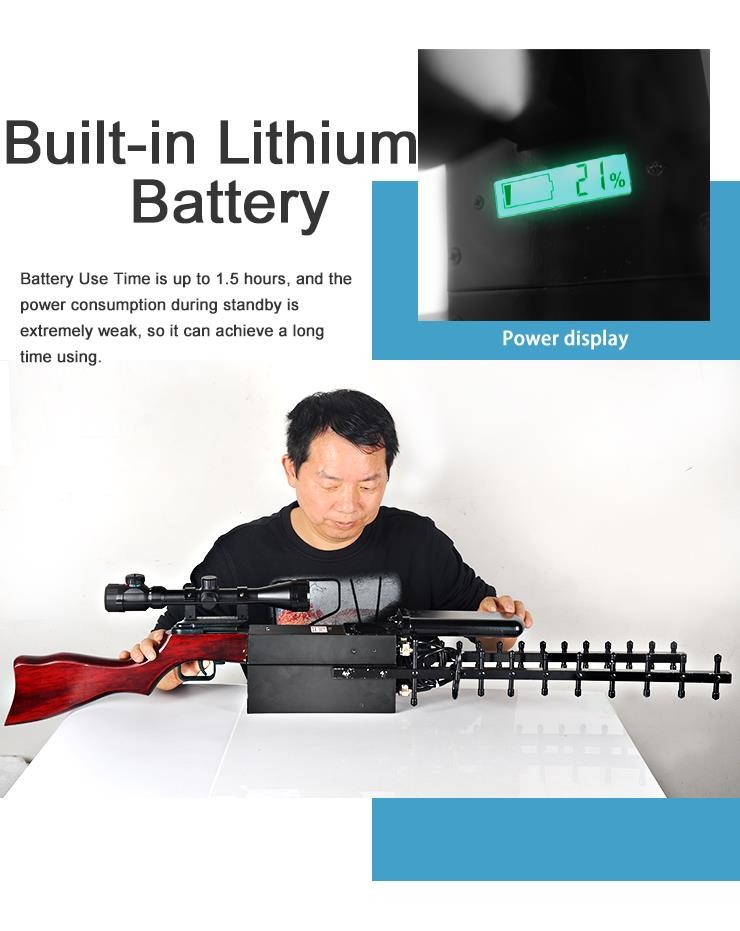

5. Built-in lithium battery can lasts 1.5 hour for outdoor operation
How to Use
| Switch | 1.5G | 2.4G | 5.8G | Function | UAV Status |
| Action | |||||
| Press | √ | cut off GPS signal of UAV and remote controller | return home | ||
| Press | √ | √ | make the remote control fail work and stop UAV image transmission | UAV can not be operated by remote controller and not able to transmit images to it | |
| Press | √ | √ | √ | GPS, image transmission and remote control all can not work | hover and slowly descend in 3-5 second |
--We can customize the frequency band as required such as 433Mhz, 900Mhz, 1.2Ghz, etc.

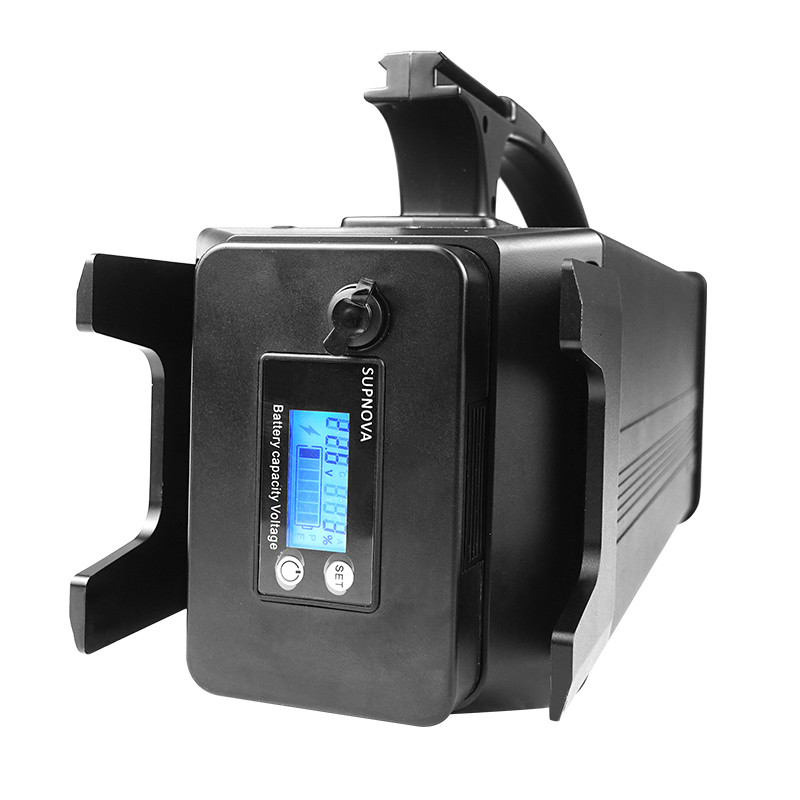

--Capacity Display Screen:
1. GREEN light shows remaining capacity
2. RED light shows not-enough capacity
Specification
| TX Model No. | TX-Q-02 |
| Size | 1100*280*100mm |
| Weight | 5.1KG |
| Jamming Frequency | 1.5GHz (GPS) |
| (can be customized) | 2.4Ghz |
| 5.8GHz | |
| Large Jamming Range | 500-1500 Meter(Max. 2000meter) |
| Power supply | AC220V-DC5V |
| Use Time | 1-1.5hour (Built-In Battery) |
| Work Temperature | -22℃ to +70℃ |
| Work Humidity | 35% to 88% |
| Power Consumption | 157W |
| Output Power/dBm | 25W or 60W |
Jamming Frequency Details
| Band | Frequency | Output Power |
| 1.5G(GPS) | 1580-1620 MHZ | 10W |
| 2.4G | 2400-2460MHZ | 10W |
| 5.8G | 5720-5850 MHZ | 5W |
Application
Various applications of UAV is a serious threat to our society, especially below fields:
1. Law enforcement
2. Government
3. Military
4. Infrastructure like oil spot
5. Transportation
6. Commercial Confidential files
7. Education
8. Important Public Events
9. Personal Privay or Others
Package
|
1PCS |
Drone Jammer |
|
1PCS |
AC adapter |
|
1PCS |
User Manual |
|
1PCS |
Durable Metal Alloy Case |
After-Sales Service
The technical support will be free for lifetime and product guarantee for one year.
