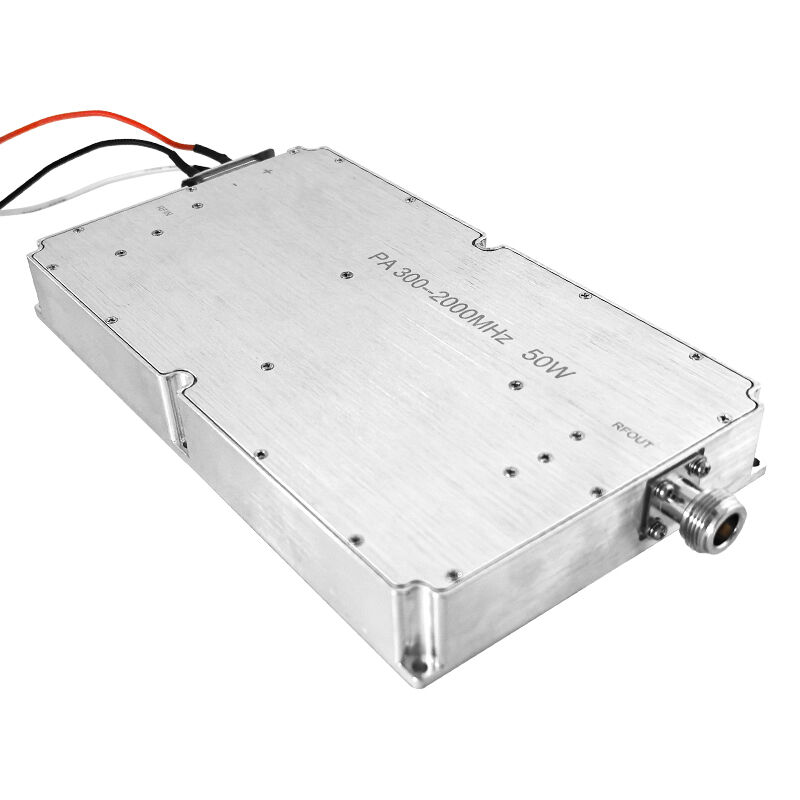

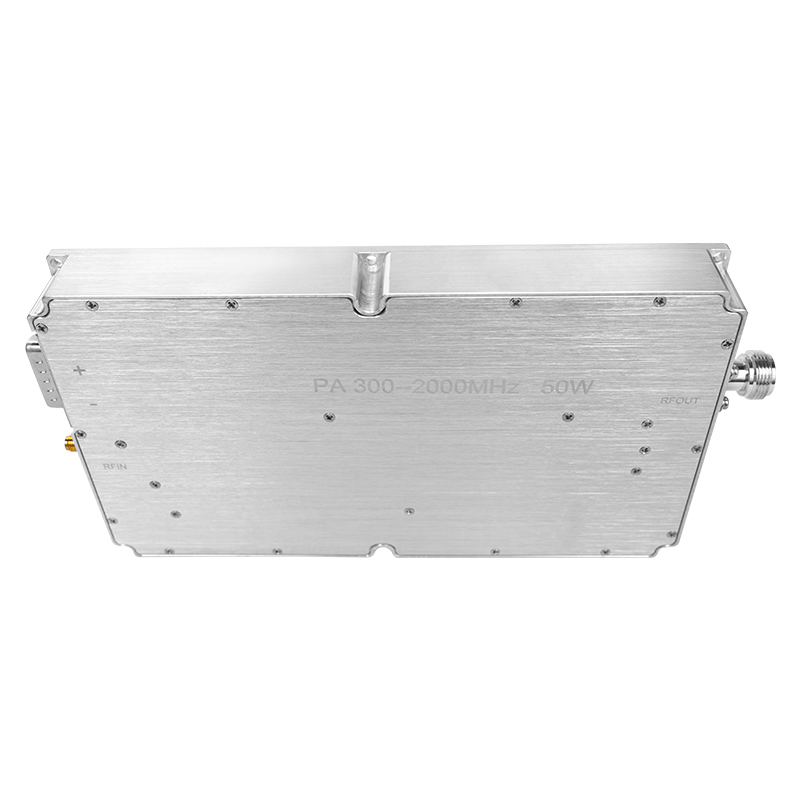

TXtelsig wifi 2g 3g phone signal shield PA broadband power amplifier module 32V module
TX3002700100 model of TXtelsig is perfect for signal jamming according different application the pa power amplifier module can use in examination room, training room, meeting room, conference room
movie theater, library, church, underground parking palce and other places where needs
forbiden phone signal, drone signal and other signal cover 300-2700mhz .
* Jamming signal: 400mhz 800mhz 900mhz 1.2ghz 2g 3g etc customized .
* Power out put 100W 50W customized .
* Jamming Radius: 500-2000 meter depends real environment .
* It is small size and space saving for multiple device such fixed portable jammer device .
* Re-oxidation Durable Aluminum alloy metal outshell helps anti corrosion and heat dissipation .
* Conpact designed and portable to carry .
10 channel frequency can be customized as required, such as below options:
GSM,CDMA,UMTS,LTE,5G,WIFI,VHF,UHF,etc
135MHz, 174MHz, 315MHz, 433MHz, 470MHz, GPSL1, L2, 800MHz, 900MHz,1800MHz
2100MHz,2300MHz,2500MHz, 2600MHz
| No. |
Description |
Symbol |
Min |
Typ |
Max |
Unit |
Remark |
|
|
Operating Frequency |
BW |
300 |
|
2700 |
MHz |
|
|
|
Input Power |
Pin |
|
2 |
|
dBm |
|
|
|
Output Power CW |
Psat |
49 |
50.5 |
|
dBm |
Continuous Wave |
|
|
Power Gain |
Gp |
|
48.5 |
|
dBm |
@ Pin=2 dBm |
|
|
Power Gain Flatness |
△Gp |
|
±1.5 |
|
dB |
@ Pin=2 dBm |
|
|
Input Return Loss |
S11 |
|
-15 |
|
dB |
|
|
|
Operating Voltage |
Vdc |
28 |
32 |
32 |
V |
|
|
|
Current Consumption |
A |
|
8 |
11 |
A |
@ Pout＞80W |
|
|
RF Connector Input |
|
SMA, Female |
|
|
|
|

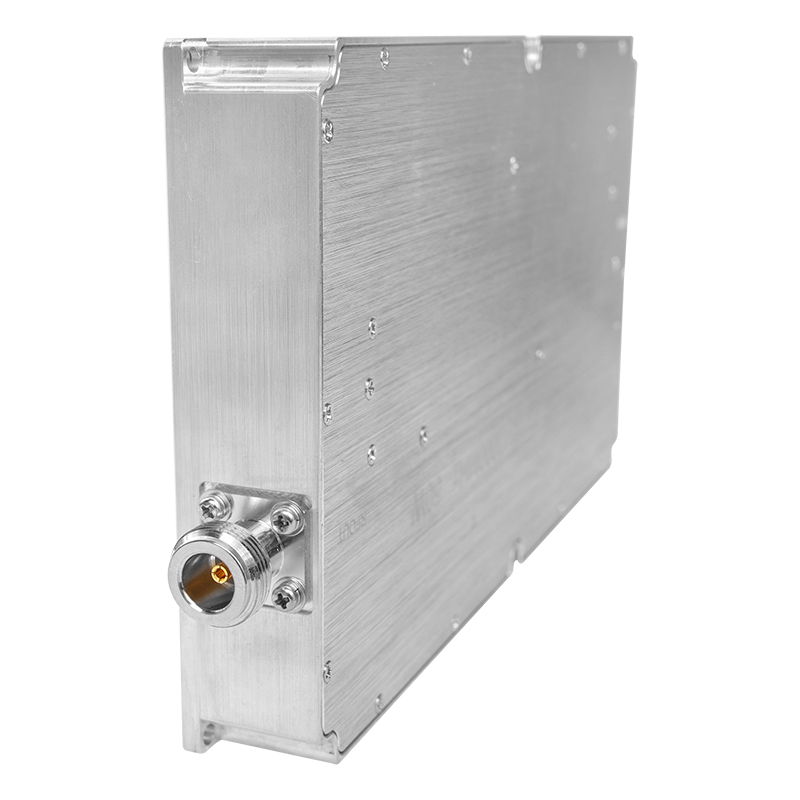

RF Connector Output |
|
N- Female |
|
|
|
|
Weight |
|
0.95 |
Kg |
|
|
|
Length*Width*Height |
|
220*90*25 |
mm |
|
|
|
Max Input Power |
PinMax |
≤10 |
dBm |
|
|
|

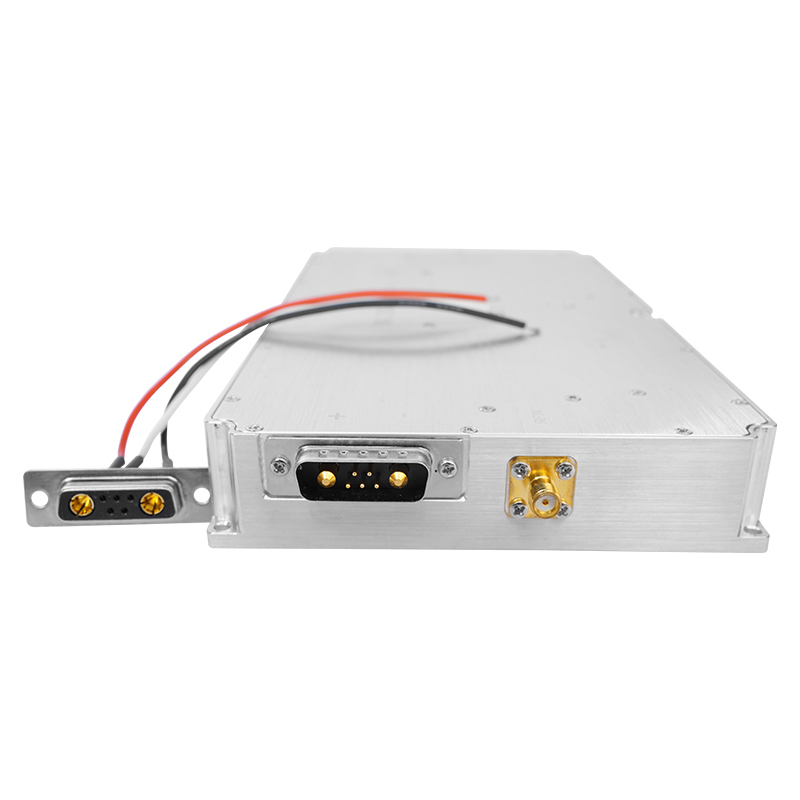

Interface Definition
(7W2 Female)
|
VDD |
A1 |
28Vdc |
|
| |
GND |
A2 |
Ground |
|
| |
Overcurrent protection |
1 |
Normal operation :0V
Overcurrent protection:+5V
|
Overcurrent protection@25A |
| |
Over-temperature protection |
2 |
Normal operation :0V
Over-temperature protection:+5V
|
Over-temperature |
| |
Enable |
3 |
5V~Vdd:ON
0V:OFF
|
protection@100℃ |
| |
GND |
4 |
Ground |
|
| |
State |
5 |
Normal operation :0V
State protection:+5V
|
|
| |
Overall dimension |
Note:
1, The overall dimensions are for reference only；
2, The size can be appropriately increased or decreased according to the customer's requirements；
3, The positions of the input interface, output interface and power supply interface can be changed according to the actual needs of the customers；
|
