Detail Information

Brand:	Texin	Frequency:	Customized
Power:	30W	Work Voltage:	24-28V
Max Gain:	45dB	Flatness:	±1
Max Current:	4A	Output Connector:	SMA/F 50Ω
Weight:	0.268Kg
Highlight:	30W FPV UAV power amplifier , FPV UAV signal amplifier module , air protection power amplifier module

Product Description

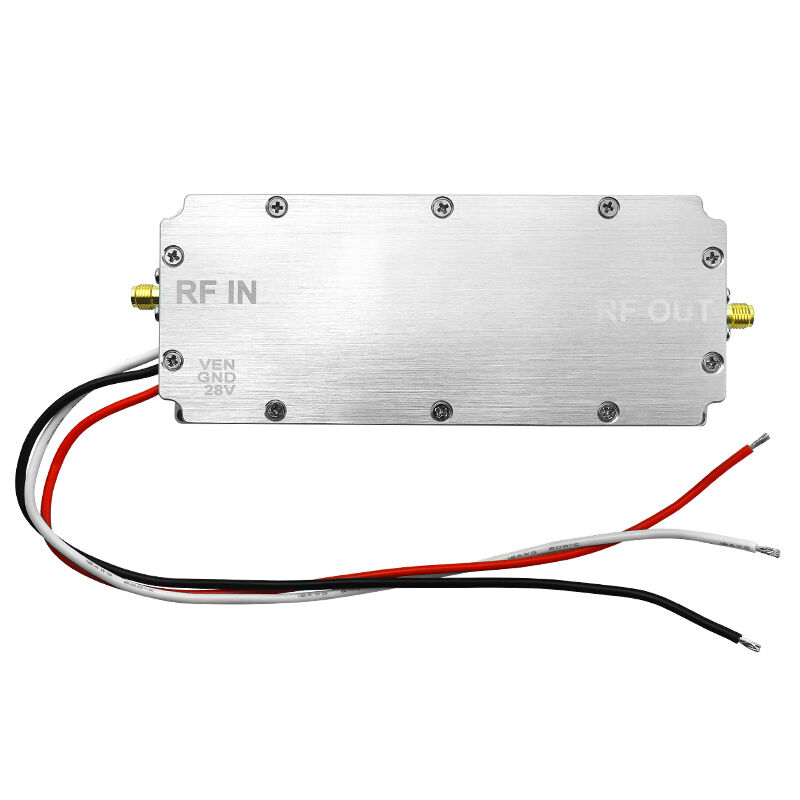

ODM & OEM 30W FPV UAV Power Amplifier Module for Air Protection

A 30W RF power amplifier module designed to amplify radio frequency signals for various applications including communications, radar systems, and RF testing. This module delivers maximum RF output power rated at 30 watts.

Product Features

Output Power: Capable of delivering up to 30 watts (W) of RF output power
Broad Operating Frequency: Typically covers wide frequency ranges or specific bands
Efficiency: Optimized efficiency (30% to 60%) reduces power consumption and heat generation
Compact Size: Portable design for easy integration into various systems

Technical Specifications

No.	Item	Data	Unit	Notes
1	Frequency	Customized	MHz
2	Work Temperature	-40~+85	℃
3	Max Output Power	30	W
4	Work Voltage	24-28	V
5	Max Gain	45	dB
6	Flatness	±1	dB
7	Max Current	4	A
8	Output VSWR	≤1.5
9	Output Connector	SMA/F 50Ω		Customized
10	Power Amplifier Efficiency	45		when Max Output
11	Switch Control	high low level current	V	0V off / 0.6V on
12	Standing Wave Protection	OK
13	Temperature Protection	75	℃
14	Size	1395319	mm
15	Weight	0.268	Kg

Application Scenarios

Wireless communication systems: Enhance base station signals, expand coverage, and improve communication quality
Broadcasting systems: Amplify radio station signals to increase strength and coverage
Radar systems: Enhance radar signals and improve detection distance and accuracy
Scientific research experiments: Signal amplification and processing in research applications
Industrial control: Wireless communication in industrial automation for stable signal transmission

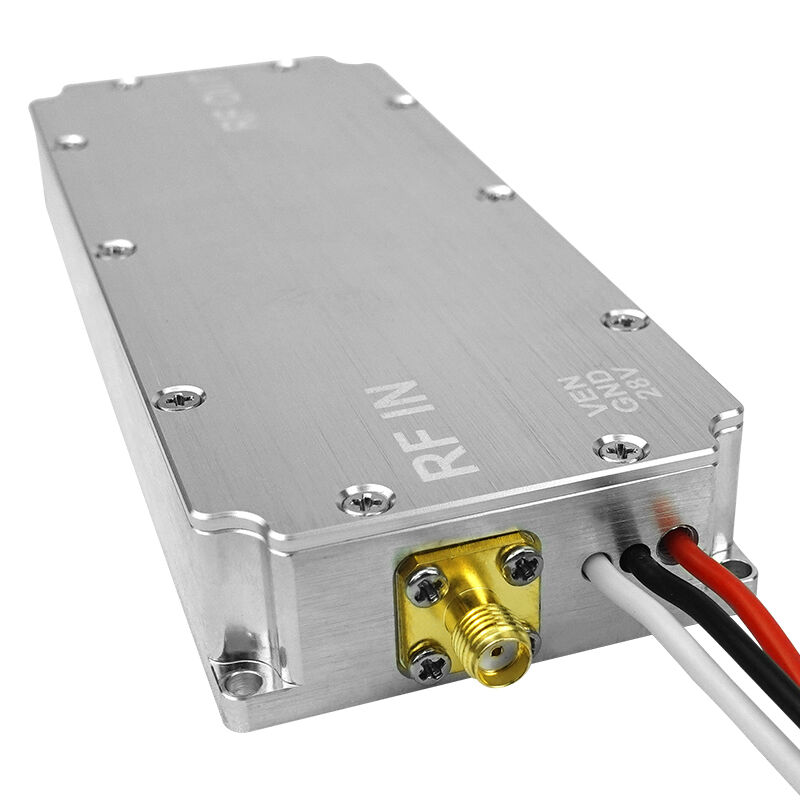

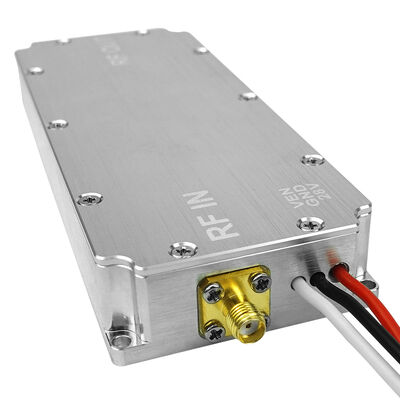

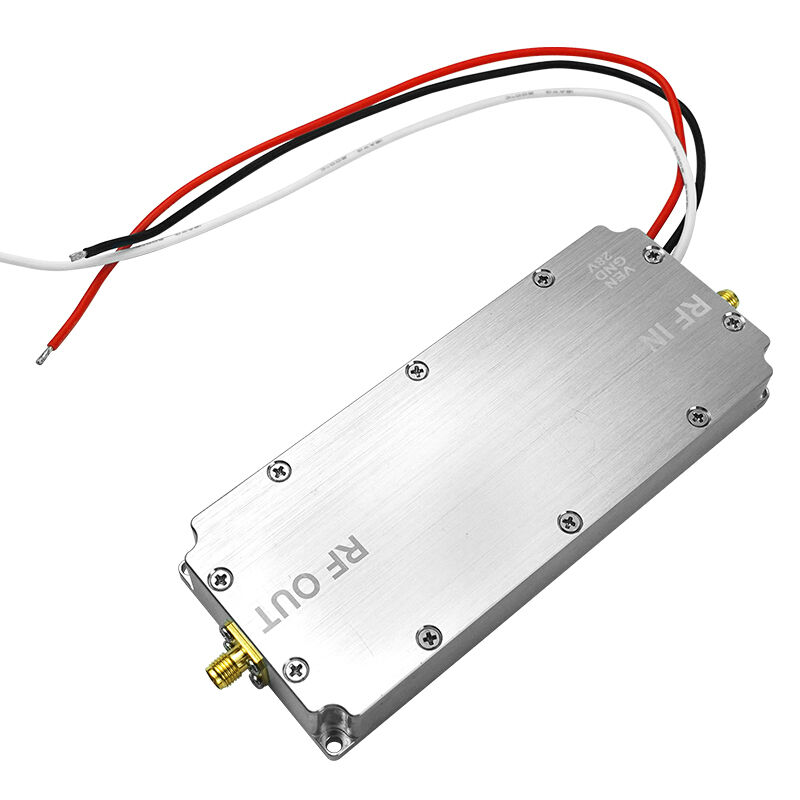

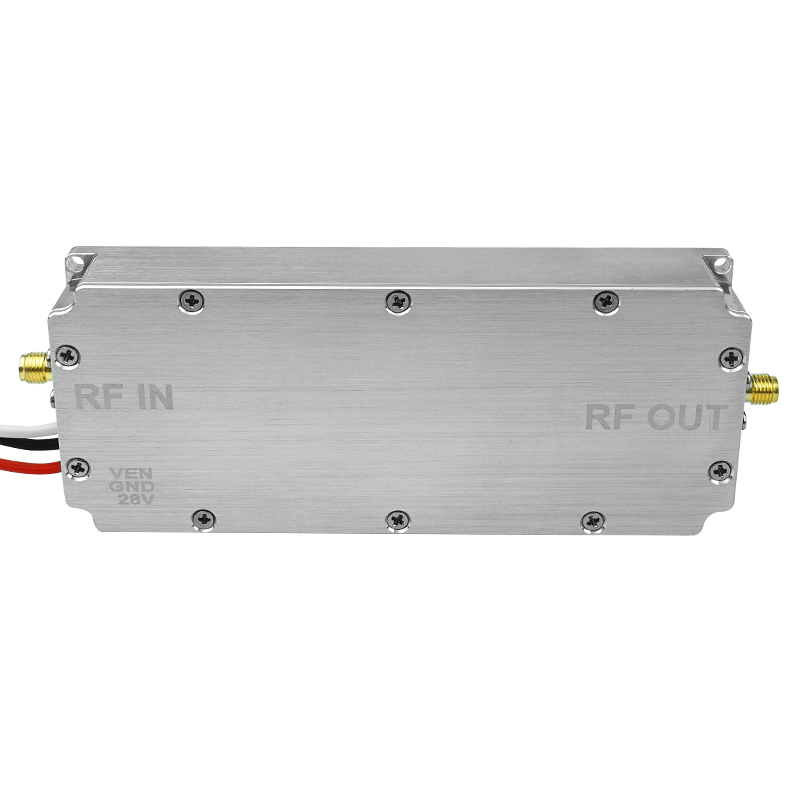

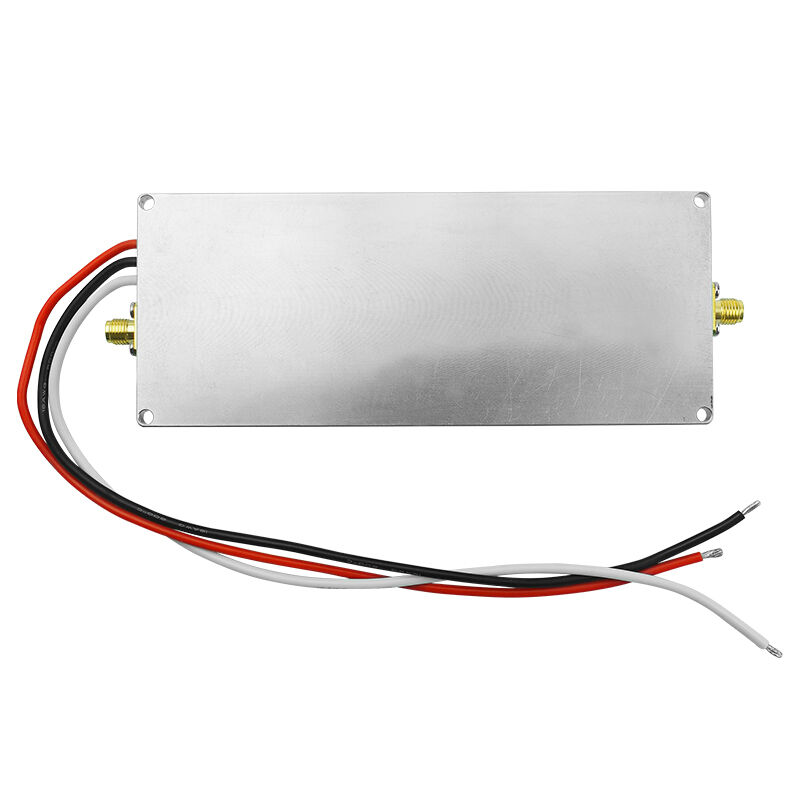

Product Details

Factory Introduction

Since 2014, Shenzhen Texin Electronics Co., Ltd (Brand name: TXtelsig or TeXin) has been a professional manufacturer of innovative signal jammers meeting international quality standards and market needs. Our factory is located in Shenzhen city, Guangdong Province, China, with complete facilities including SMT machines, assembly lines, and warehouse on the 2nd floor, and office space on the 3rd floor.

Frequently Asked Questions

How can I get the price?

We typically provide quotes within 24 hours after receiving your inquiry. If you require urgent pricing, please indicate this in your email for priority handling.

Are you a manufacturer?

Yes, we are the actual factory located in Shenzhen, China. We support full product customization and welcome factory visits.

How do you guarantee product quality?

We utilize advanced technology and comprehensive testing equipment. All products undergo 100% testing before shipment to ensure quality standards.
