| Place of Origin: | China |
|---|---|
| Brand Name: | TeXin |
| Certification: | CE ISO SGS |
| Model Number: | TX-DD06 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Durable case or box |
| Delivery Time: | Within 3 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, |
| Supply Ability: | 10000pcs /month |
| Type: | Drone Detector Module | Supply Voltage: | DC24V |
|---|---|---|---|
| Material: | Aluminum Alloy Exterior Shell | Frequency: | Customized |
| Highlight: | Customized Drone Detector Module,Anti UAV Drone Detector Module,Precise Drone Detector Module |
||
It is compatible for many different drone defense system, customer can tell us their frequency need.
We can customize it according to the specific need of customers.
| Product Name | Compatible Drone Detector Module | |
| Drone Detect Type | DJI series drones, Autel series, FPV drones, etc (Upgradable in near future ) |
|
| Detection Frequency | GPSL1 GPSL2 ,2.4GHz, 5.8GHz | |
| Detection Distance | about 1200-2000 m radius | |
| Volume | 167mm*83mm*42mm (L*W*H) | |
| Weight | (365±20) g | |
| Working temperature | -20~+65ºC | |
| Supply voltage range | 9-36V | |
| Power Dissipation | 5.5±0.5W | |

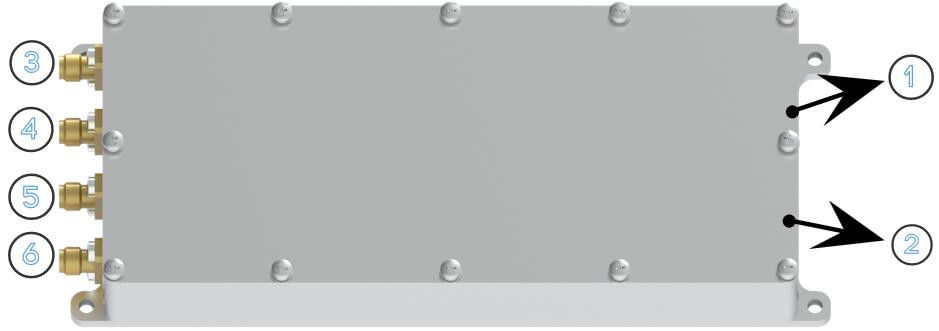

| Input Connector | Type | Function |
| 1 | RJ45 network port | Network communication interface |
| 2 | Power supply & linkage interface | For detailed definitions, please refer to the definition table of power supply and linkage interface Pluggable terminal block, 7PIN connector |
| Output Connector | Type | Connected Antenna Frequency |
| 3 | SMA/Female | WIFI (2.4GHz/5.8GHz) |
| 4 | SMA/Female | WIFI (2.4GHz/5.8GHz) |
| 5 | SMA/Female | 2.4GHz/5.8GHz |
| 6 | SMA/Female | GPSL1 GPSL2 |
