TX 1.5km portable jammer Full-band drone anti-drone jammer with positioning screen

Basic Information
Place of Origin: Shenzhen,China
Brand Name: TeXin OEM
Certification: CE ISO
Model Number: TX-WRJCDQ01
Document: Anti Drone product-TeXin.pptx
Minimum Order Quantity: 1
Price: $5500-5900
Packaging Details: Durable case or box
Delivery Time: Within 3 work days
Payment Terms: L/C, D/A, D/P, T/T,
Supply Ability: 100000/month
Detail Information
Features: Jamming &detection Brand: Texin
Type: Portable Handheld Drone Jammer Frequency: 300-6000MHz
Working Range: 1.5-2KM Warranty: 1 Year
Application: Family , Workplace , Classroom , Car , Vehicle Material: Aluminum Alloy Exterior Shell
Target Drone: DJI Fpv Mini Drone
Highlight:

Mobile 12 Channels GPS jammer

,

Car Vehicle GPS jammer

,

5G GPS jammer


Product Description

TX 1.5km portable jammer Full-band drone anti-drone jammer with positioning screen



Product features :



TX 1.5km portable  jammer  Full-band drone anti-drone jammer with positioning screen 0

This is a portable 8-channel detection integrated drone jammer gun. It can automatically detect and jam with drones in a 360 degree full range and 1000-2000 meter long distance. It is easy to operate and portable to carry, and the device has an external power supply that provides convenience for outdoor use.

This jamming gun detection function takes low-power consumption digital simulated mixed technology and advanced manage power technology that possess high accuracy and low false alarm rates.And the jamming function designed 8 channels that all of the bands supported working simultaneously. Even if in the complex electromagnetic wave environment, the FPV, four-rotor, fixed-wing, DIY can be easy to countermeasures.



Specifications :



Product Type Portable detection integrated jammer gun
Detecting frequency

1GHz-1.3GHz

2.4GHz-2.5GHz

5GHz-6GHz

Jamming Range 1000-1500m
Detect refresh time 3S
Number of drone ≥100
Working way Drive away
Detecting Range 360°
Antenna High gain 3dbi

Working Channels

Customized

410-485 MHz ( 433 MHz) 10W
840-920 MHz ( 900MHz) 40W LORA module offered
1100-1280 MHz (1.2 GHz) 10W
1300-1390 MHz (1.4 GHz) 10W
1560-1620 MHz (1.5 GHz) 20W
2400-2500 MHz (2.4 GHz) 50W
5150-5350 MHz (5.2 GHz) 30W
5725-5850 MHz ( 5.8 GHz) 50W
Total Output Power >200W
Body Size 600*320*120mm
Body Weight 6.8 kg
Working Temperature -40ºC to +65ºC
Working Humidity 35~85%
Battery DC29.4V 10A

Battery Lasting Time



50-60 minute




How to operate

  • Need confirmed the external battery full charge first.(The battery LED can read the power)
  • Turn on the green switch of handle ,the jammer gun starts working
  • The "pinion" in the upper right corner indicates the setting. You can set "Vibration", "Ringing", "Light dark", "Language".(When the "black fly" drone is detected, the alarm and vibration prompts, and the display screen will show that the current "black fly" has no frequency band.)
  • When detect the drone direction click the drone image ,get into detection interface.There are two directional indicating discs .Hold the device slowly in a clockwise direction, with the left disk in the real-time direction and the right disk in the suspected direction. The greater the "value" displayed above, the greater the signal strength in this direction. When the left and right disk Pointers are consistent, the direction of the drone is directly in front of it.
  • After entering the strike interface, click the corresponding frequency band position to select the strike frequency band. The interface that does not select the frequency band is displayed as natural color, and the interface that has selected the frequency band is displayed as gray. Interference signal emitting interface indicator is displayed in red, the ON button below is fully on

Pictures:

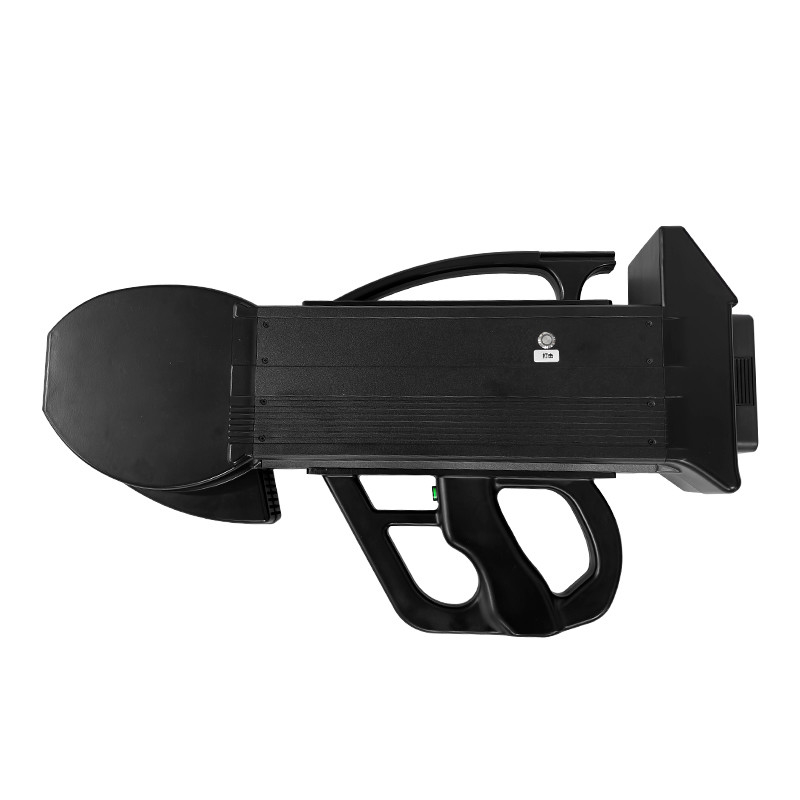

TX 1.5km portable  jammer  Full-band drone anti-drone jammer with positioning screen 1

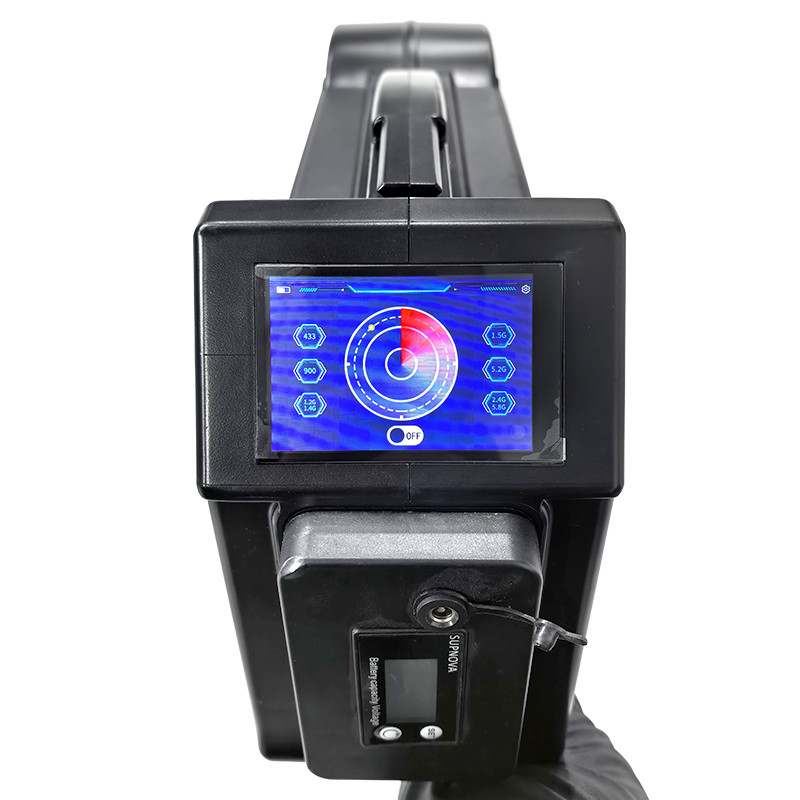

TX 1.5km portable  jammer  Full-band drone anti-drone jammer with positioning screen 2

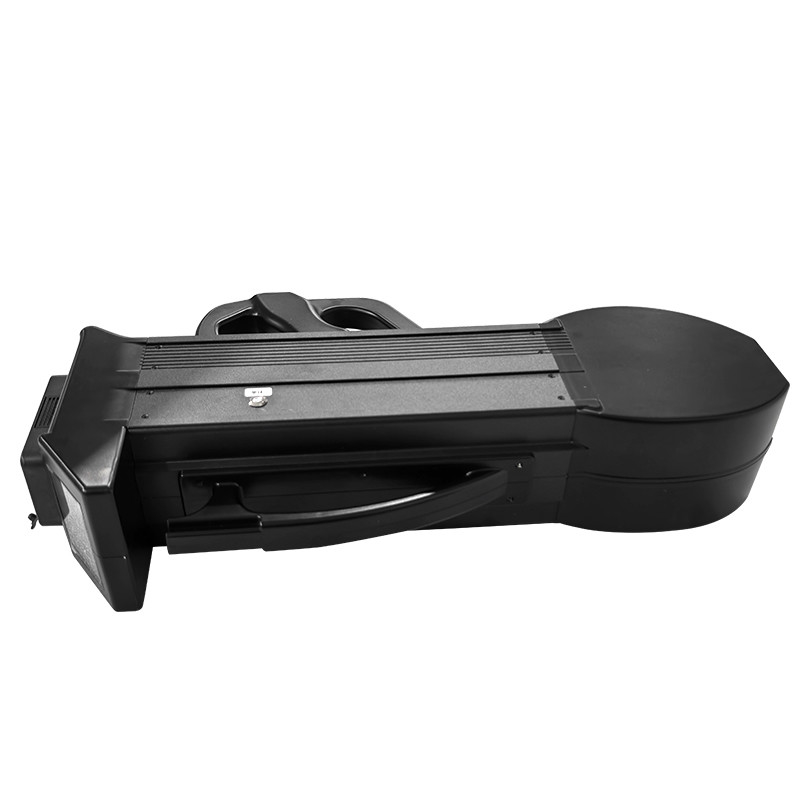

TX 1.5km portable  jammer  Full-band drone anti-drone jammer with positioning screen 3

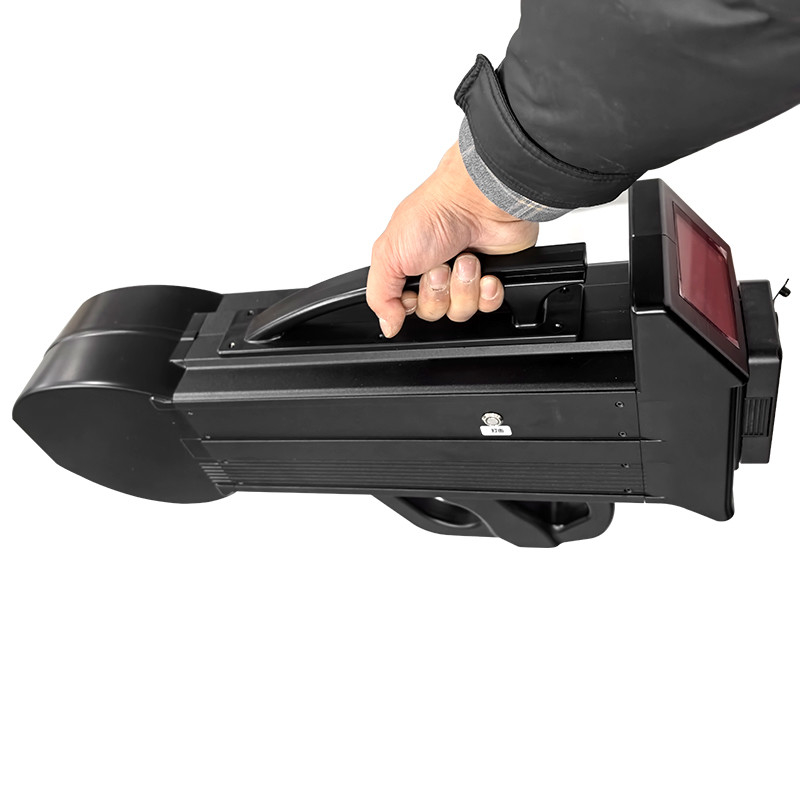

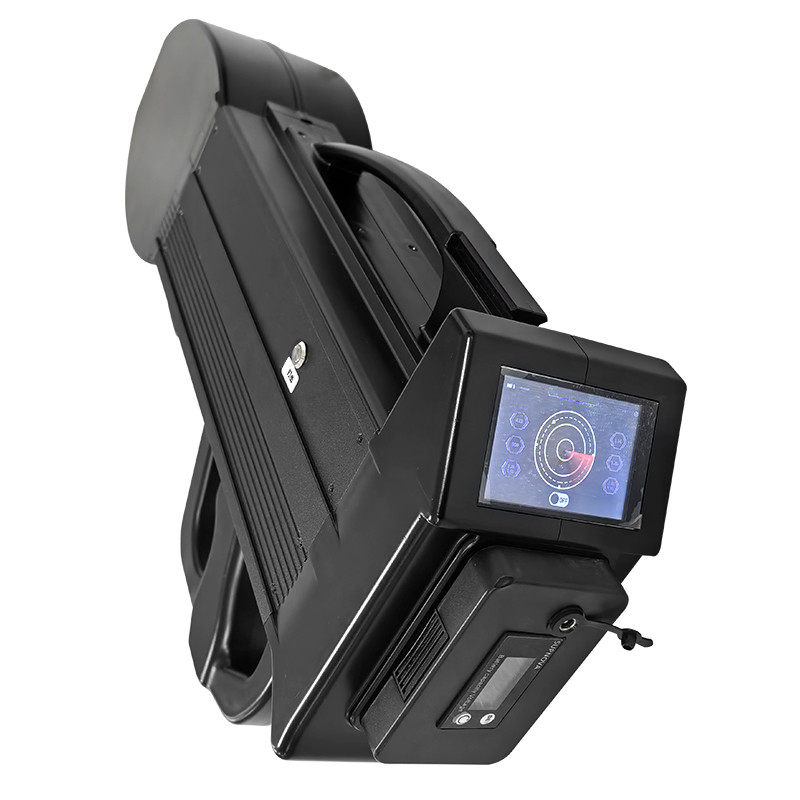

TX 1.5km portable  jammer  Full-band drone anti-drone jammer with positioning screen 4
