Detail Information

Type:	Sector Antenna	Frequency Band:	Wholesale Sector Antennas (900mhz 1.2GHz, 2.4GHz, 5.8GHz) For Outdoor Communication Base Stations.
Shield Bands:	3.5/14/14/14dbi	VSWR:	＜2.0
Polarization:	Vertical	Horizontal Bandwidth:	95/65/65/65±10°
Vertical Bandwidth:	55/22/22/22±10°5
Highlight:	10 Bands Mobile Signal Blocker , CE Approved Mobile Signal Blocker

Product Description

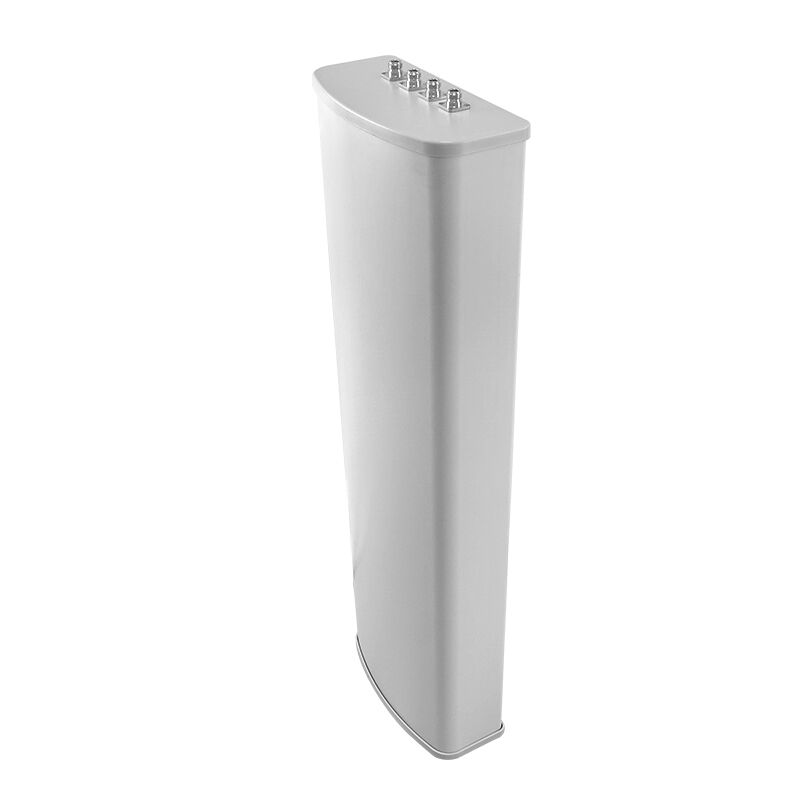

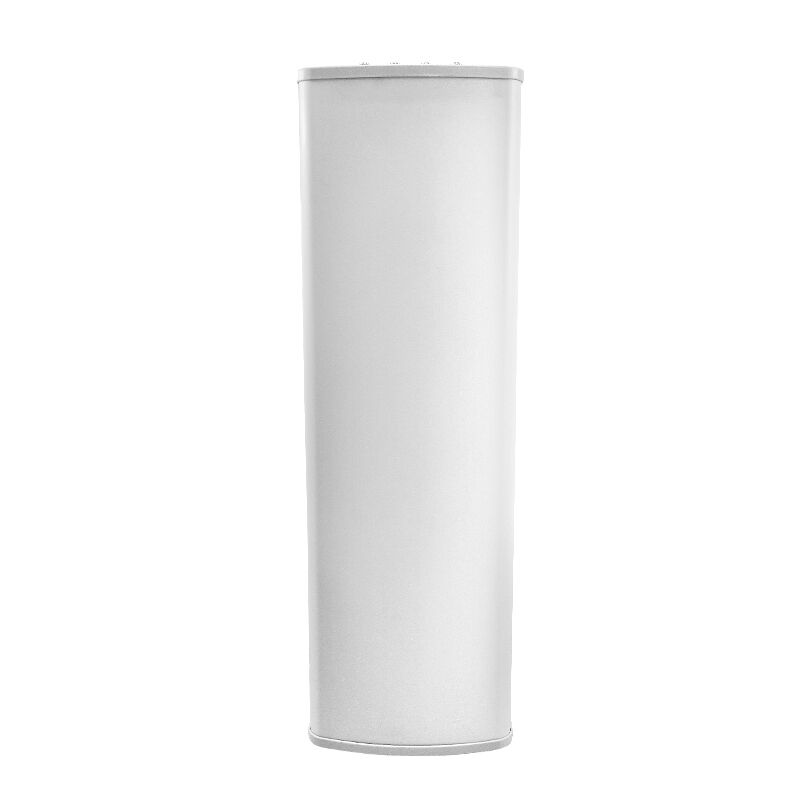

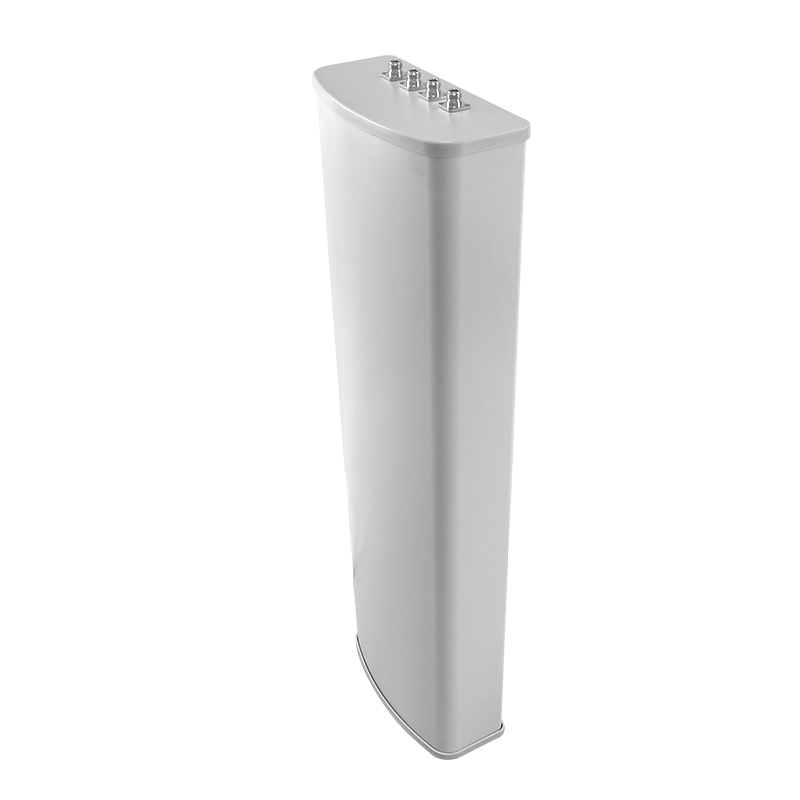

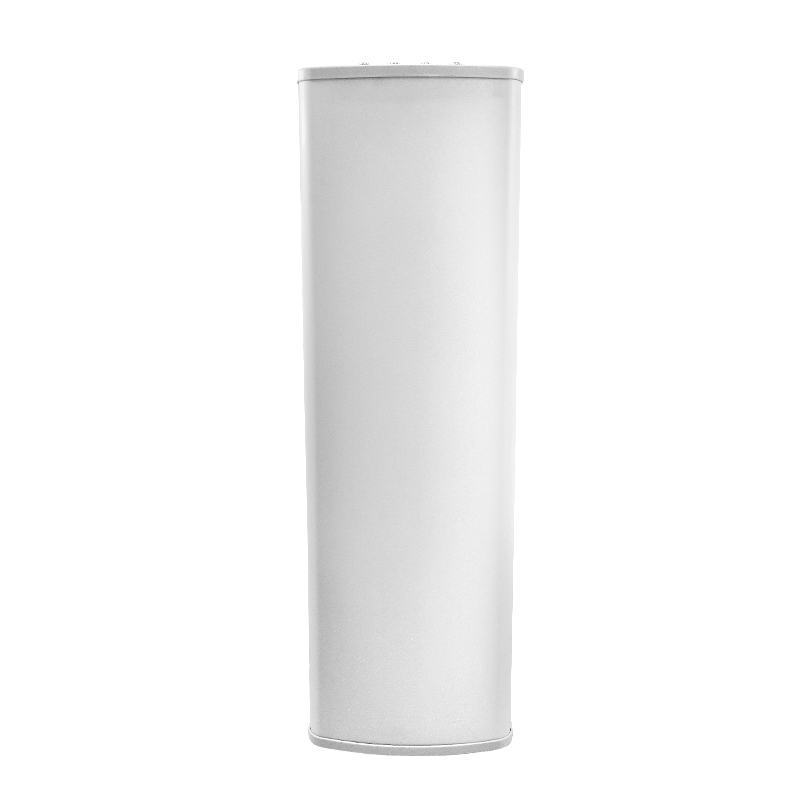

PVC sector antennas 1.2GHz, 2.4GHz, 5.8GHz for outdoor communication base stations.

This 4-band PVC sector antenna allows for flexible frequency band combinations; four antennas per group provide 360° omnidirectional signal radiation. It is an essential component of signal base stations. Customization is supported for UHF, VHF, and ELF frequencies. The external PVC waterproof material provides windproof, dustproof, waterproof, and corrosion-resistant properties. Common frequency bands such as 200MHz, 300MHz, 800MHz, Wi-Fi, GPS, GNSS, and FPV can all be customized.

Product features :

1.Multi-band combination provides wide signal coverage

2.Ultra-high gain 14dbi

3.It can be used in anti-drone and communications fields.

4.Plate-like structure with adjustable angle

5.Frequency bands can be customized

Specifications :

Technical Specification
(Frequency Range)	30-55/2800-3000/4000-4200/5200-5400MHz
(Gain)	3.5/14/14/14dbi
(VSWR)	＜2.0
(Polarization)	Vertical
(Horizontal Bandwidth)	95/65/65/65±10°
(Vertical Bandwidth)	55/22/22/22±10°5
(Front to back ratio)	8/22/23/25db
(Input Impedance)	50Ω
(Maximum Input)	100W
(Input Connector)	4*N-K
(Lightning Protection)	DC Ground
Mechanical specifications
Dimension	*900420136*mm
(Packing Size)	*1050460260*mm
(Antenna Weight)	7.85kg
(Rated Wind Velocity)	31m/s
(Operational Humidity)	10-95％
(Radiomen Color)	Graynss
(Radome Material)	PVC
(Operation Temperature)	-55-70°C
(Installation Method)	Installation of holding pole

Pictures:

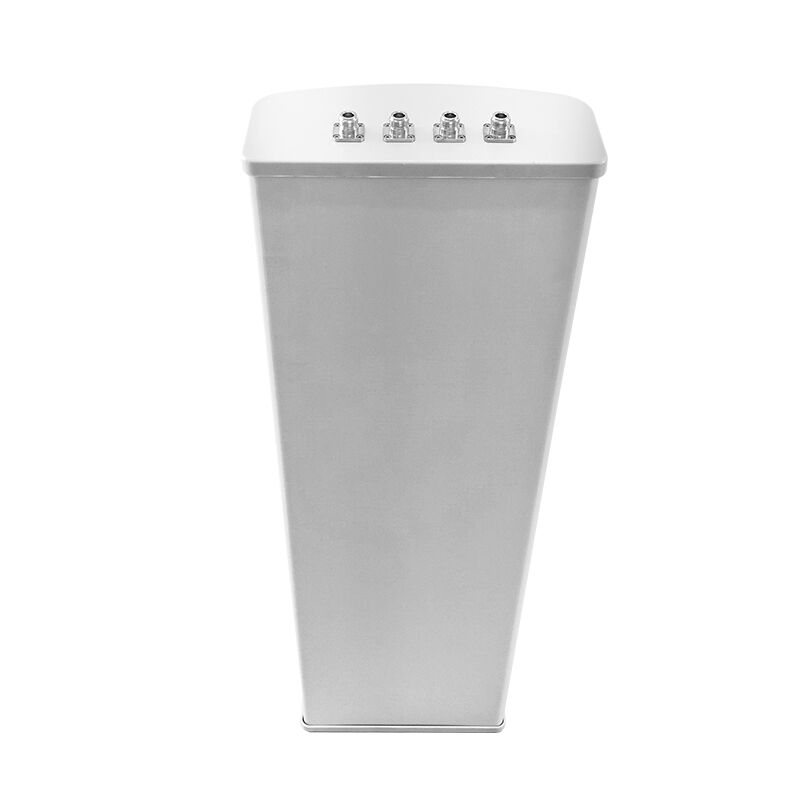

PVC sector antennas 4 band 900mhz 1.2GHz, 2.4GHz, 5.8GHz for outdoor communication base stations. 0
