Detail Information

Minimum Detection Altitude:	≤0meter	Detection Success Rate:	≥99%
Weight:	12kg	Volume:	330mm X 330mm X 330mm
Protection Grade:	IP65	Power Dissipation:	80w
Position Accuracy(DJI):	Positioning Error<5 Meters	Detection Angle:	360°
Detection Range:	10km（Good Radio Environment）	Direction Finding Accuracy(exclude DJI):	Hover 3 °, Lateral Flight 8-9 °
Number Of Drones Detected Simultaneously:	≥60
Highlight:	30m UHF VHF Signal Jammer , 20W UHF VHF Signal Jammer , GPS 10 Antenna Signal Jammer

Product Description

Wireless Passive Automatic Detection System for 360° Airspace Monitoring

Name: Long-Range Drone Detector Wireless Passive Automatic Detection System for 360° Airspace Monitoring
Brand: Shenzhen TeXin electronic Co., Limited
SKU: TX-JZTC01
Price: 4,004.00 USD
Availability: InStock

1.1Brief introduction

TX-JZTC01 is a wireless passive automatic detection system that supports 360 degree omnidirectional detection coverage, which can detect the drones within 10KM, with advanced warning, black and white name recognition, ID recognition, and linkage automatic strike support for UAV defense.

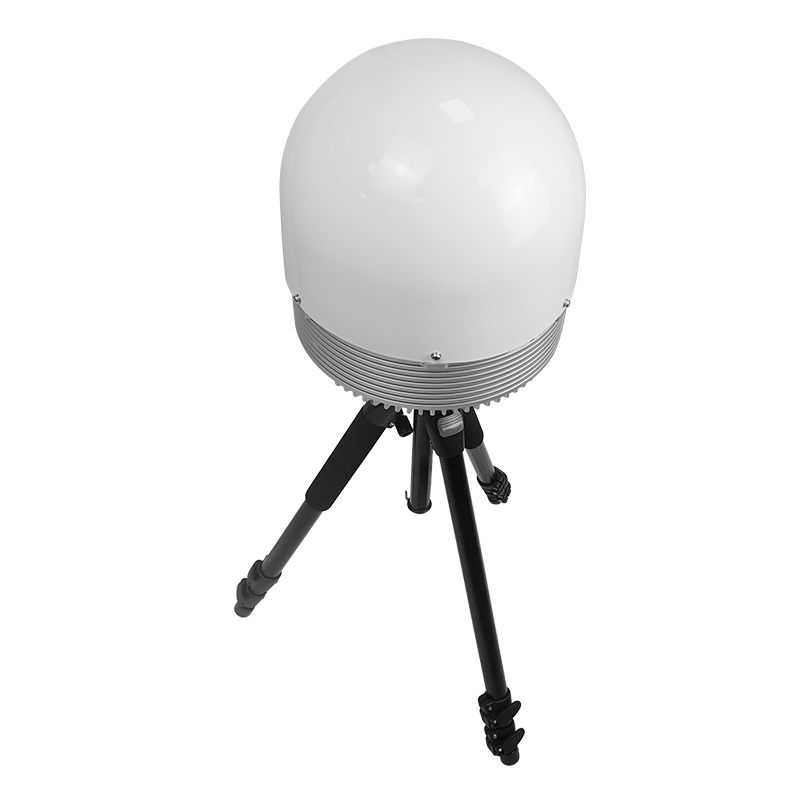

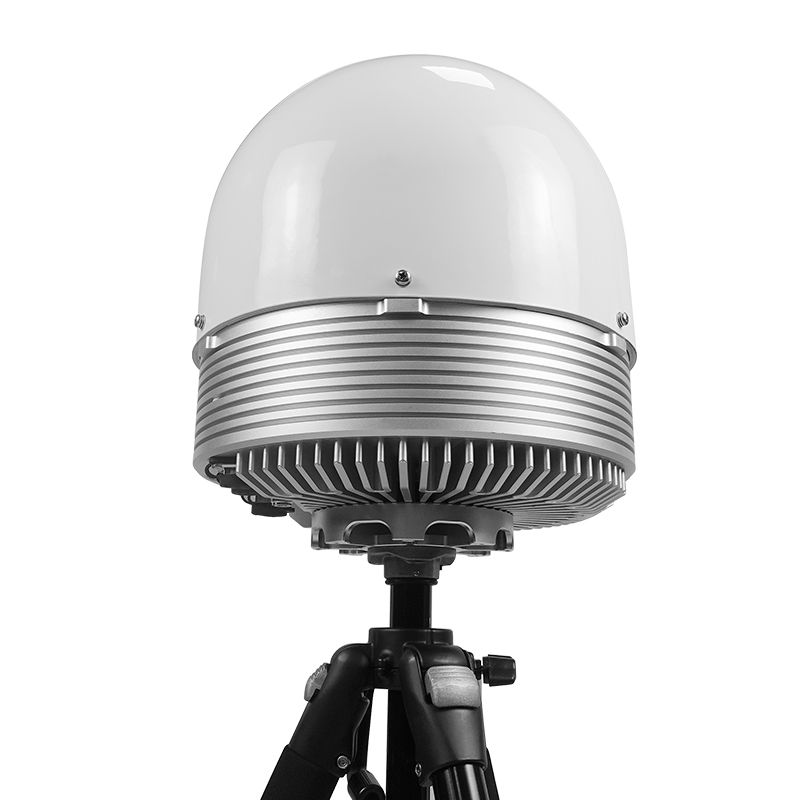

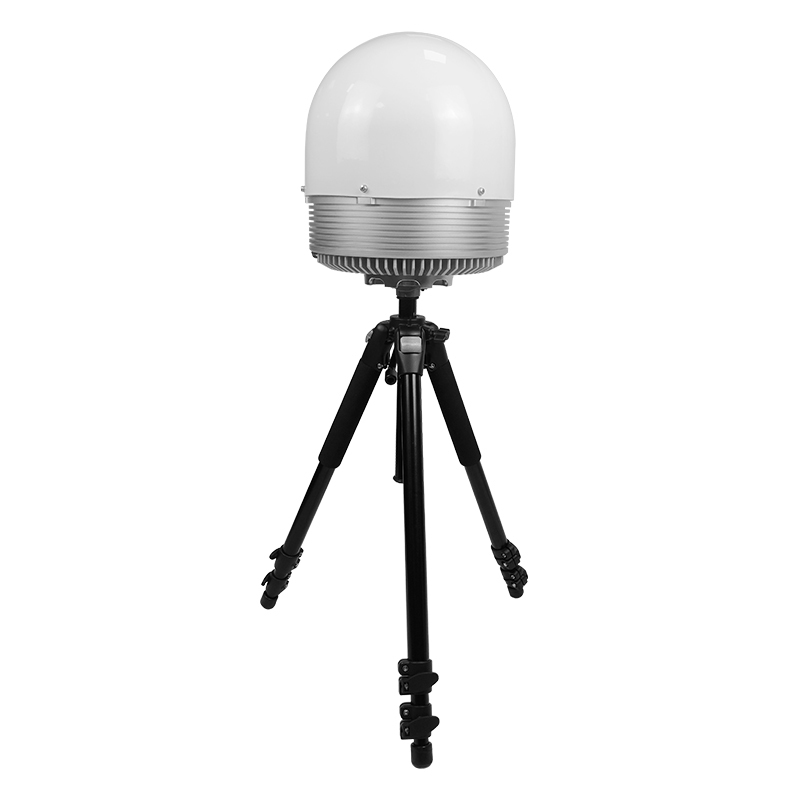

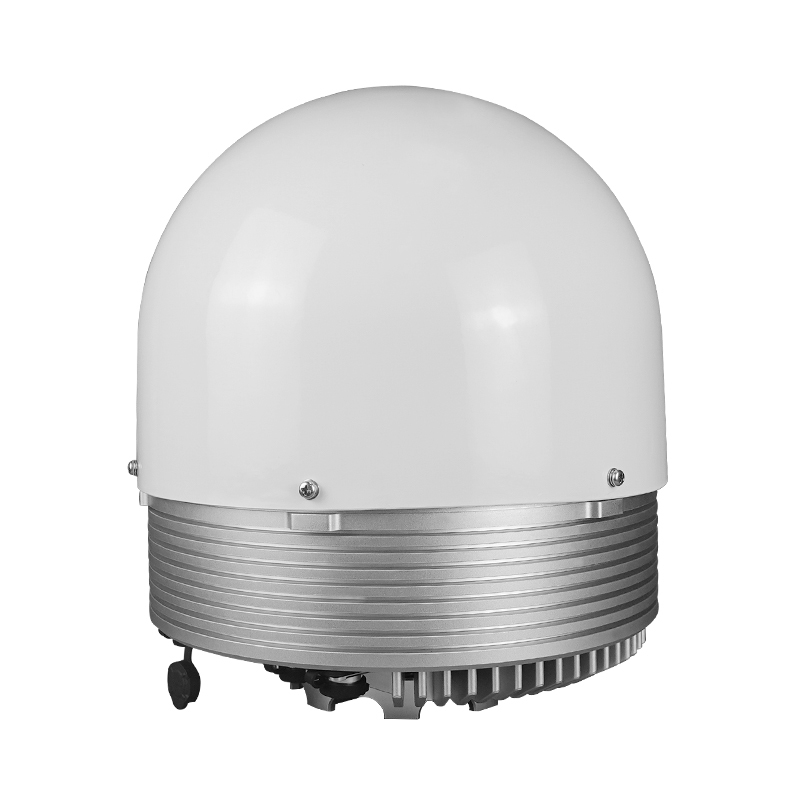

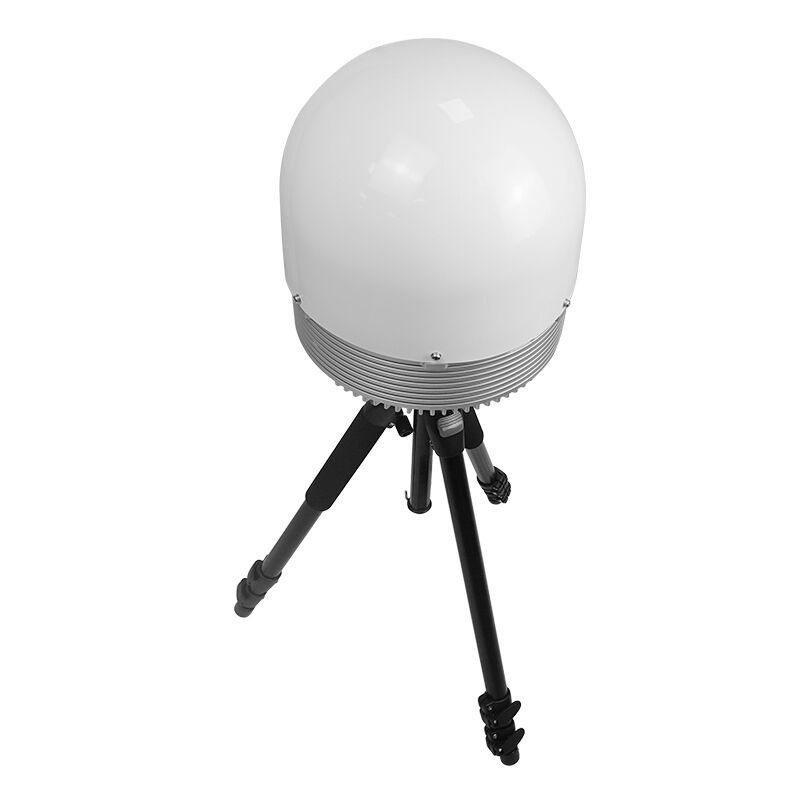

Long-Range Drone Detector Wireless Passive Automatic Detection System for 360° Airspace Monitoring 0

Long-Range Drone Detector Wireless Passive Automatic Detection System for 360° Airspace Monitoring 1

Function characteristics	Description
Drone detection	Adopting adaptive drone protocol control technology, deeply analyzing drone signals, identifying the unique ID of each drone, and accurately identifying drones. For some DJI models, the pilot position and return point coordinates can be obtained;
Black and White List	Accurately identify drone models and unique electronic fingerprints to achieve a black-and-white list, and simultaneously identify brands and corresponding ID numbers of ≥ 220 different drones (identity authentication).
Expand multi band strike	Capable of expanding the interference capability of multiple frequency bands, covering the vast majority of drones on the market+
Networking	The system can network multiple devices through a cloud server, which can observe the online/abnormal status of each device. It can remotely control the device through a mobile terminal (mobile IPAD), including but not limited to viewing the device system operation interface, receiving alarm information, viewing black and white lists, and enabling defense functions
Omnidirectional detection	The product has the ability to handle horizontal 360 ° omnidirectional interference
Portability	Installed with fixed poles and tripods, it can meet the protection needs of long-term deployment in key areas; Can also use a tripod to quickly erect to meet the protection needs of temporary tasks such as important meetings and group activities
Safety	With user management function, divided into administrators and users, and encrypting data to ensure user data security.

1.2Technical Indicators

Detection range	10km(Good radio environment)
Detection frequency bands	900Mhz,2.4Ghz,5.8Ghz
Accurate identification	Accurate identification of drone models and unique electronic fingerprints, simultaneous identification of ≥ 220 different drone brands and corresponding ID numbers (identity authentication), and identification of drone positions and remote control positions (some aircraft)
Detection angle	360°
Direction finding accuracy(exclude DJI)	Hover 3 °, lateral flight 8-9 °
Number of drones detected simultaneously	≥60
Position accuracy(DJI)	Positioning error<5 meters
Minimum detection altitude	≤0meter
Detection success rate	≥99%
Weight	12kg
Volume	330mm x 330mm x 330mm
Protection grade	IP65
power dissipation	80w

3.Shipping List

Hobit S1 Host
Antenna x1
Screwsx4,Support fixed connectors
Gps module x1
Power line x1
Network cable x1

Tag:

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	ISO9001
Model Number:	TX-JZTC01

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	Kraft paper box with protection foam
Delivery Time:	In 2 day
Payment Terms:	T/T,Paypal, Etc.
Supply Ability:	100,000pcs/month

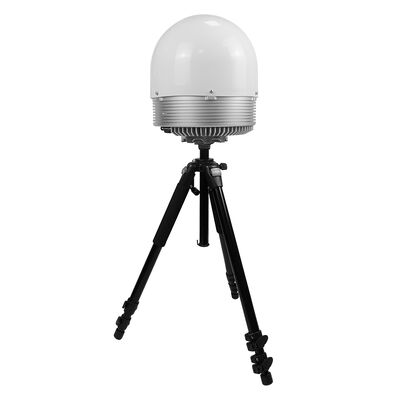

Long-Range Drone Detector Wireless Passive Automatic Detection System for 360° Airspace Monitoring

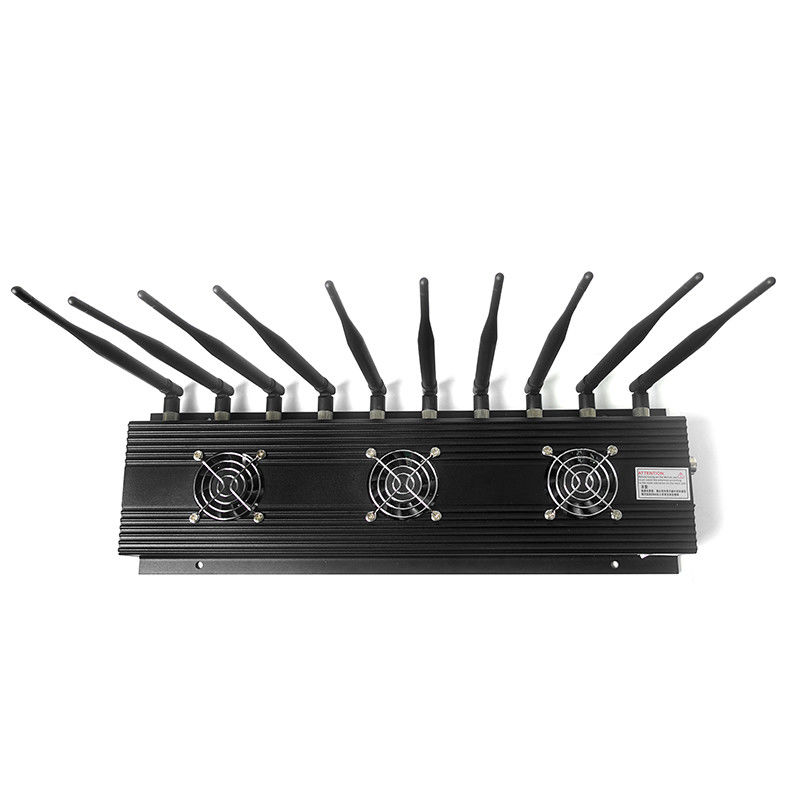

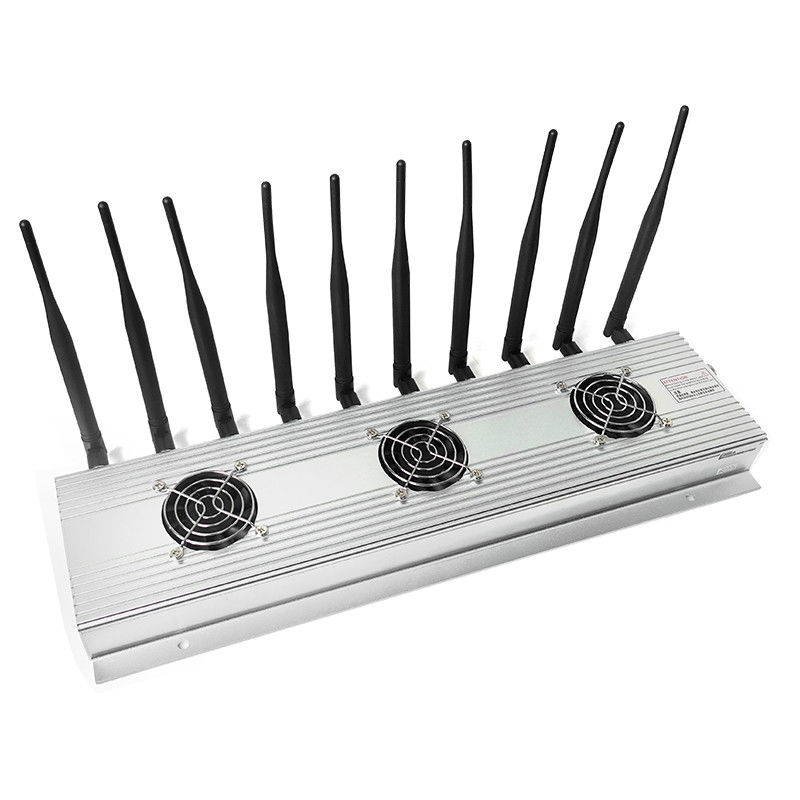

30m UHF VHF Signal Jammer
