omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: SGS, ISO9001
Model Number: LY-4243-3Q55VBLG
Document: Anti Drone product-TeXin.pptx
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: carton with foam
Delivery Time: 2 Days
Payment Terms: T/T, Paypal, Alibaba,etc.
Supply Ability: 100000
Detail Information
Name: Omin Antenna Gain(dBi): 3±0.5dBi
VSWR: ≤1.5 Material: Fiberglass
Horizontal Beamwidth(0º): 360º Color: Black
Ovality(dB): ≤±2dB Input Impedance: 50Ω
Maximum Input Power(W): 50W Lightning Protection: DC Ground
Highlight:

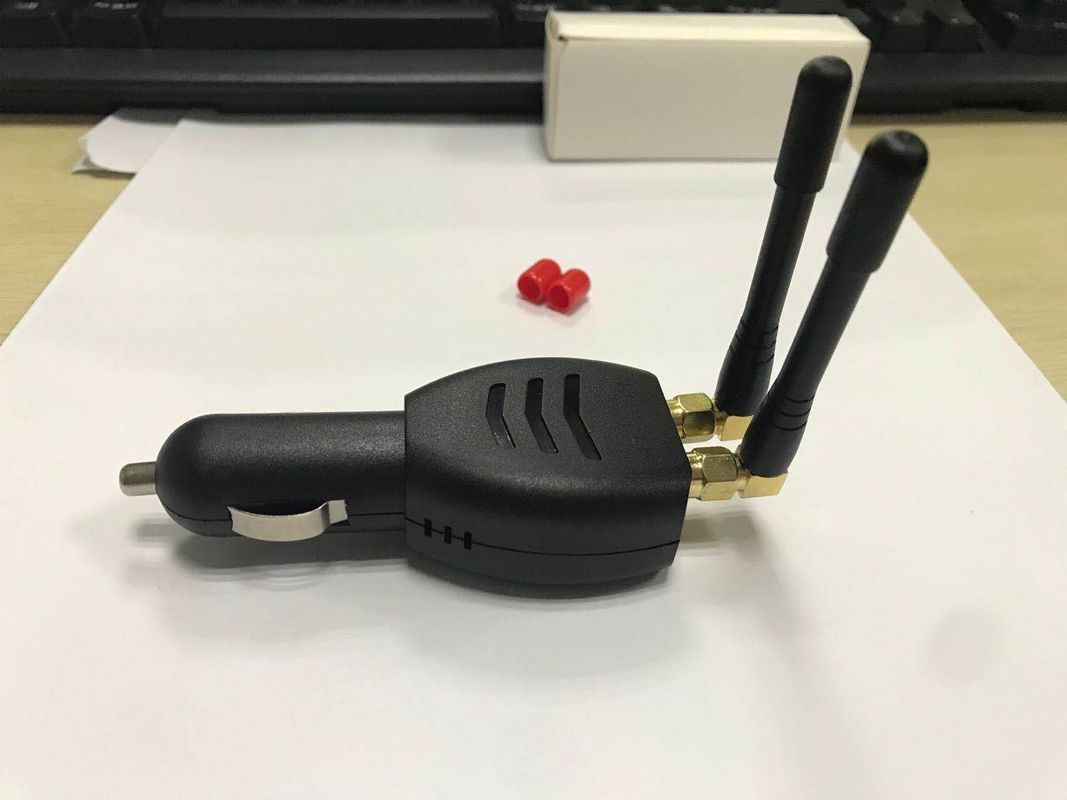

2 Antenna GPS Signal Jammer Blocker

,

1.5ghz Gps Tracker Blocker


Product Description

omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof

This antenna is 360 degree operate full covery for the outdoors ,the antenna using fiberglass material and the bottom designed spring that has strong anti shock features when it installed in car .

This antenna is equipped with lightning protection,takes DC Ground method ,so that under badly environment the antenna also can keep high efficiency to operate .

This antenna support customized ,we offer 50W 100 W 400MHz 500MHz 600MHz .Our product diversified to meet your needs.Tell us what you need and we will make it happen for you .

Features:
* Waterproof and lightning protection of antenna
* The VSWR protion under 2
* The bottom designed spring to anti shock
* Light weight and easy to instll
*ODM&OEM  support customized
*Full range emit signal
*The antenna inner takes high quailty copper material ,can enhance product performance
Electrical Specifications
FrequencyRange 428-438MHz
Gain(dBi) 3±0.5dBi
VSWR ≤1.5
Polarization Virtical

Horizontal Beamwidth(0º)

Vertical Beamwidth(0º)

360º

55±5º

ovality(dB) ≤±2dB
Input Impedance(Ω) 50Ω
Maximum input power(W) 50W
 Inpur connector type N-K
Lightning Protection DC Ground
Mechanical Specifications
Dimensions­mm(Height/Width/Depth) ɸ25*450mm
Packing size(mm) 470*350*220mm(50PCS)
Antenna weight(kg) 0.45KG
Rated Wind Velocity(m/s) 60m/s
Operational Humidity(%) 10- 95
Radome Color Black
 Radome material firbglass
Operating temperature(ºC) -40~55 º
Installution Method machine mount
Details photo:
omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof 0omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof 1omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof 2omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof 3omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof 4

Packing

omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof 5



omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof 6



Application

omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof 7

omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof 8

omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof 9

omni fiberglass with spring 3dbi antenna 428-438MHz long range operate waterproof 10
