Detail Information

Product Name:	Drone Detection	Frequency:	0.7-6.3GHz/ 2.4-2.5GHz/5.15-5.95GHz
Jamming Distance:	5km	Detection Angle:	360°
Weight:	25kg	Protection Grade:	IP65
Highlight:	wifi jamming device , wifi signal scrambler

Product Description

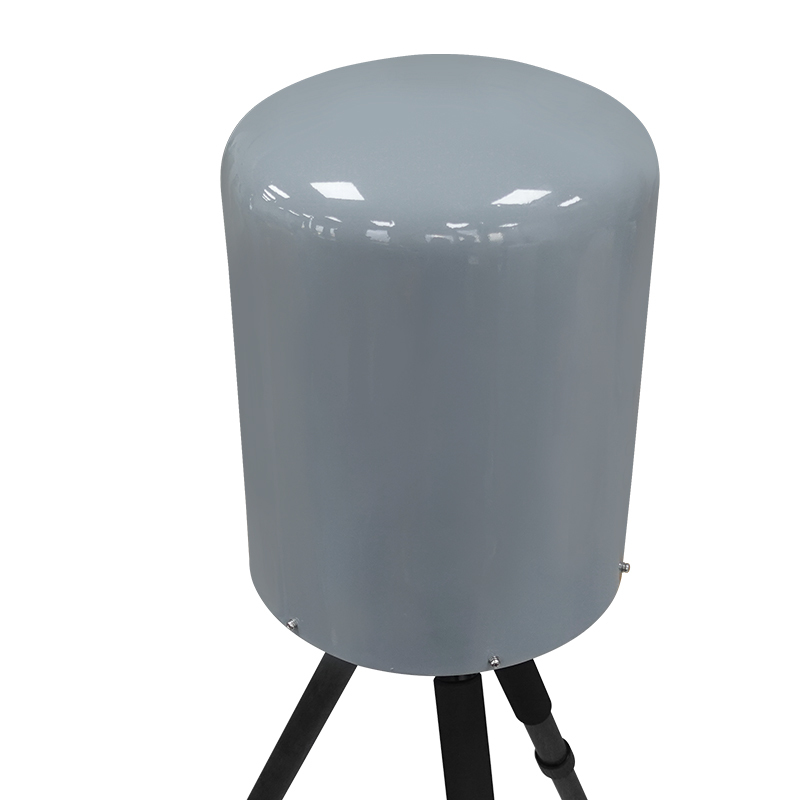

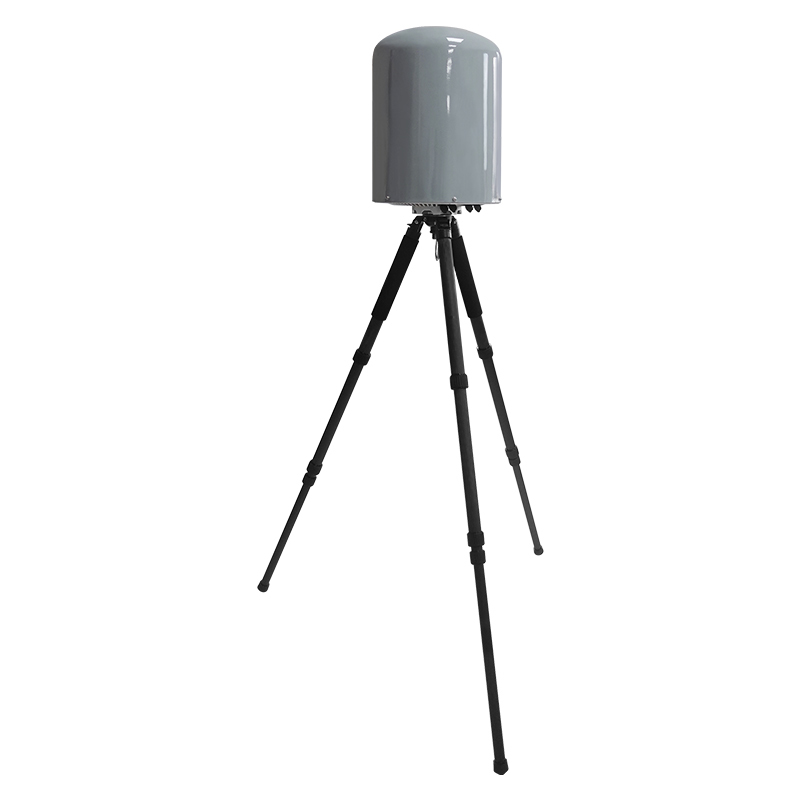

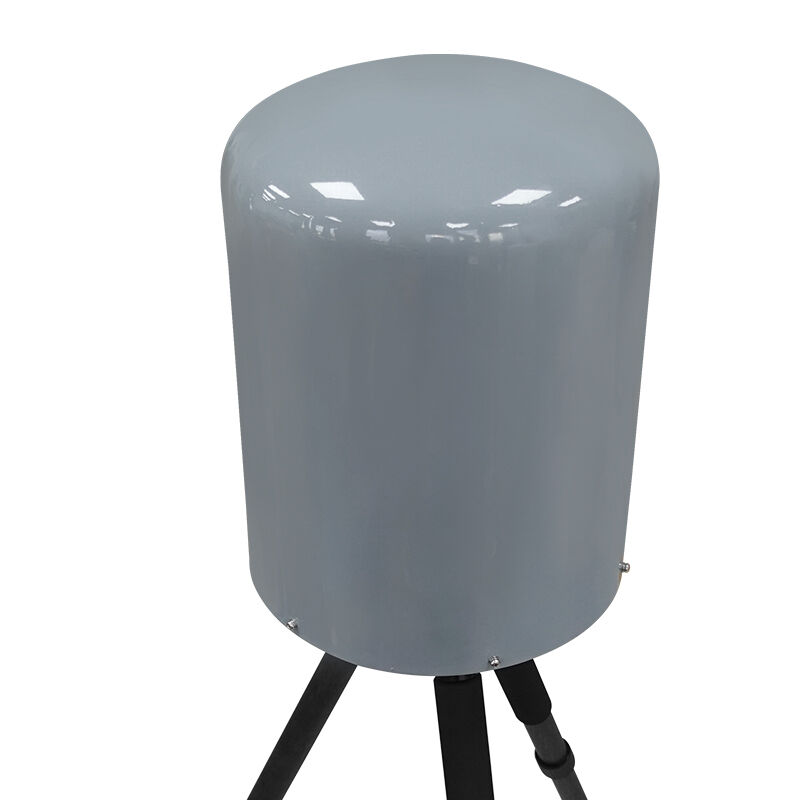

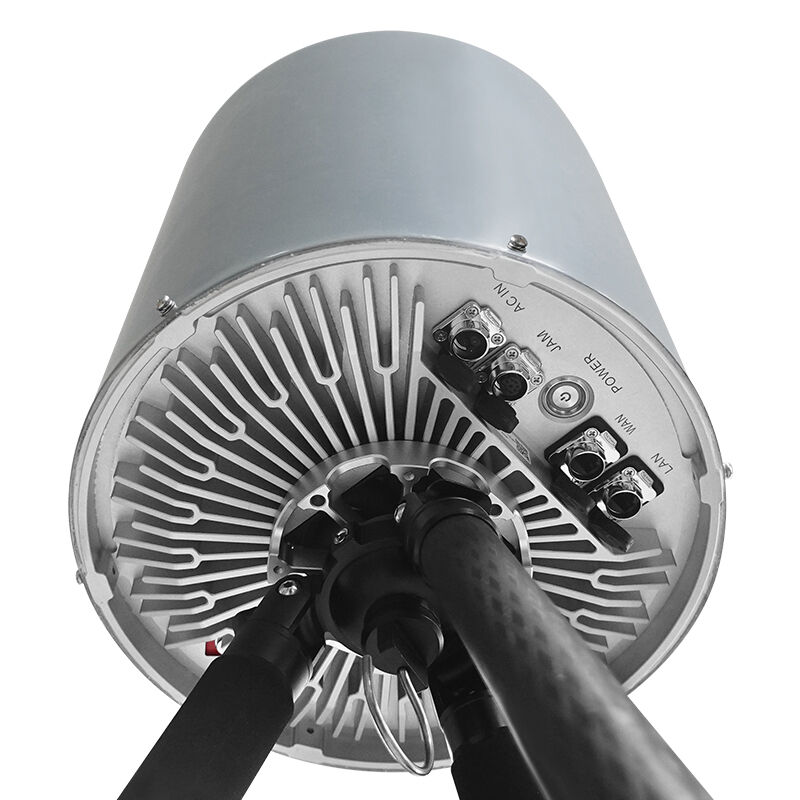

China supplier 5km outdoors drone detection Blacklist and whitelist safety protection

This detector boasts an impressive 5km detection range—far exceeding standard consumer-grade detectors. Whether in open fields, industrial complexes, or large event venues, it can identify approaching drones at an early stage, providing ample time for security personnel to assess the situation, issue alerts, and take response measures.

Our detector addresses this by covering an extensive frequency spectrum of 700-6300MHz—a range that encompasses most common drone communication and control bands. This product features 360° omni-directional detection capability. Its specially designed antenna array ensures uniform signal reception across all angles.

Feature

700-6300MHz full air space detection
Detecting distance around 5km(Increasing antenna gain can extend the detection distance)
Can extract drone signals under noise interference level (SNR -10 ~ -15dB)
Analysis DJI FPV date Including pilot location, blacklist and whitelist,connect to Bluetooth to update the firmware
Provide FPV drone video image output,connect to Bluetooth to update the firmware

Application

It is used to cooperate with the portable drone interference setting to compensate for the untimely detection of drones during work; It is used for mobile duty of police personnel and vehicles, and detects surrounding drones as soon as possible.By locating the position of drone pilots, we can effectively combat illegal flying. By analyzing DJI drone data, we can better deal with jamming drones.

Regular detection range	5km(Good radio environment)
Detection frequency bands	0.7-6.3GHz/ 2.4-2.5GHz/5.15-5.95GHz
Identify Type	FPV Simulation Image Transmission OFDM HD Image Transmission
Detection angle	360°
Sensitivity	Better than -96dBm (FPV signal Bw=6MHz) Better than -90dBm (OFDM signal Bw=20MHz)
Detection distance	＞2km (OFDM) ＞4km (FPV 5.8G/2W) (The measured reliable distance when using a 2dBi gain receiving antenna. The actual antenna gain increases by 6dB, and the detection distance can be doubled.)
UART Parameters	115.2kbps/TTL3~5V compatible
Power supply	DC 4.75 ~36V
Power consumption	＜3.5W
Weight	25kg
Volume	330mm x 330mm x 330mm
Protection grade	IP65
Working temp	-40 ~ +70℃
