YPM163840 RF Amplifier 1400-1800MHz 10W Power Amplifier Module

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: SGS, ISO9001
Model Number: YPM163840
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C, T/T, Paypal,etc.
Detail Information
Frequency Range: 1400-1800MHz Gain (Typ): 38dB
Operation: 12V Quiescent Current: 200mA
High Light:

rf power amplifier


radio frequency amplifier

Product Description

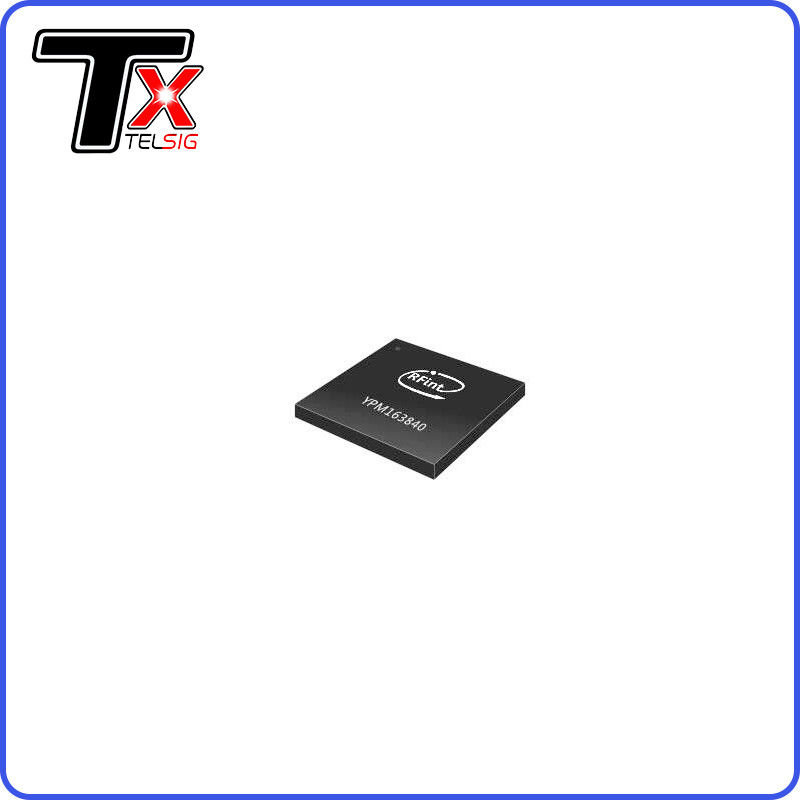

TXtelsig YPM163840 RF Amplifier 1400-1800MHz 10W Power Amplifier Module


The YPM163840 is a high-gain, high-power, and highly integrated Power Amplifier Module (PAM) intend for Compass Satellite Communication requiring up to 10W output power. The PAM provides a typical gain of 38 dB and output power of 10W with pulse signal input, typical quiescent bias condition is 12V at 200mA, the input and output are internally matched and require a minimum of external matching components, it is internally integrated with ESD protect unit. The YPM163840 is housed inside a miniature 6-lead, 10×10×1.1mm3 LGA package.


■ 1.4~1.8GHz Frequency Range
■ 38dB Gain (Typ)
■ 10W Output Power with Pulse Signal Input (Typ)
■ ≥20dB Input Return Loss
■ 12V Operation
■ 200mA Quiescent Current
■ Integrated ESD Protection Unit
■ Input and Output Matched
■ Minimum External Components
■ Advanced InGaP/GaAs HBT Technology
■ LGA Package 10×10×1.1mm3


■ Satellite Communication
■ Satellite Navigation


Ordering Information
■ YPM163840 1.6GHz Power Amplifier Module
■ YPM163840-EVB 1.6GHz YPM163840 Evaluation Board


Caution! ESD sensitive device:

ESD Rating: Class1C
Value: Passes≥1000V min.
Test: Human Body Model (HBM)
Standard: JEDEC Standard JESD22-A114

ESD Rating: Class IV
Value: Passes ≥1000V min.
Test: Charged Device Model (CDM)
Standard: JEDEC Standard JESD22-C101

MSL Rating: Level 3 at +260 °C convection
Standard: JEDEC Standard J-STD-020


Parameter Rating  Unit
Input RF Power 0 dBm
1st Stage Supply Voltage  -0.5 to +6.0
2nd Stage Supply voltage  -0.5 to +13.0
 Bias Voltage  -0.5 to +3.3
DC Supply Current 3500 mA
Operating Ambient Temperature  -40 to +85 °C
Storage Temperature  -55 to +150 °C


YPM163840 RF Amplifier 1400-1800MHz 10W Power Amplifier Module 0

Pin Description
Pin No.  Symbol  Description
1 RF IN RF input
2 VREF  Bias reference voltage
3 RF OUT RF output
4 VCC2 2nd Stage Supply voltage
5 VCC1  1st Stage Supply voltage
6 GND Ground connect
