Small 400 - 678MHz 10W RF Amplifier Module For Radio Modem YPM04074540

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: SGS, ISO9001
Model Number: YPM04074540
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C, T/T, Western Union, Paypal,etc.
Detail Information
Frequency Range: 400~678MHz Gain (Typ): 45dB
Output Power (Typ): 40dBm Quiescent Current: 60mA
High Light:

rf power amplifier

,

radio frequency amplifier


Product Description

TXtelsig YPM04074540 RF Amplifier 400~678MHz 10W Power Amplifier Module

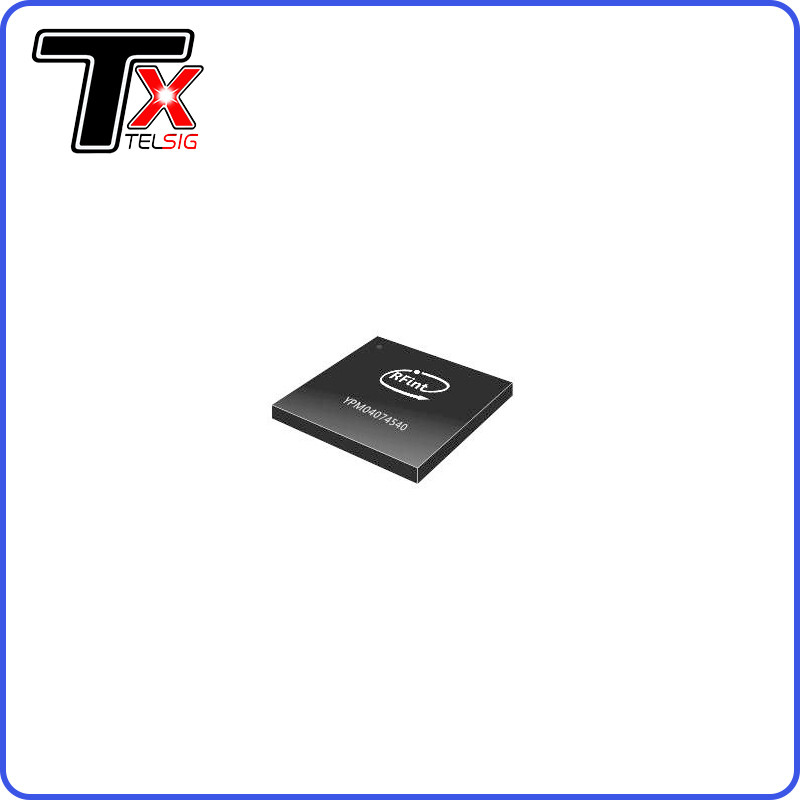

The YPM04074540 is a high-gain, high-power, and highly integrated Power Amplifier Module (PAM) intend for TETRA Communication requiring up to 8W output power. The PAM provides a typical gain of 45 dB and output power of 10W with CW signal input, typical quiescent bias condition is 28V at 60mA, the input and output are internally matched and require a minimum of external matching components, it is internally integrated with power detected unit and ESD protect unit. The YPM04074540 is housed inside a miniature 8-lead, 10×10×1.1mm3 LGA package.



Features
■ 400~678MHz Frequency Range
■ 45dB Gain (Typ)
■ 40dBm Output Power (Typ)
■ ≥15dB Input Return Loss
■ 28V Operation
■ 60mA Quiescent Current
■ Input and Output Internally Matched
■ Internally Integrated Power Detected Unit
■ Integrated ESD Protection Unit
■ Advanced InGaP/GaAs HBT and GaN pHEMT Technology
■ LGA Package 10×10×1.1mm3



Applications
■ TETRA
■ RADIO MODEM



Ordering Information
■ YPM04074540 400~678MHz Power Amplifier Module
■ YPM04074540-EVB 400~678MHz YPM04074540 Evaluation Board



Caution! ESD sensitive device:


ESD Rating: Class1C
Value: Passes≥1000V min.
Test: Human Body Model (HBM)
Standard: JEDEC Standard JESD22-A114


ESD Rating: Class IV
Value: Passes ≥1000V min.
Test: Charged Device Model (CDM)
Standard: JEDEC Standard JESD22-C101



MSL Rating: Level 3 at +260 °C convection
reflow
Standard: JEDEC Standard J-STD-020

Parameter Rating  Unit
Input RF Power 0 dBm
1st Stage Supply Voltage  -0.5 to +6.0  V
2nd Stage Supply voltage  -0.5 to +28.0 V
1st Bias Voltage  -0.5 to +3.3 V
1nd Bias Voltage  -5.0 to -2.0 V
Operating Ambient Temperature  -40 to +85 °C
Storage Temperature  -55 to +150 °C



Small 400 - 678MHz 10W RF Amplifier Module For Radio Modem YPM04074540 0



Pin Description
Pin No.  Symbol  Description
1 RF IN RF input
2 VB  1st bias voltage
3 NC No connect
4 VG  2nd bias voltage
5 RF OUT RF output
6 VDD 2nd stage supply voltage
7 PDET  Power detector
8 VCC 1st stage supply voltage
9 GND Ground connect
