Detail Information

Type:	Drone Detector	Working Temp:	-40 ~ +70℃
Power Supply:	DC 4.75 ~36V	Range:	5km
Protection Grade:	IP65	Size:	330mm X 330mm X 330mmmm
Weight:	25kg
Highlight:	wifi jamming device , wifi signal scrambler

Product Description

700-6300MHz Wideband 5km Long-Range Drone Detector

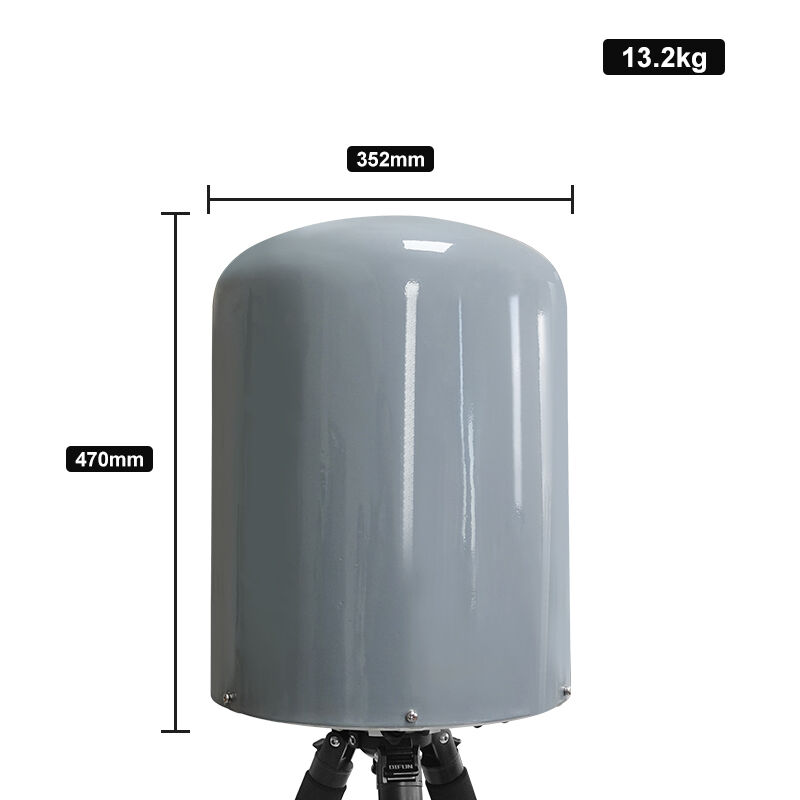

Drone detector 5km Detection Radius 700-6300MHz Wideband 360° Omni-Directional for UAV Early Warning 0

This detector boasts an impressive 5km detection range—far exceeding standard consumer-grade detectors. Whether in open fields, industrial complexes, or large event venues, it can identify approaching drones at an early stage, providing ample time for security personnel to assess the situation, issue alerts, and take response measures.

Our detector addresses this by covering an extensive frequency spectrum of 700-6300MHz—a range that encompasses most common drone communication and control bands. This product features 360° omni-directional detection capability. Its specially designed antenna array ensures uniform signal reception across all angles.

Features

700-6300MHz full air space detection
Detecting distance around 5km(Increasing antenna gain can extend the detection distance)
Can extract drone signals under noise interference level (SNR -10 ~ -15dB)
Analysis DJI FPV date Including pilot location, blacklist and whitelist,connect to Bluetooth to update the firmware
Provide FPV drone video image output,connect to Bluetooth to update the firmware

Function introduction

Drone detection	It can scan, receive and identify common civilian drone image transmission signals, demodulate parameters of signals that meet certain characteristics, and send warning data to the host computer.
Black and White List	Accurately identify drone models and unique electronic fingerprints to achieve a black-and-white list, and simultaneously identify ID≥ 220
Expand multi band strike	Capable of expanding the interference capability of multiple frequency bands, covering the vast majority of drones on the market
Networking	The system can network multiple devices through a cloud server, which can observe the online/abnormal status of each device. It can remotely control the device through a mobile terminal (mobile IPAD), including but not limited to viewing the device system operation interface, receiving alarm information, viewing black and white lists, and update online functions
Omnidirectional detection	The product has the ability to handle horizontal 360 ° omnidirectional interference

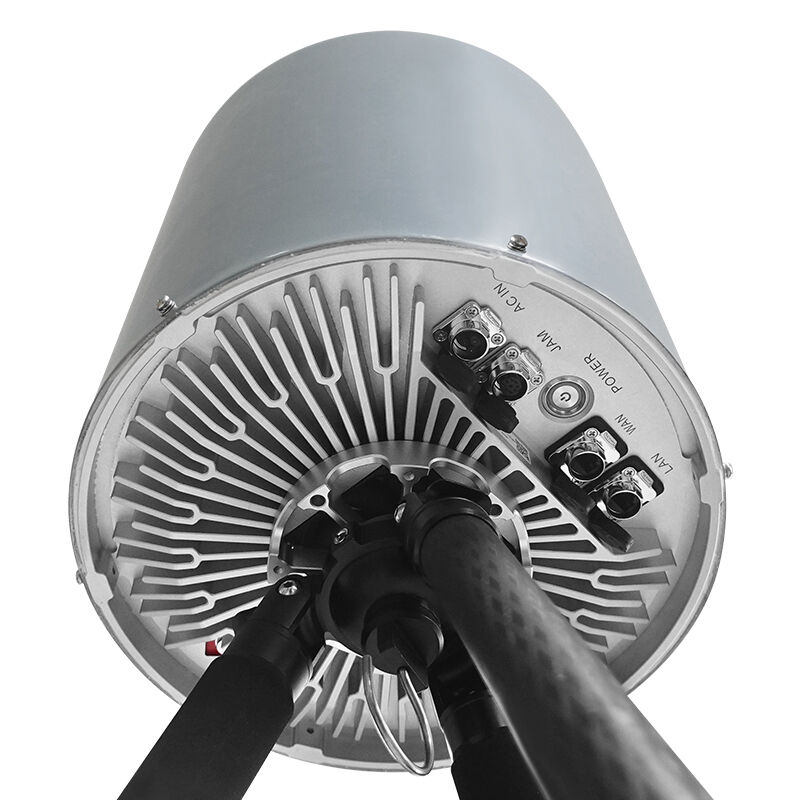

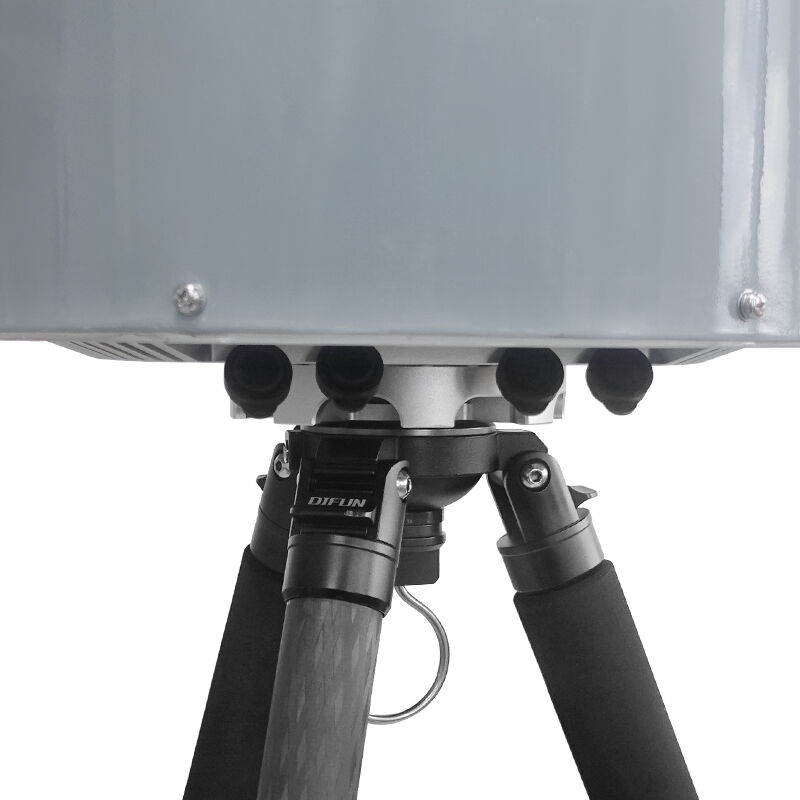

Portability	Installed with fixed poles and tripods, it can meet the protection needs of long-term deployment in key areas; Can also use a tripod to quickly erect to meet the protection needs of temporary tasks such as important meetings and group activities
Safety	With user management function, divided into administrators and users, and encrypting data to ensure user data security.

Technical Indicators

Regular detection range	5km(Good radio environment)
Detection frequency bands	0.7-6.3GHz/ 2.4-2.5GHz/5.15-5.95GHz
Identify Type	FPV Simulation Image Transmission OFDM HD Image Transmission
Detection angle	360°
Sensitivity	Better than -96dBm (FPV signal Bw=6MHz) Better than -90dBm (OFDM signal Bw=20MHz)
Detection distance	＞2km (OFDM) ＞4km (FPV 5.8G/2W) (The measured reliable distance when using a 2dBi gain receiving antenna. The actual antenna gain increases by 6dB, and the detection distance can be doubled.)
UART Parameters	115.2kbps/TTL3~5V compatible
Power supply	DC 4.75 ~36V
Power consumption	＜3.5W
Weight	25kg
Volume	330mm x 330mm x 330mm
Protection grade	IP65
Working temp	-40 ~ +70℃

Application

It is used to cooperate with the portable drone interference setting to compensate for the untimely detection of drones during work; It is used for mobile duty of police personnel and vehicles, and detects surrounding drones as soon as possible.By locating the position of drone pilots, we can effectively combat illegal flying. By analyzing DJI drone data, we can better deal with jamming drones.

After sales service

* User Instruction: we can offer online details photo illustration and video; local instruction is also available but with extra cost

* Online technical support:

our professional engineers will assist customers with technical problems

* Quality Assurance:

our company will perform the agreed responsibility and duty during the warranty period

* Fast reply of Customer feedback and questions

* All product enjoy 1 year warranty and Life time maintenance service

Tag:

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	SGS,ISO9001
Model Number:	TX-Detector

Minimum Order Quantity:	1
Price:	Negotiation

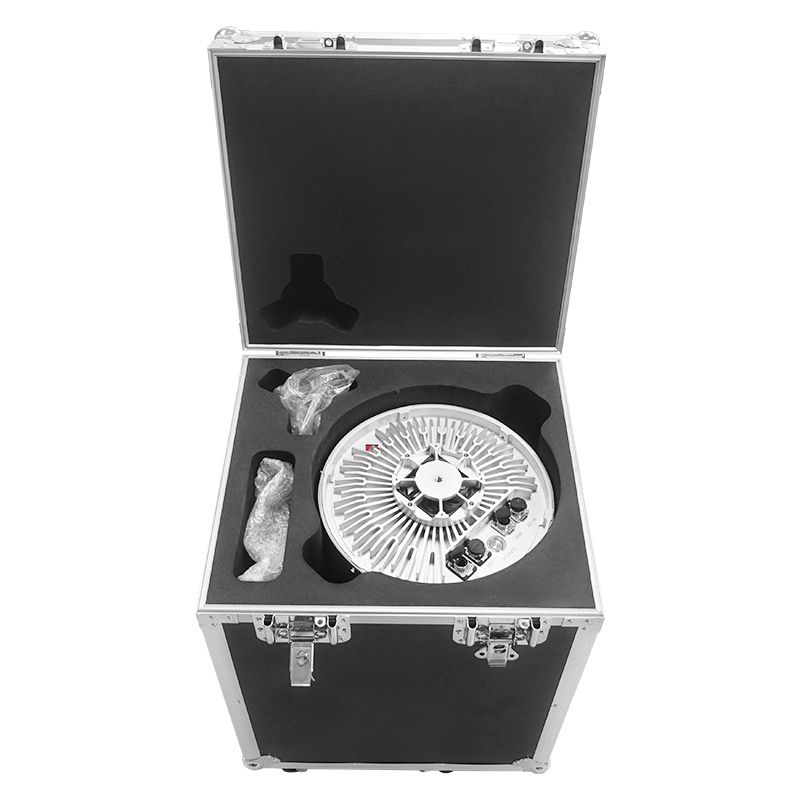

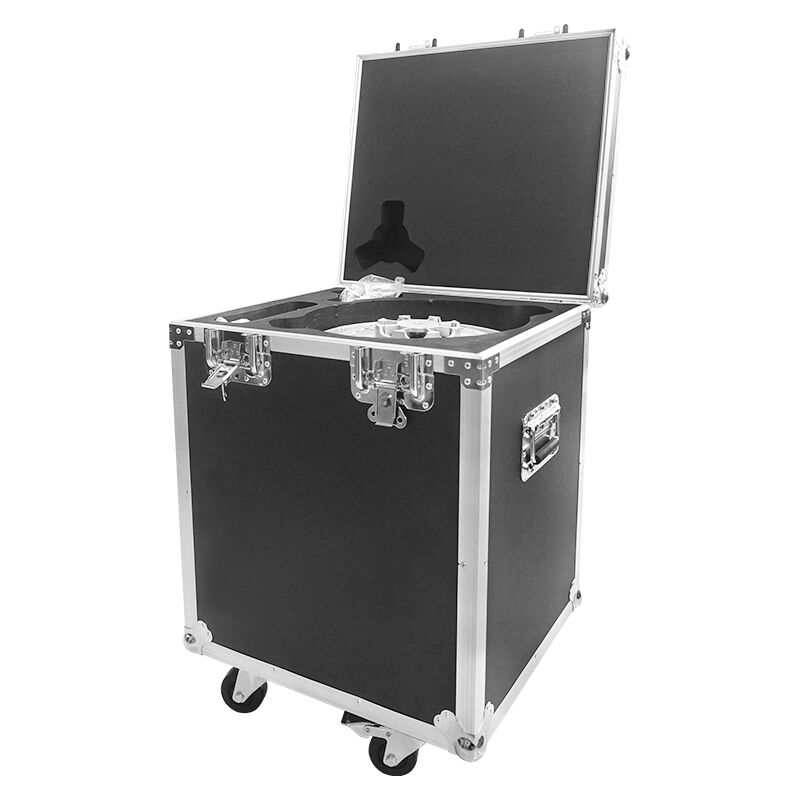

Packaging Details:	Durable case or box
