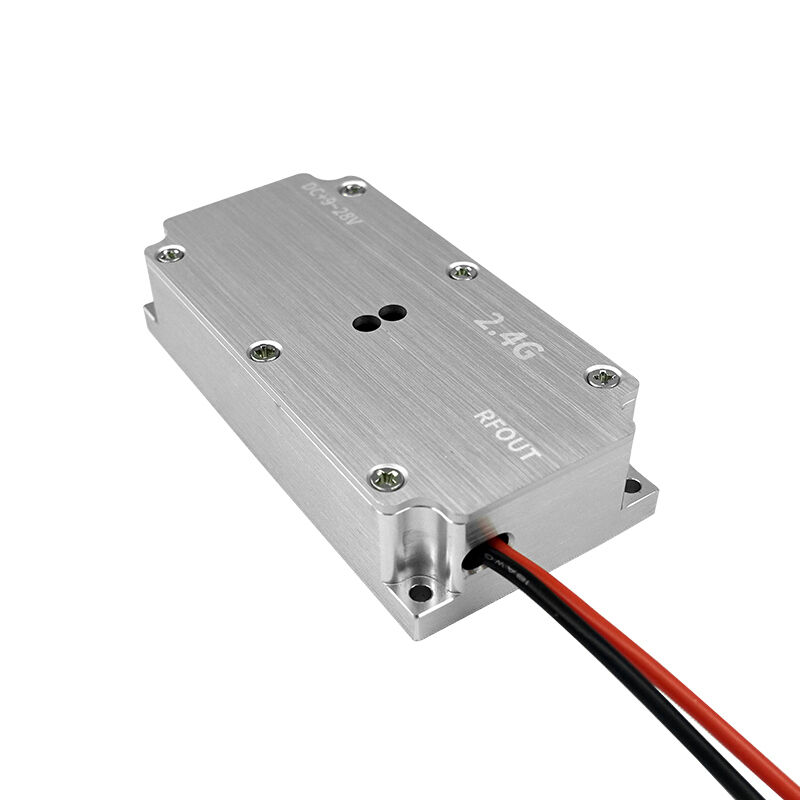

Texin wholesales 2.4GHz signal source modules for use in low-altitude defense panels

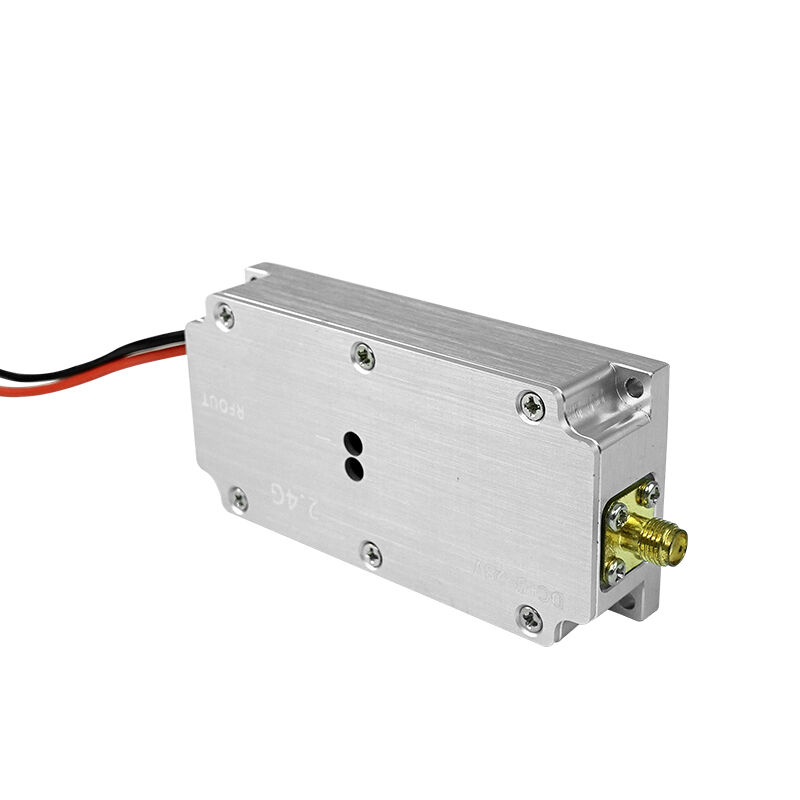

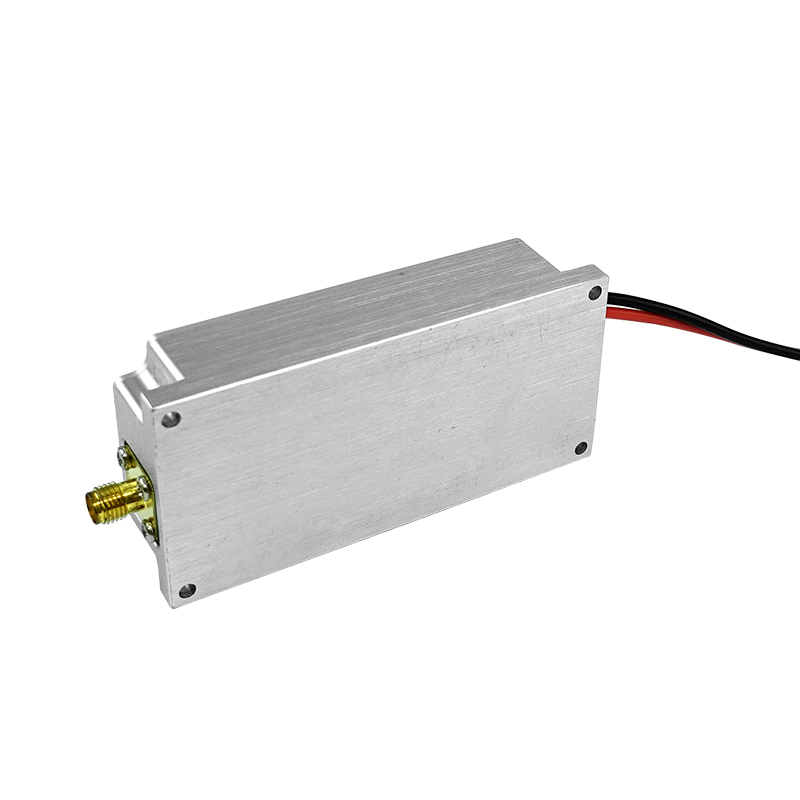

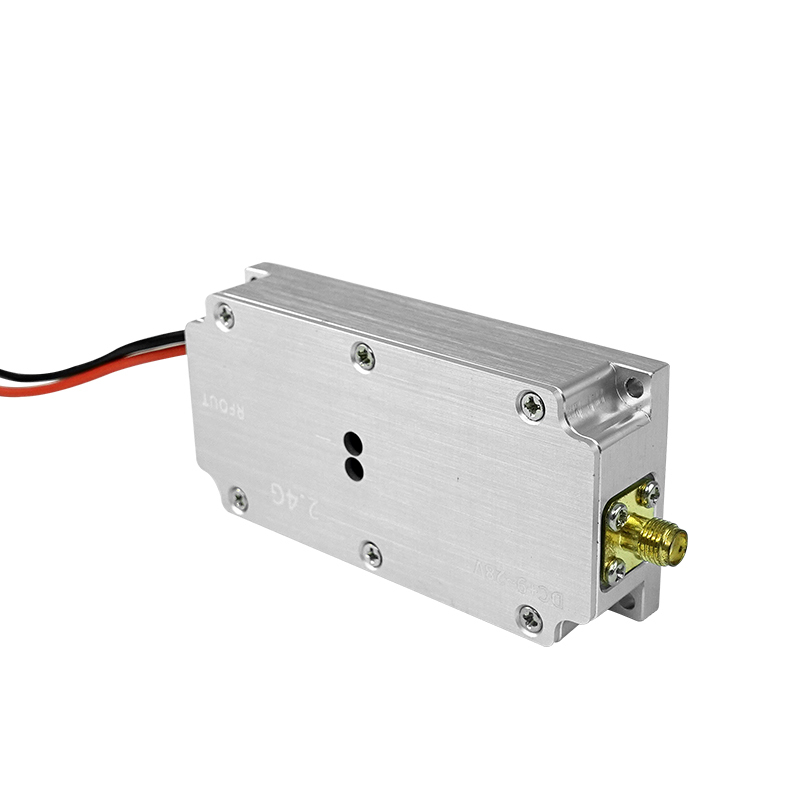

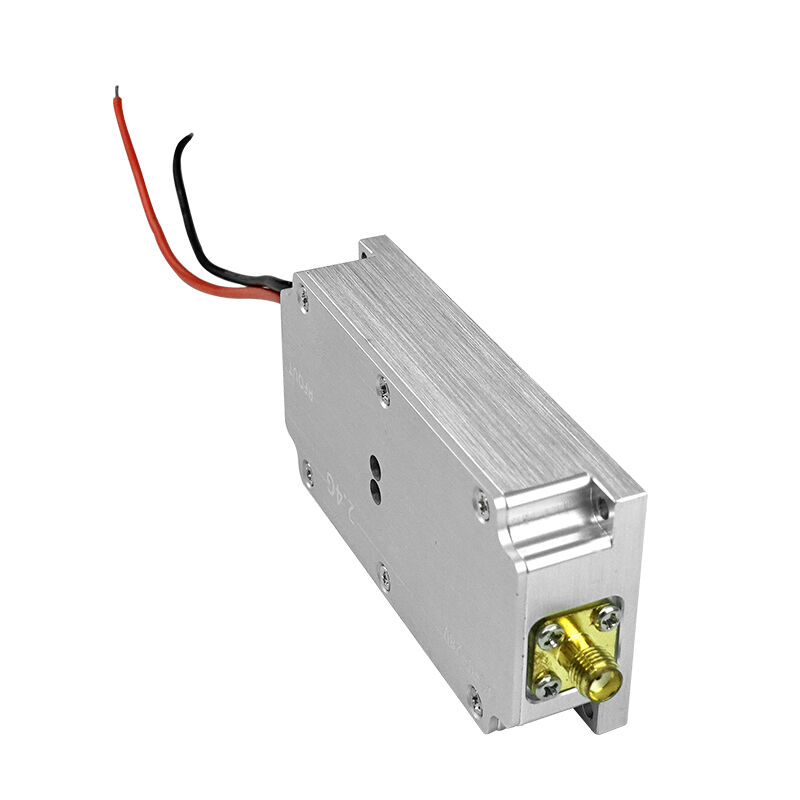

The Texin small-sized signal generator weighs 112g and outputs a 2.4GHz frequency. It features adjustable pulse width, amplitude, and repetition frequency, and requires stable operation between 12-24V. It can calibrate and test spectrum analyzers, and provide standard input signals to electronic devices and circuits. This small signal generator can also be used with power amplifiers to create jamming devices that protect electronic equipment in low-altitude environments from human safety.

Features

Frequency :2300-2400mhz

Voltage :12V-24V

Size :83*40*17mm
Weight:112g

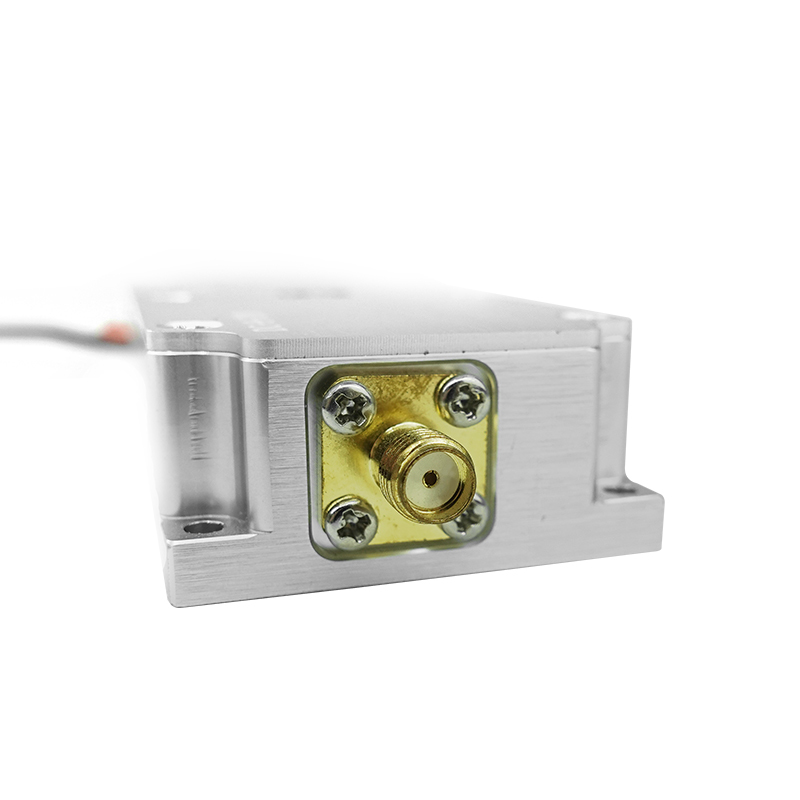

Connector :SMA

Date sheet

Function declaration

1. Basis function

The digital modulation signal parameters of the countermeasure source are set according to the remote control frequency band of the traverser,modulate Customized frequency,modulate jammer signal pass RF amplifier,and then output by antenna,forming jammer drone signal of wifi signal

2. application specification

Jammer modulehas use RF SMA connector which is impedance 50Ωconnector,Connect to the SMA input interface of the power amplifier module, and connect the output of the power amplifier module to the transmitting antenna,The interface impedance must be consistent

After integration, the working temperature should not beyound the working temperature of the module.

Main notice

• Power supply needs to carry 24V 1A

• When the output power is > 5W, it is necessary to strengthen the heat

dissipation treatment such as the thermal glue, heat sink and the cool fan

• Antenna or Load must be firstly connected before the power supply
