Outdoor Computer Connection Long Range UAV Drone Signal Jammer Blocker For Oil Depot

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: CE FCC ROHS SGS
Model Number: TX-JZ01
Minimum Order Quantity: 1
Price: Negotiated USD or RMB
Packaging Details: Durable Alluminum alloy case with wooden case outside
Delivery Time: in 2 days
Payment Terms: T/T,Paypal, Etc.
Supply Ability: 50,000pcs/month
Detail Information
Type: UAV DRONE RF Signal Jammer Range: Radius 1000 To 3000 Meter
Output Power: 190W/Customized Antenna: 16dBi For Each Band
Power Case: IP64 Level Color: Grey
Power Supply: AC110-240V To DC27V Duration Time: Continuous 24hour
Case Size: 38.5*30.7*15.6cm(not Including Antenna) Product Weight: 10.0kgs(antenna Not Included )
Installation Height: 3 To 18 Meter
High Light:

wifi jamming device

,

wifi signal scrambler

,

Oil Depot Signal Jammer Blocker


Product Description

Outdoor computer connection long range UAV drone signal jammer blocker for oil depot





Function

1. It can protect an area radius 1000-3000 meter away from UAV drone by stop remote control of wifi signal and GPS signal.

2. UAV status: no signal, no network, stop data and video transmission, stop action, land or return home

3. We can do 5.8G RF jammer module 40W or 50W, other module over 100W









Feature

1. Ultra high power 190W, combined with high gain directional antenna for each band

     to shield radius 1000 to 3000 meter area (depends on real environment and signal strength)

2. 3 channel or More channel signal shielding IP64 level main control engine, or other customized                          frequency 433MHz, 868MHz, 912MHz, 916MHz, GPS/Glonass navigation signal,

3. Seperate fequency RF module and Single Switch control to exactly shield specific signal

    also for customized frequency and easy maintainance

4. Efficient heat dissipation system: fast blow heat away to ensure long time operation

5. Optional monitoring software monitoring for client :  can support PC operation, phone APP control,

     drone detecting integrated system

6. VSWR protection: use power supply protection box, to ensure stable and safe power supply

7. Huawei latest high tech thunder protection box

8. Only influence downlink; No influence to base station



Outdoor Computer Connection Long Range UAV Drone Signal Jammer Blocker For Oil Depot 0

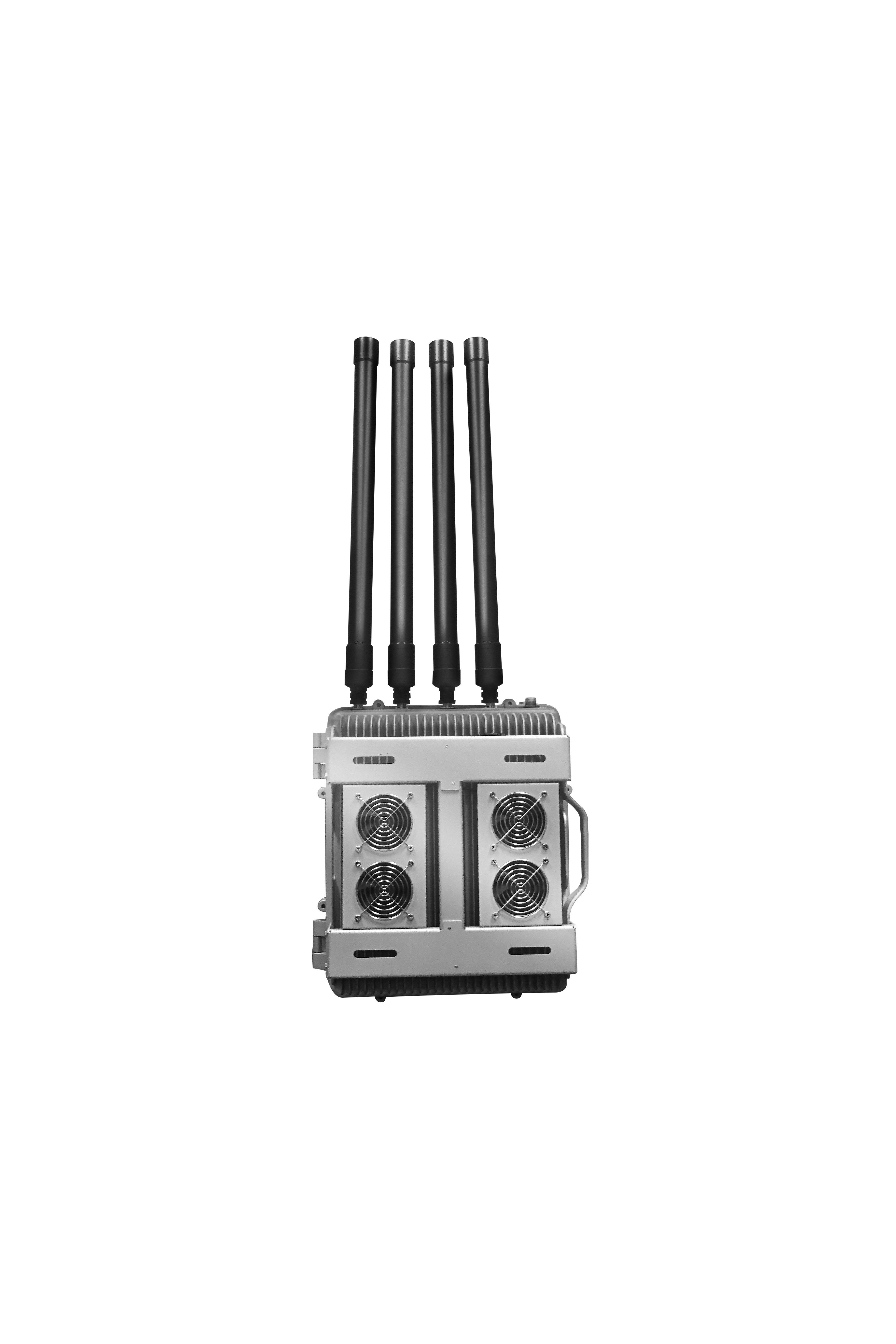

Main Engine Case

1. IP64 level die cast alluminum alloy design, Hinge lock protection for easy management and and anti-damage

2. N type connector(customized) to link with Antenna

3. Efficient heat dissipation system with built in fan and fin

4. Main switch to control the complete device work

5. Optional choice for directional or omni fiberglass antenna

6. Seperate module design, For single frequency control

7. LED indicates the working-on status

8. Over temperature and VSWR protection with power supply protection box

9. Please Ensure the anntenna is connected before turning power on

10. Slow set up circurity for long term reliabitly


Optional Frequency (10W, 20W,30W,40W, 50W, 100W; RF module also available )

CDMA/GSM850MHz:850-894MHz; 100W;
GSM900MHz:925-960MHz; 100W;
GSM/DCS1800MHz:1805-1880MHz; 100W;
3G/UMTS2100MHz:2110-2170MHz; 100W;
4GLte700MHz:790-826MHz; 100W;
4G/WiMAX2600MHz:2620-2690MHz; 100W;
WIFI2.4G:2400-2485MHz; 100W;
4G2500MHz:2500-2570MHz; 100W;
GPSL1:1570-1610MHz; 100W;
GPSL2:1200-1300MHz; 100W;
GPSL3:1380-1400MHz; 100W;
Wi-Fi5.8GHz:5725-5850MHz; 10W;
VHF:135-174MHz; 100W
UHF:400-470MHz; 100W
RC433MHz:433MHz; 100W
RC315MHz:315MHz; 100W
17.CDMA450MHz:450-470MHz; 100W;





Tests

Long time Aging test and Repeated Spectrum Analyzer tests to ensure products qualified



Outdoor Computer Connection Long Range UAV Drone Signal Jammer Blocker For Oil Depot 1

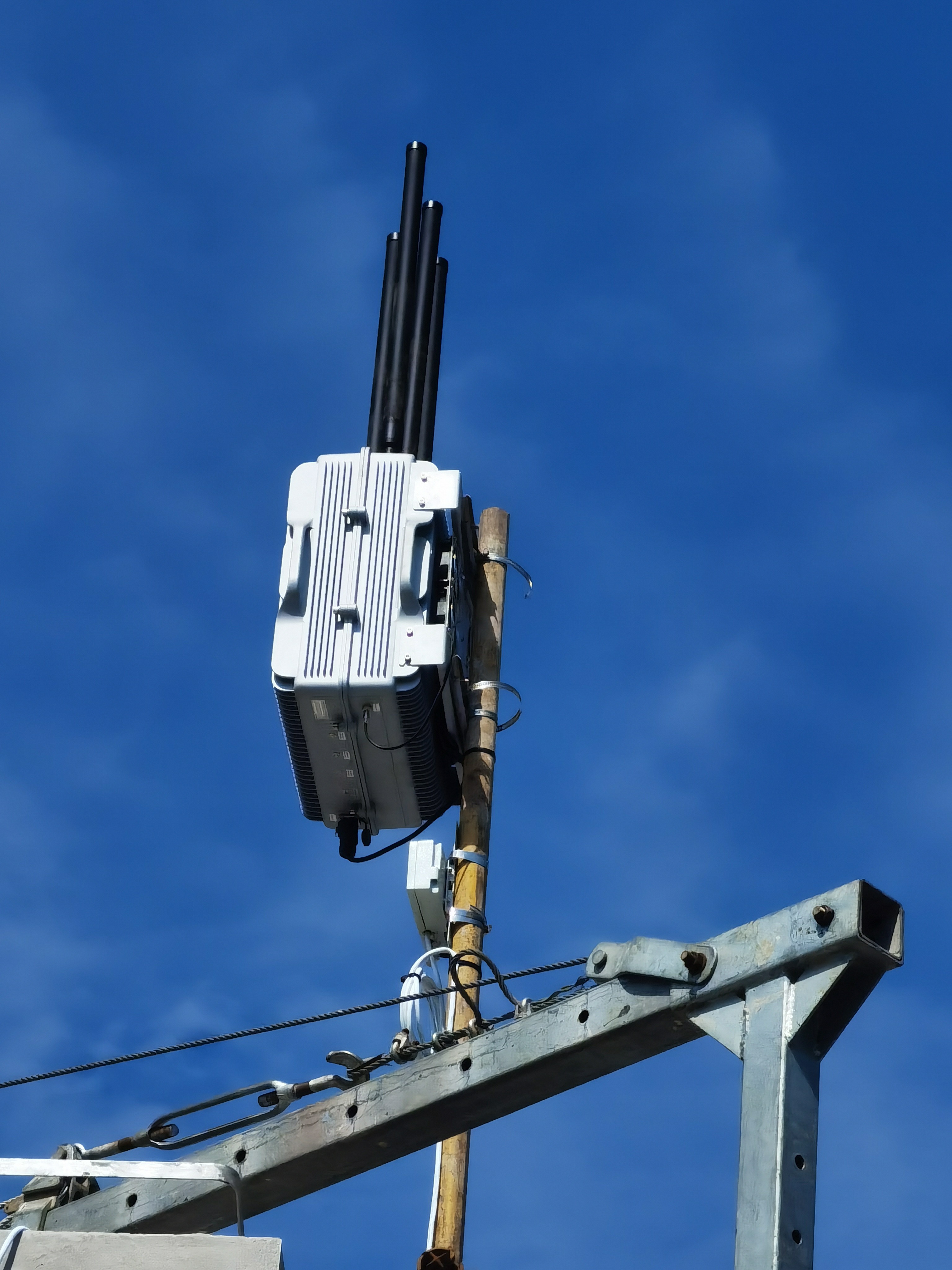

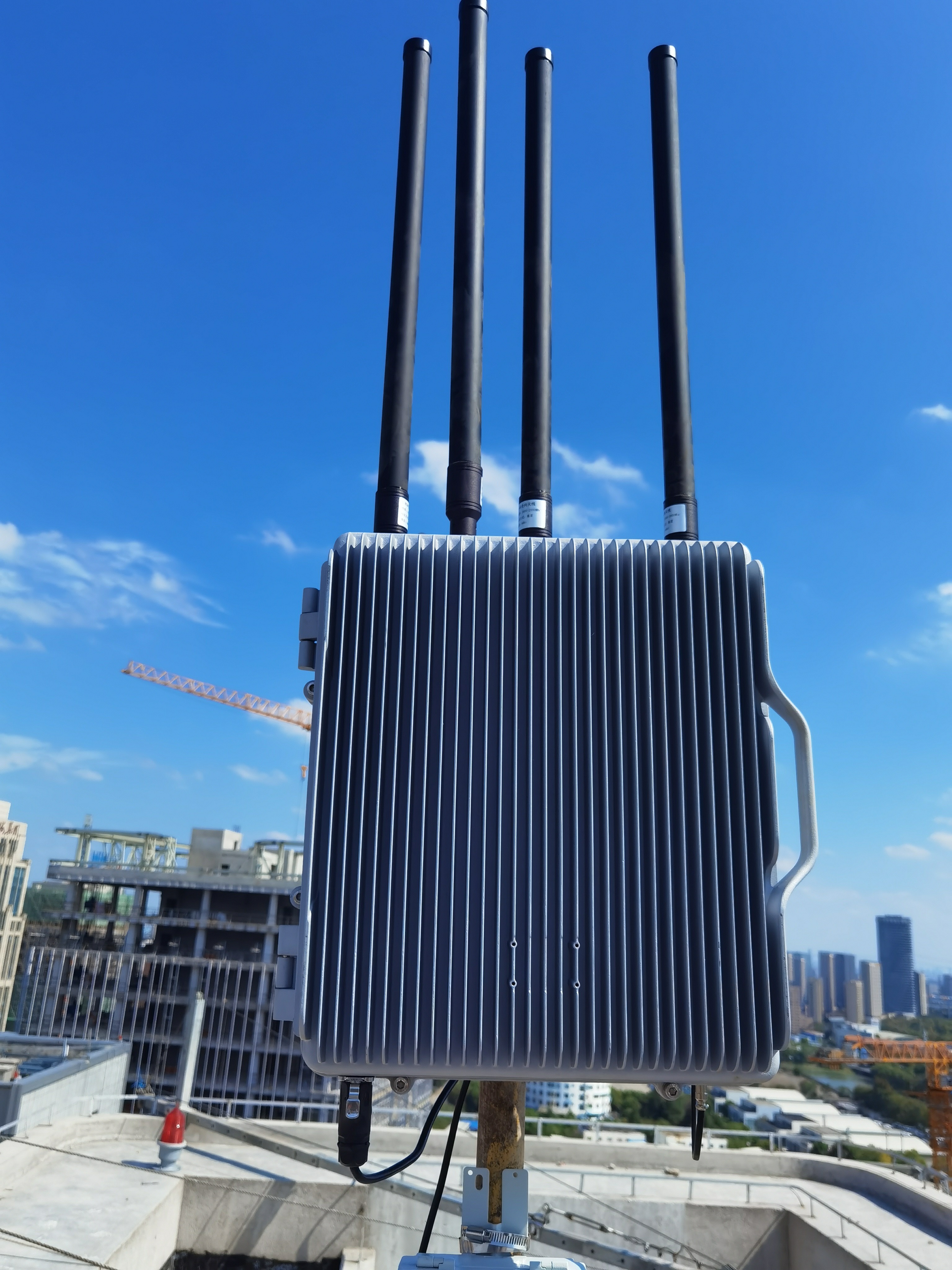

Installation Reference:









Different Solution:

Main Engine , Antenna ,Coxial, Connectors,etc.



Outdoor Computer Connection Long Range UAV Drone Signal Jammer Blocker For Oil Depot 2

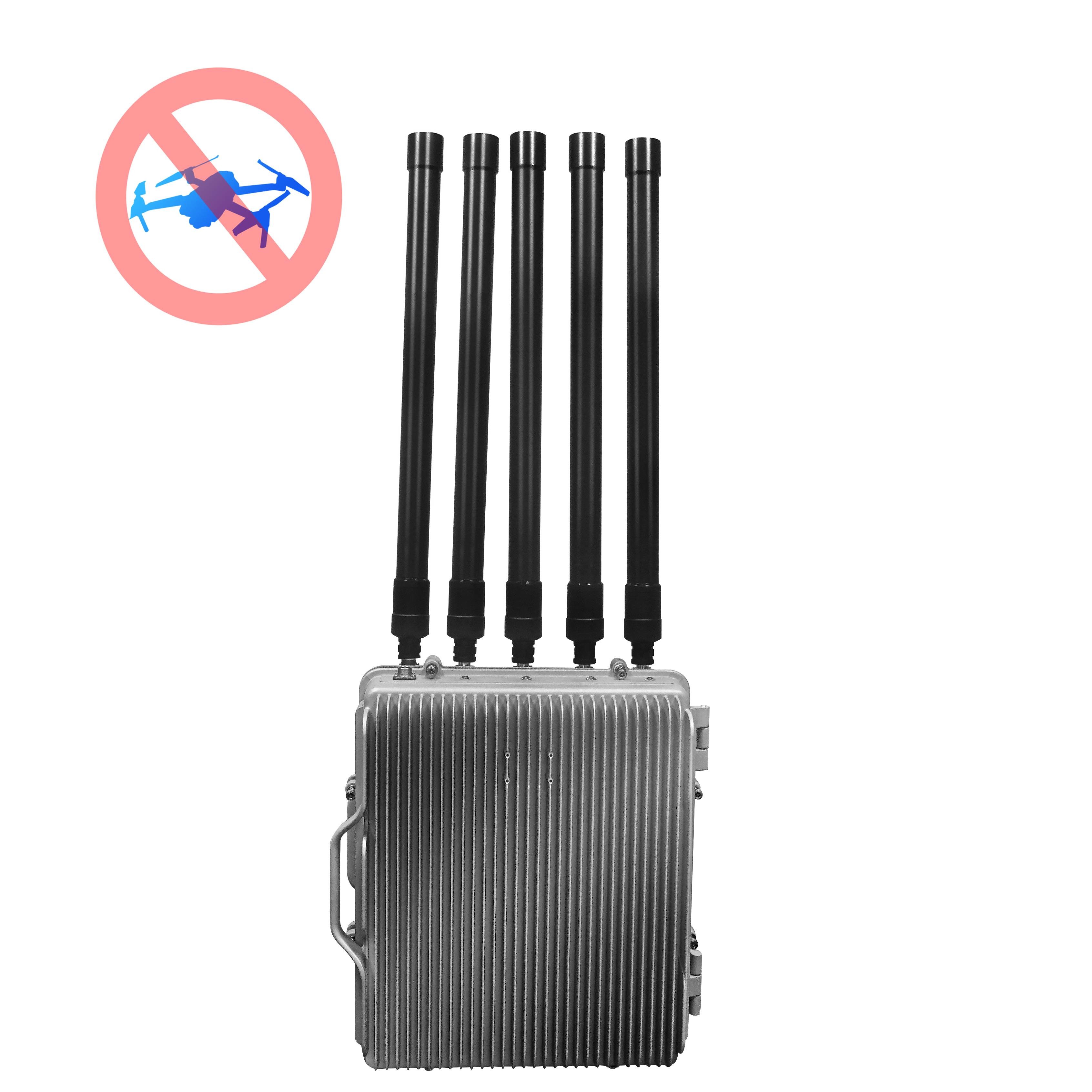

Details Photo







Outdoor Computer Connection Long Range UAV Drone Signal Jammer Blocker For Oil Depot 3



Technical Data:

Model

TX-JZ01

Jamming radius

1000-3000 meter

Output Power

Total 190W

Standard Shield Frequency

GPSL1: 1560-1620MHz

Wifi 2.4G: 2400-2485MHz

Wifi 5.8G: 5725-5850MHz

(Other customized frequency)

Power consumption

380W

Size

53*41*23cm

Antenna size

124*28*8cm

Working Hour

Continuous Working

Ambient Temperature

-40℃~75℃

Relative Humidity

35~85%

Installation Height

315meter

Installation ways

Wall hanging/pole holding

Outshell material

Die Cast Aluminium alloy

Waterproof Level

IPX64



Antenna Data:

FrequencyRange

Can be customized

Dimensions*mm(Height/Width/Depth)

124*28*8cm (Customized)

Gain

16±1dBi (Customized)

VSWR

≤1.5

Polarization

Vertical

Horizontal Beamwidth(0º)

100±5º

Vertical Beamwidth(0º)

15±3º

Front-to-back ratio(dB)

≥25

Input Impedance(Ω)

50Ω

Maximum input power(W)

100W for single connector

Input connector type

N type or customized

Lightening Protection

DC Ground

Rated Wind Velocity(m/s)

60m/s

Operational Humidity()

10- 95

Radome Color

Gray Color

Radome material

UPVC

Operating temperature(ºC)

-3075 º

Installution Method

Pole Mount

Mounting hardware(mm)

40~¢80

Mechanical tilt(º)

0-10º



Outdoor Computer Connection Long Range UAV Drone Signal Jammer Blocker For Oil Depot 4
