| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Certification: | SGS,ISO9001 |
| Model Number: | TX-OHQ |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Durable case or box |
| Delivery Time: | In 2 work day |
| Payment Terms: | T/T,Paypal, Etc. |
| Supply Ability: | 200,000pcs/month |
| Type: | 2 Way Coupler | Frequency Range: | 800-2600WHZ |
|---|---|---|---|
| Coupling: | -06 -08 -10 -12 -15 -20 -30 (dB) | Deviation: | ±0.5 ±0.5 ±0.7 ±0.7 ±0.9 ±1.0 ±1.0 (dB) |
| Insertion Loss: | 1.65 1.50 0.80 0.60 0.40 0.30 0.30 (dB) | V.W.S.R: | ≤1.2 |
| Directivity: | ＞20dB | Power Handling: | ≥200W |
| Highlight: | cell phone antenna,ceiling mount antenna |
||
TXtesig is specialized in producing the signal jamming and wireless coverage product .

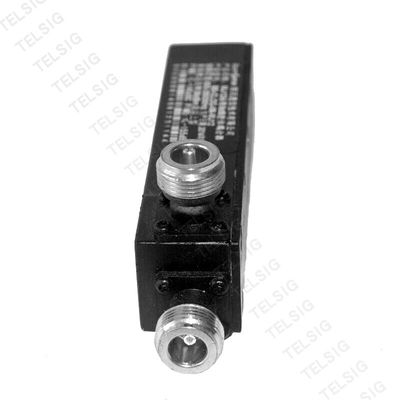

TX-OHQ coupler is designed for the two way radio and other wireless signal applications.
Feature
1. Small size to save space
2. Stable and Reliable performance
3. Customized Specifications
4. High coupling accuracy4. Reduce insertion loss
5. Large power capacity
6. Nice directivity
Specification
| TXtelsig No. | TX-OHQ |
| Frequency Band | 800-2600 MHz |
| Coupling | -06 -08 -10 -12 -15 -20 -30 (dB) |
| Deviation | ±0.5 ±0.5 ±0.7 ±0.7 ±0.9 ±1.0 ±1.0 (dB) |
| Insertion Loss | 1.65 1.50 0.80 0.60 0.40 0.30 0.30 (dB) |
| V.W.S.R | ≤1.2:1 |
| Directivity | ＞20dB |
| Power handling | ≥200W |
| Working Temperature | -25℃～+60℃ |
| Connector Type | 50Ω,N-K |
