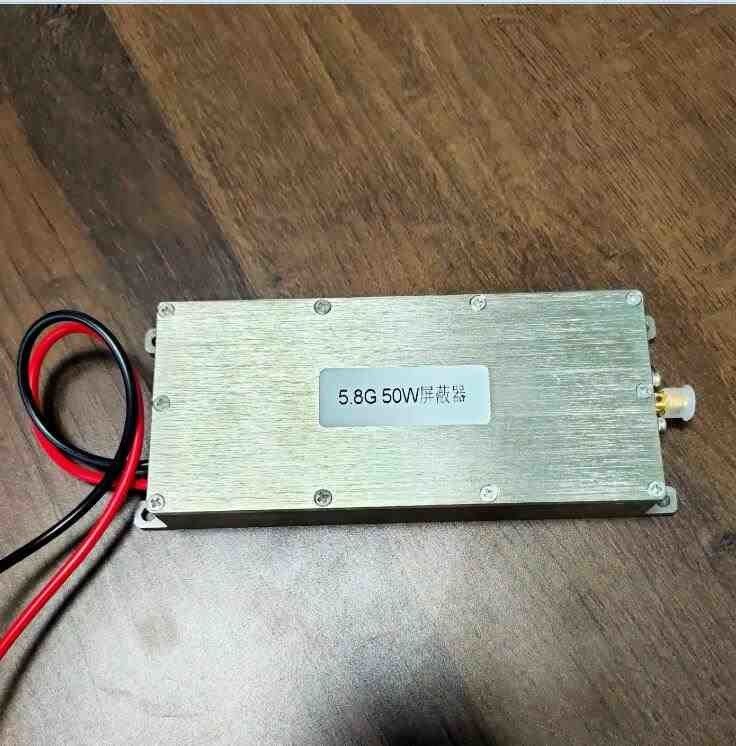

5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: CE FCC ROHS
Model Number: TX-RF 5.8G
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: Durable case with Protection Foam
Delivery Time: 2 DAY
Payment Terms: T/T,Paypal,Western Union, Etc.
Supply Ability: 100,000pcs/month
Detail Information
Work Frequency: 5700-5900MHz Output Power: 10W,20W,30W,40W,50W
Voltage: 24V Power Amplifier Efficiency: 40%
VSWR: ≤1.5 Max Output Power: 50W
Max Gain: 50±1 DB Flatness: ±2
Max Current: 4.8A Impeadance: N/F 50Ω
Standing Wave Protection: OK Temperature Protection: 75° ℃
Size: 20X11X2.35cm Weight: 1.50 Kgs
High Light:

rf power amplifier module

,

rf power detector module


Product Description

Customized 5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier



The 5.8ghz PA RF module we always have different output power choices : 5W 10W 20W 40W 50W
Price is different for each power
All the parameters of PA can be customized depend on your request,
If you have any customized parameters pls contact us freely.

5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier 0 5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier 1 5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier 2




5725-5850MHz 50W RF Power Amplifier Specification
No. Item Data Unit Note
1 Frequency 5725-5850 MHZ
2 Work Temperature -10~+75
3 Output Power 50 W
4 Work Voltage DC24 V
5 Max Gain  50±1.5 dB
6 Flatness ±3 dB
7 Max Current 4.8 A
8 Output VSWR ≤1.5
9 Output Connector N/F 50Ω
10 Power Amplifier Efficiency 41.6   When Max Output
11 Switch Control high low
level current
V 0V off /0.6 on
12  Standing Wave Protection OK
13 Temperature Protection 75°
14 Size
(not including heat-dissipation fin)
200X110X23.5 mm
15 Size
(not including heat-dissipation fin)
about 1.5 Kg



5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier 3 5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier 4





5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier 5 5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier 6 5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier 7



5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier 8 5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier 9 5.8GHz 5W 10W 20W 30W 40W 50W Jammer RF Module for Power Amplifier 10
