5W 900MHz 2.4ghz drone jammer signal blocker RF module with LDMOS solution to safety alarm

Basic Information
Place of Origin: Shenzhe China
Brand Name: TX TELSIG
Certification: SGS,ISO9001
Model Number: TX-PD5W
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Durable case or box
Delivery Time: In 2 work day
Payment Terms: T/T,Paypal, Etc.
Supply Ability: 100,000pcs/month
Detail Information
Product Name: Drone Signal Blocker Module Power: 5W
Frequency: 900mhz 1.2ghz Size: 80*48*20mm
Weight: 160g Warranty: 1year
Material: Aluminum Alloy Exterior Shell
Highlight:

dual band signal booster

,

cellular signal booster


Product Description

5W 900MHz 2.4ghz jammer signal blocker RF module with LDMOS solution to safety alarm

This 5W low-power drone countermeasure module is specifically designed for portable devices. It features a small size, sufficient power, and customizable frequency band. It can be used in government departments, prisons, schools, and around large concert venues. It is portable and easy to operate.

Product features :

1. Support frequency bands customization such as 800mhz 900mhz 1.2ghz 5.2ghz  ,VHF ,UHF ,Lojack ,GPS ,etc .You can choose what signal bands you need to shield.

2.Light weight  design , vert easy to carry around

3.With aluminum alloy material , antirust , anti-fall , very rugged and durable .

4.Good heat dissipation , which can make jammer work normally , and have good performance.

5.The jamming range is up to the real environment

6.Highly efficient to defense the drone signal

Specifications :

No. Item Data Unit
1 Frequency 400-2700 MHz
2 Test voltage 28 V
3 Current 1.6 A
4 Output 5 W
5 Gain 37 dB
6 Output stability 1 dB
7 Connector SMA / Female
8 Output connector VSWR ≤1.30 (No power and VNA test)
9 Power supply wire Red+Black+Enable wire
10 Enable Control High ON Low Off

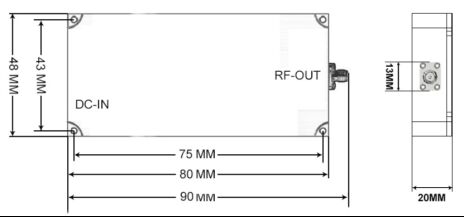

11 Out shell Size 80*48*20mm mm
12 Mount hole 75*43 mm
13 Weight 160 g
14 Work Temperature -40~+65
15 Out shell material Aluminum
16 Vibration need Car load OK

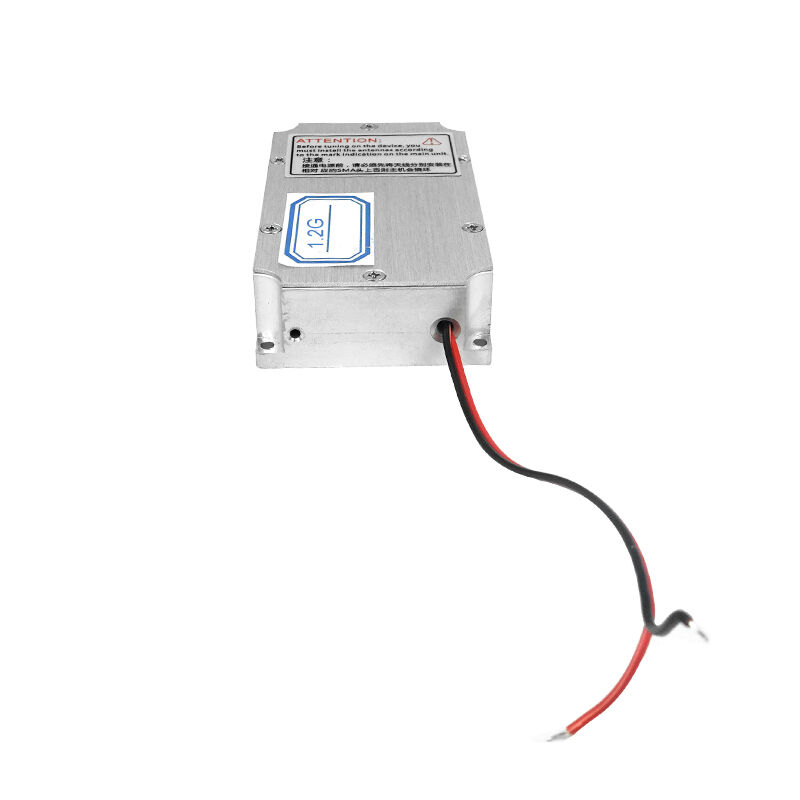

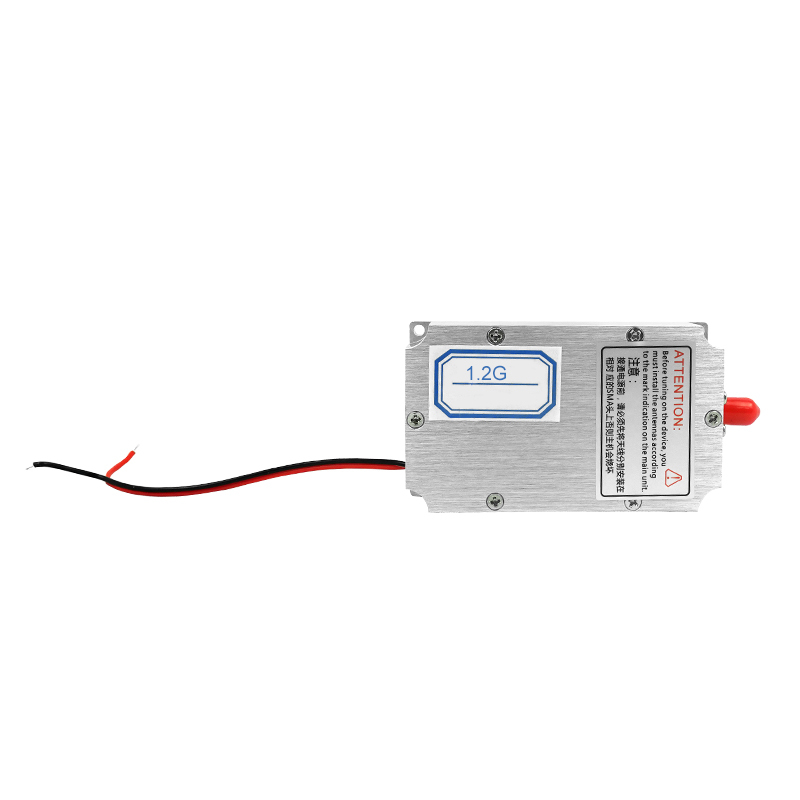

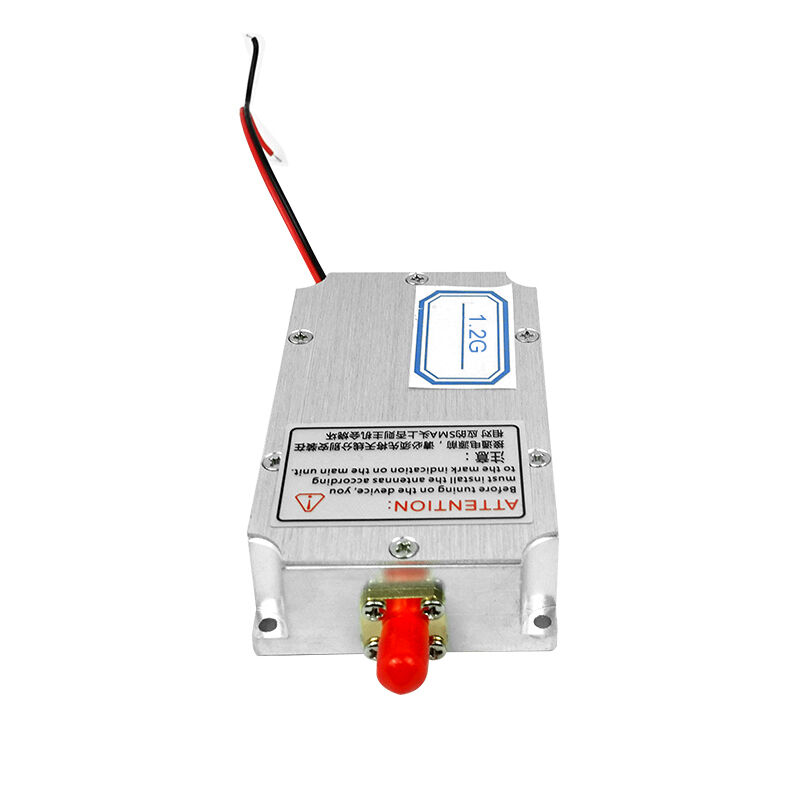

Pictures:

5W 900MHz 2.4ghz drone  jammer signal blocker RF module with LDMOS solution to safety alarm 05W 900MHz 2.4ghz drone  jammer signal blocker RF module with LDMOS solution to safety alarm 15W 900MHz 2.4ghz drone  jammer signal blocker RF module with LDMOS solution to safety alarm 2
