6V - 18V Input Wifi Booster Amplifier , No Software Outdoor Wifi Amplifier

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: SGS, ISO9001
Model Number: TX--H-2.4G-SMA
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Box
Delivery Time: 2 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000pcs/month
Detail Information
Frequency Range: 2400-2483.5MHz Operating Voltage: 6-18V
Max Output Power(P1dB): 37dBm(5W) Noise Figure: <3.0dB
High Light:

wifi antenna amplifier

,

internet signal amplifier


Product Description

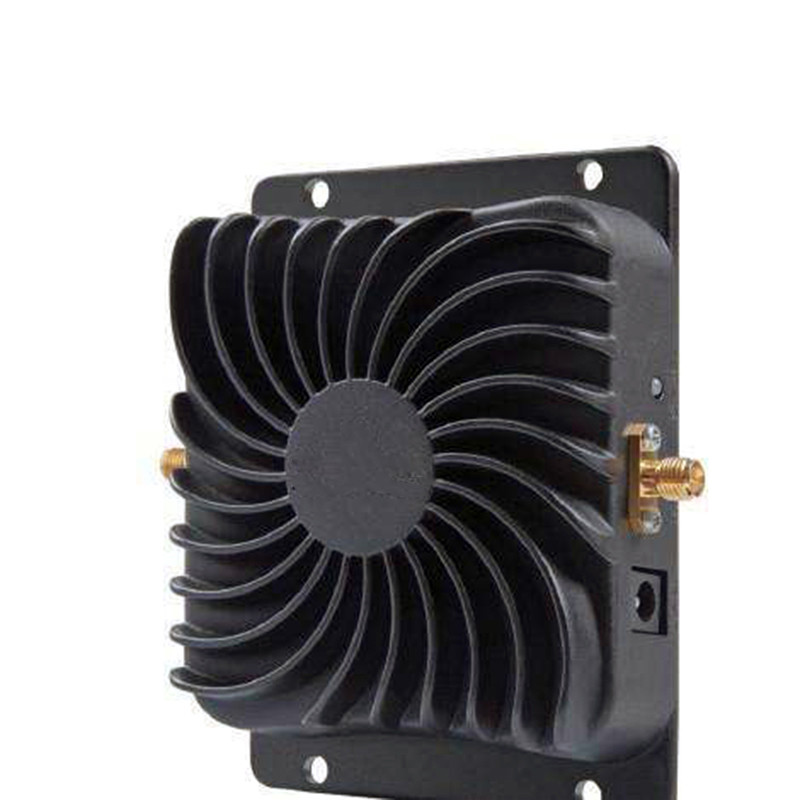

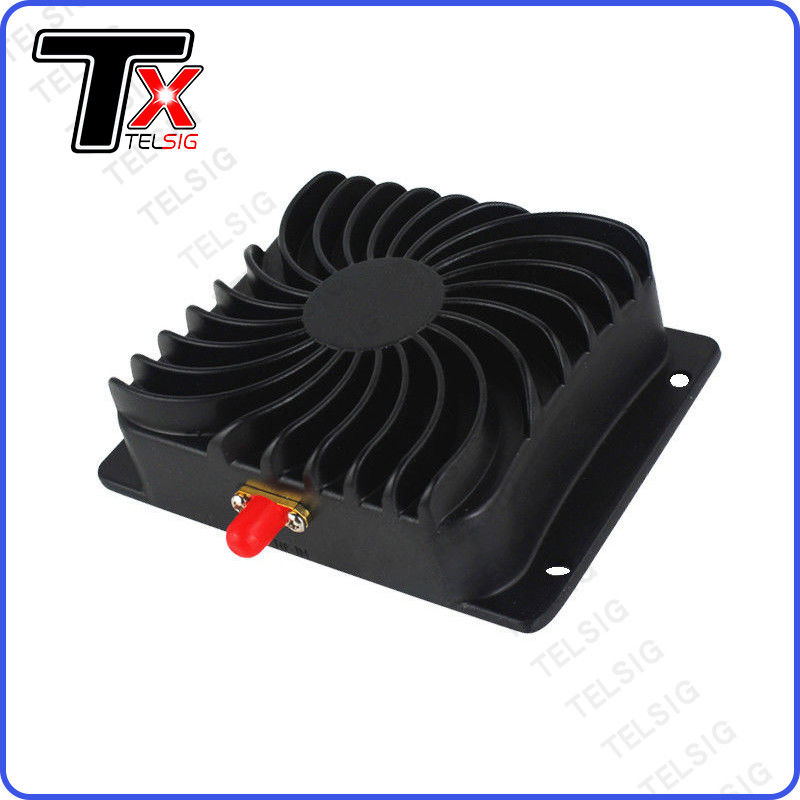

2.4GHz WiFi Booster SMA Connector 5W 37dBm Strong Power Signal Amplifier



Applications

IEEE 802.11a/n/ac WLAN System

Smart Home Systems Signal Extender

Wireless Cameras Signal Extender

Drone Signal Extender



Features

100X the power, improving the link quality and coverage of certified WLAN devices

3.0dB ultra-low noise

Wide 6V to 18V operating input range

Working with certified IEEE 802.11a/n/ac Wireless LAN devices

Simply plug and play, no software is required



Attentions

1 12V /1.5A power supply.

2 Heat dissipation is recommended, such as adding heat sink or radiator fan.

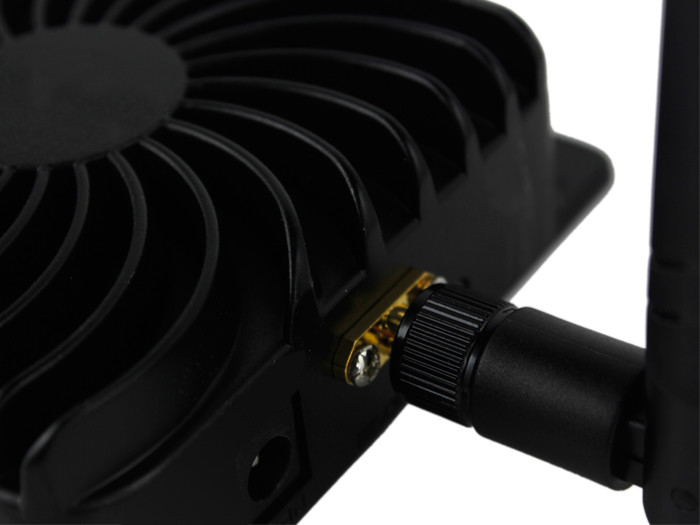

3 Antenna should be screwed first, then plug the power adapter, finally connect the device.

       4The output could reach 37dBm, when input power is 17dBm or 18dBm (default gain is 20dB)



Parameters
Place of Origin China
Brand Name TXtelsig
Model Number TX--H-5.8G-SMA
Type 37dBm 5.8GHz WiFi Booster
Standards IEEE 802.11b/g/n
Frequency 5.8GHz
Frequency Response ± 1dB
Noise Figure 3.0dB
Connector SMA Receptacle, 50 ohms.
Operating Temperature  -40 to 70 degree
Material Cast Aluminum
Operating Humidity Up to 95% relative humidity
Maximum output power 5W
RF Connector Input: SMA-K; Output: RP-SMA-K
LED Indicator Transmitter: Red; Receiver: Green
Operating Temperature -30℃~+70℃
Storage Temperature -40℃~+150℃
Operating Humidity Up to 95% rel. humidity
