Detail Information

Power:	100W	Frequency:	300-2700MHz
Voltage:	22V-32V	Current:	10A
Weight:	557g	Size:	1756523mm
Application:	RF Project	Material:	Aluminium
Connector:	N
Highlight:	100W GaN anti drone jammer , 22V 32V regulated voltage jammer , UAV counter system N type connector

Product Description

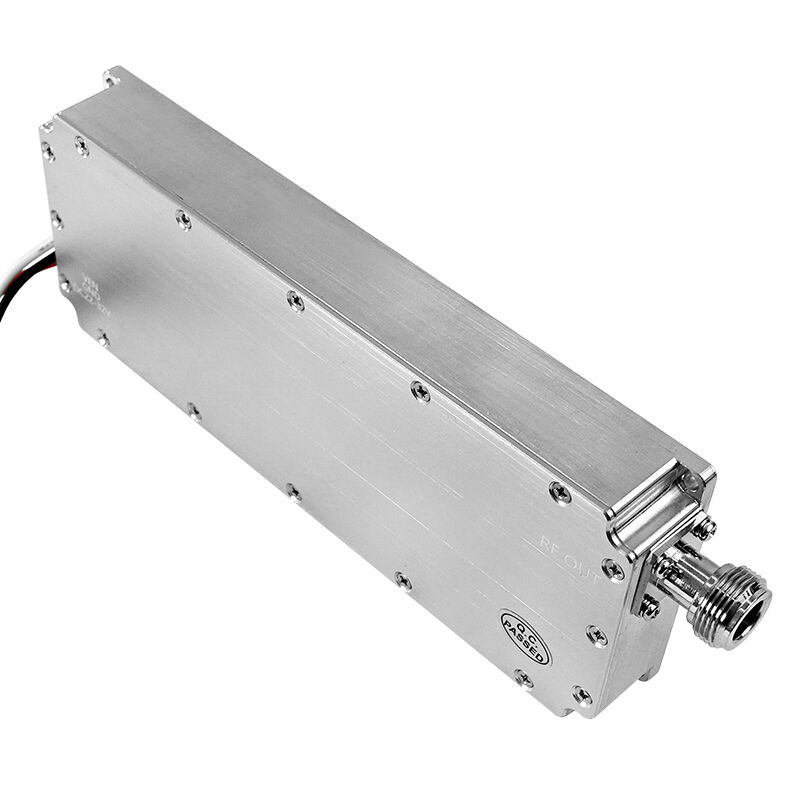

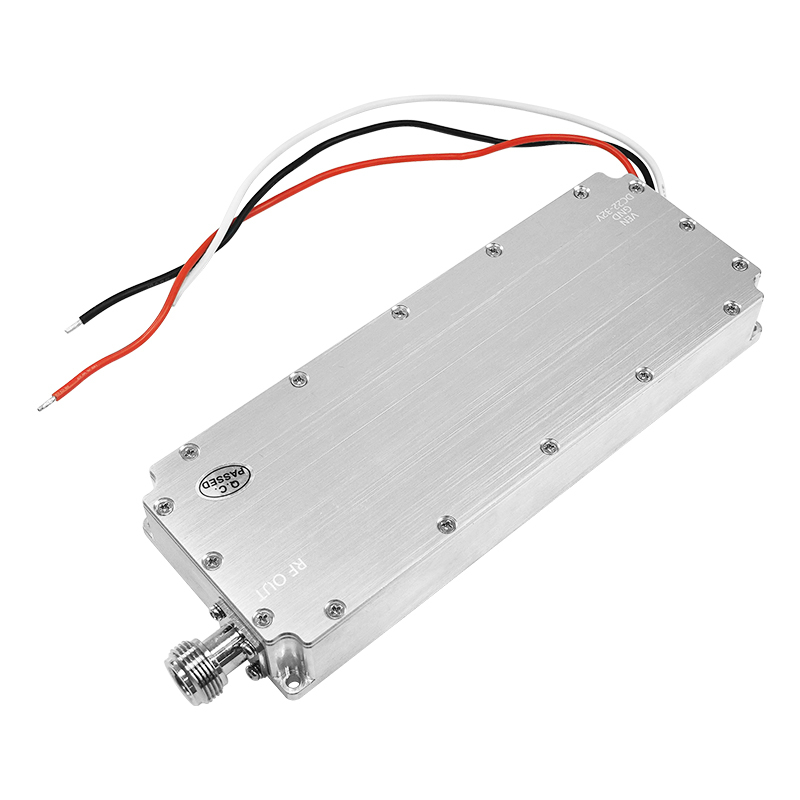

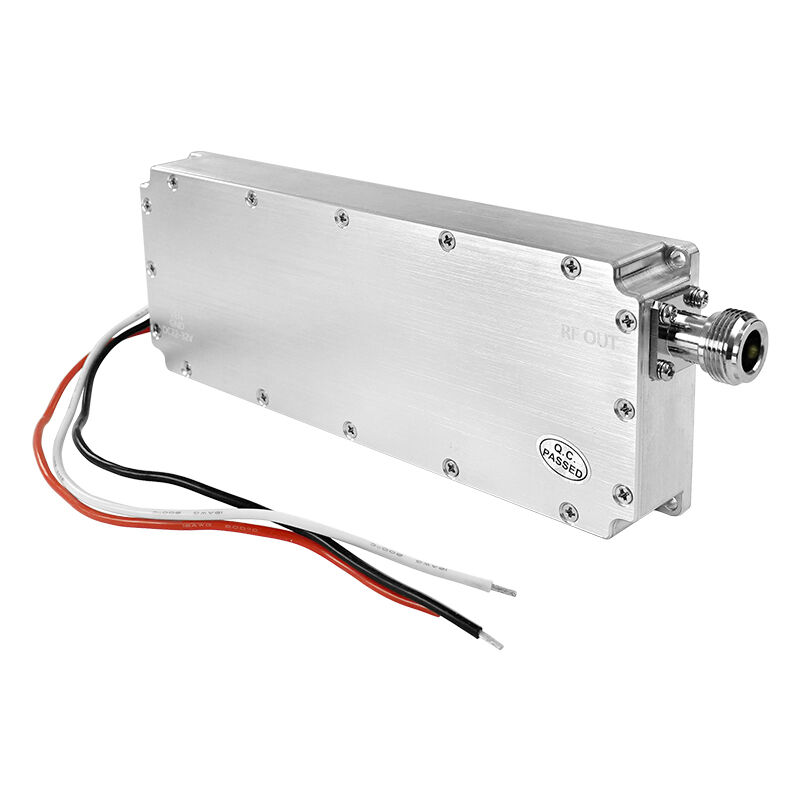

100W GaN Anti Drone Jamming Module

22V/32V Regulated Voltage with N-Type Connector for UAV Counter System

This 100W gallium nitride (GaN) anti-drone jamming module adopts a high-performance GaN power amplifier solution, supports 22V/32V dual voltage regulation output, has low ripple and is resistant to fluctuations, and can operate at full power continuously and stably for a long time. It comes standard with an N-type RF interface, making it easy to connect and install, and compatible with various anti-drone integrated systems.

Product Introduction

The module boasts industrial-grade military-grade quality, featuring low heat generation, high energy efficiency, and strong anti-interference capabilities. It serves as a core RF power amplifier component for drone countermeasures, signal jamming, and low-altitude security equipment. It is widely used in low-altitude defense scenarios such as airport security, factory intrusion prevention, restricted area control, and detention center protection, and supports batch customization of frequency bands and technical debugging.

Technical Specifications

Item	Data	Unit
Frequency	5925-6425	MHz
Test voltage	22-32	V
Current	10	A
Output	100	W
Gain	50	dB
Output stability	1	dB
Connector	N/Female
Output connector VSWR	≤1.30 (No power and VNA test)
Power supply wire	Red+Black+Enable wire
Enable Control	High ON Low Off

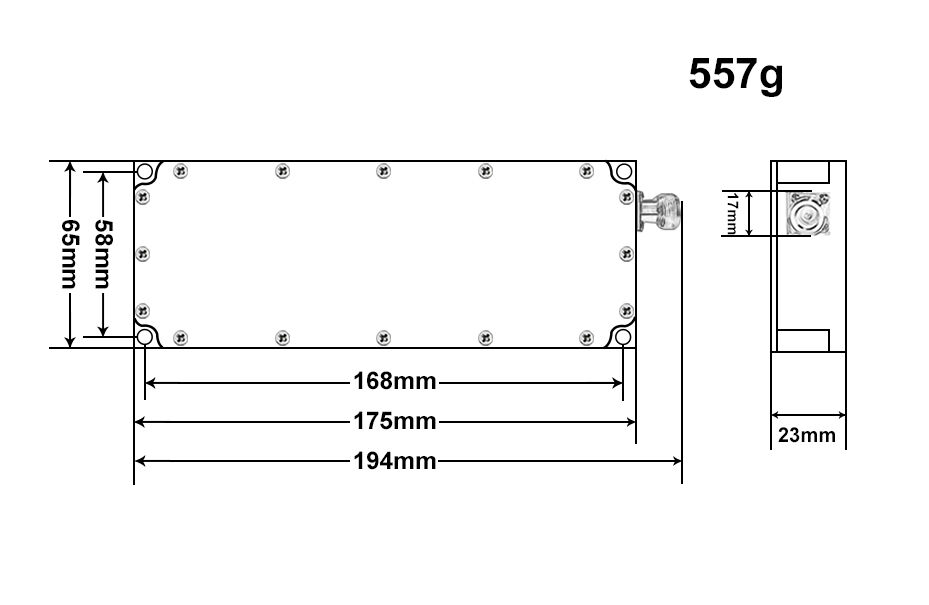

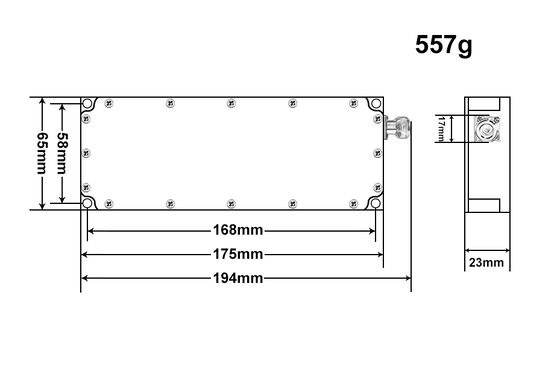

Out shell Size	1756523	mm
Mount hole	175*65	mm
Weight	557	g
Work Temperature	-40~+65	℃
Out shell material	Aluminum
Vibration need	Car load OK

Key Features

Adopts advanced GaN gallium nitride solution, high efficiency, low heat generation, stable long-term CW operation
100W continuous power output, strong signal jamming & blocking performance for anti-drone system
Support 22V / 32V dual regulated voltage, low ripple, anti power fluctuation
Equipped with standard N-type connector, fast installation, easy RF connection & system integration
Industrial grade design, high temperature resistance, strong anti-interference, long service life
Compact structure, high power density, easy to match various UAV counter jamming equipment
Widely applicable to airport, prison, military zone, factory park low-altitude security defense projects

Important Notes

Please use the matched voltage
The antenna needs to be connected before powering on
A cooling system is needed for prolonged operation
It works better in areas with unobstructed views

Frequently Asked Questions

What is the minimum order quantity?

We support orders starting from one piece, but do not offer free samples.

How much of the 100W anti drone jamming module?

Prices vary depending on the frequency band; please feel free to contact us.

What are the payment methods?

T/T, Alibaba, Paypal, USDT, Alipay, Wechat, etc.

How about the delivery time?

Orders are usually shipped within 5-7 days after placement.
