Type: | Low Altitude Signal Jammer | Frequency: | 1.5G 2.4G 5.8G GPS Or Customized |
---|---|---|---|
Marterial: | Durable Alluminum Alloy | Output Power: | 2.4G/100W 1.5G/50W 5.8G/40W Customized |
Power Supply: | AC110-240V DC27V | Jamming Range: | 500-3000 Meter |
Weight: | 28.0KG | Size: | 540*400*240mm (not Including Height) |
High Light: | drone frequency jammer,drone jamming device |
https://www.youtube.com/watch?v=HMAmJEiiO4g&t=103s

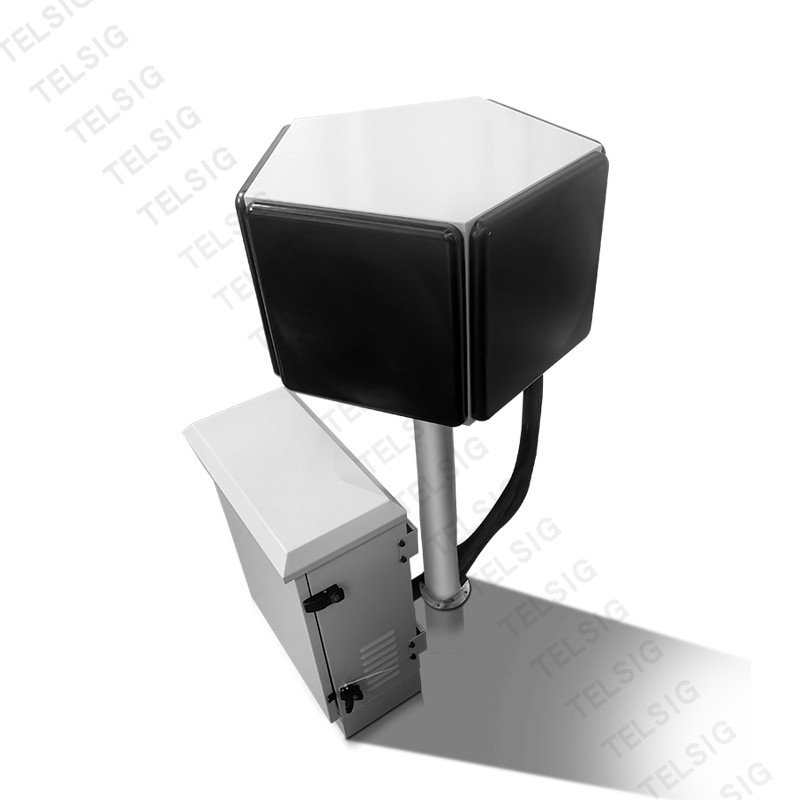

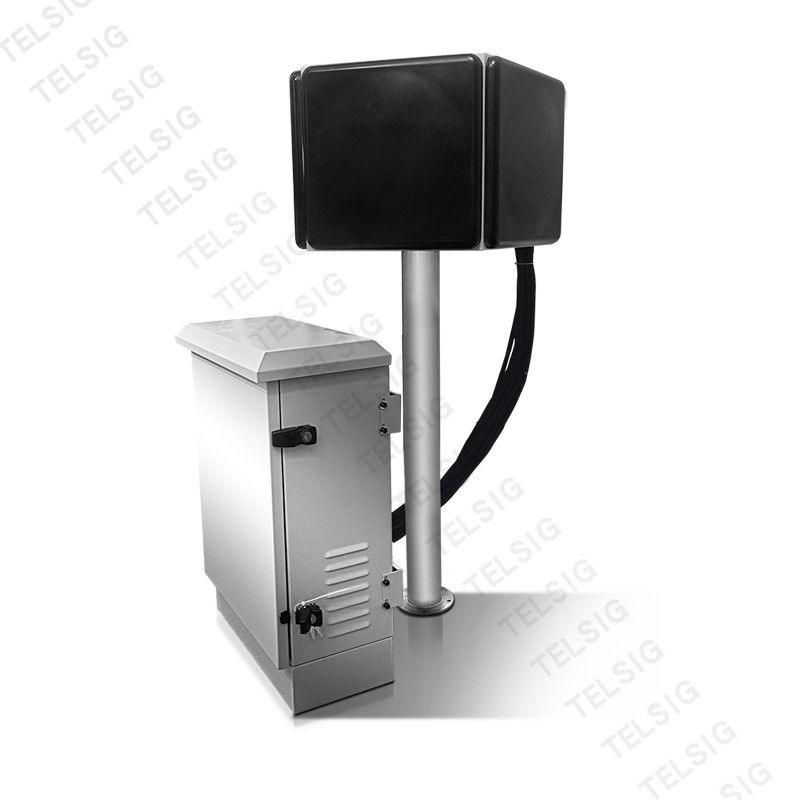

TX-JZ360 specially&strongly protects your important areas from the low-altitude air threat
by interfering the specific frequency band between UAV and remote control, 24 hours
continuously and 360° coverage up to 500-3000 meter.
It can immediately force UAV return home or land.
TXtelsig is an original factory for wireless coverage and jamming product.
Product Feature
1. Specially&Strongly protect the low-altitude area while other drone jammer prevent drones
from high-altitude area
2. Large Fixed design to protect specific place like infrastructures, oil pot, mine area, military
station,etc.
3. Non stop working 24hours continuously
4. high power 360° blocking signals first time when the air threats appear
5. Durable Heat-dissipation Aluminum Alloy Body for stable performance
6. Long distance jamming to 500-3000 meter
7. IPx7-waterproof level resisting terrible outdoor environment
How to Use
Switch | 1.5G | 2.4G | 5.8G | Function | UAV Status |
Action | |||||
Press | √ | Stop GPS link | Return home | ||
Press | √ | √ | Stop Image transmission; | Stop Image transmission; | |
Remote control fail to operate UAV | Remote control fail to operate UAV | ||||
Press | √ | √ | √ | Stop GPS link and Image transmission; | Slowly landing immediately |
Remote control fail to operate UAV |
Specification
TX Model No. | TX-JZ360 |
Size | 540*400*240mm |
(not including antenna height) | |
Weight | 28.0KG |
Jamming Frequency | 1.5GHz (GPS) |
(Can be customized) | 2.4Ghz |
5.8GHz | |
Large Jamming Range | 500-3000 Meter |
Power supply | AC110-240V-DC27V |
Use Time | 24 hours Non-stop |
Dissipation | Built-in dissipation fin and 5 fans |
Work Temperature | -22℃ to +70℃ |
Work Humidity | 5% to 80% |
Product Guarantee | One Year |
Jamming Frequency Details
Band | Frequency | Output Power |
1.5G(GPS) | 1580-1620 MHZ | 50W |
2.4G | 2400-2460MHZ | 100W |
5.8G | 5720-5850 MHZ | 40W |
Application
The specific area faces the low-altitude air threat
Package
1pcs |
UAV signal jammer |
1set |
Other Accessories |
1set |
Manual |
