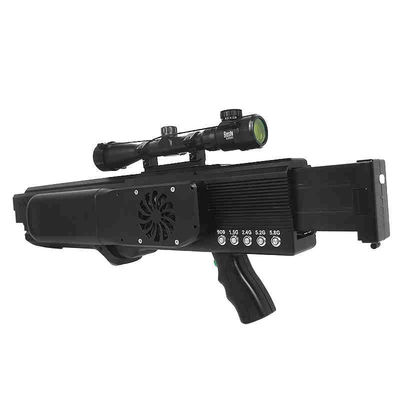

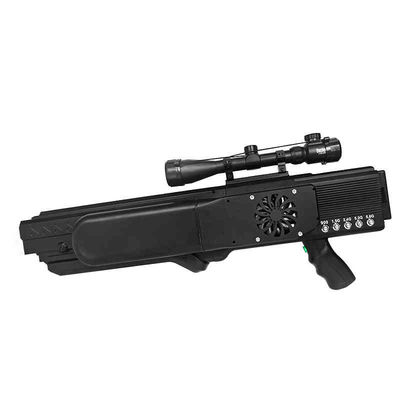

6 Channel Anti UAV Jammer

Basic Information
Place of Origin: Shenzhen ,China
Brand Name: TeXin
Certification: CE ISO SGS
Model Number: TX-XQ06
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Brief case with 5 layer K=K kraft paper carton
Delivery Time: 1-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000/month
Detail Information
Type: Anti Droen Gun Jammer Jamming Range: 1500-2000 Meter
Size: 680*220*60 Mm Weight: About 6.02 KG
Jamming Channel: Customized 6 To 8 Channel Output Power: Over 130W
Power Supply: AC100-240V-DC24V Duration Time: 1-1.5 Hour
High Light:

6 Channel Anti UAV Jammer


2000 Meter Anti Drone Gun Jammer


SGS Anti Drone Gun Jammer

Product Description

2000 Meter 6 Channel Anti UAV Drone Gun Counter Blocker



TX-XQ06 is a 6 channel anti drone gun counter blocker up to 1500-2000 meter effective jamming range.

This anti drone gun model is the self-developed and new drone jammer model of TeXin brand. We are the

China manufacturer of the professional signal jammer including the anti drone jammer, phone WIFI signal

jammer, GPS signal jammer. Etc.


We have the one stop and complete supply chain for the anti drone signal jammer with price advantage and

high quality with CE SGS ISO9001 certificates.



Anti Drone Gun Jammer Function

The intruding target drone will be forced to:

1. Enter vertical safe-landing mode

2. Or Return to the starting point or the drone operator which allows the drone

operator to be tracked down



Drone Gun Jammer Specification

Model No. TX-XQ06 Anti Drone Gun Jammer
Size 680*220*60 mm
Weight about 6.02 KG




6 Channel

Jamming Frequency

CH1: 433MHz, 1 module
CH2: 868/915MHz, 1 module
CH3: 2.4G: 2400-2500 MHz, 2 module strengthen effect
CH4: 5.8G: 5725-5850 MHz, 2 module strengthen effect
CH5: GPSL1&Glonass L1: 1560-1620 MHz, 1 module
CH6: GPSL2&Glonass L2: 1100-1300 MHz, 1 module
Total Output Power Over 130W


Jamming Range

About 1500-2000 Meter

(depends on the real environment;

hopping frequency drone is less distance )

Power supply AC100-240V-DC24V
Battery Charge Time 4 Hours
Built-in Battery 24V 15A ( External Battery can be offered with extra cost )
Duration Time 1-1.5 Hour


Packing List

> Anti Drone UAV Gun Jammer *1 piece

> Removable Built-in Battery *1 piece

> AC charger *1piece


6 Channel Anti UAV Jammer 0


6 Channel Anti UAV Jammer 1


6 Channel Anti UAV Jammer 2
