| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Certification: | SGS,ISO9001 |
| Model Number: | TX-A-PB |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Durable case or box |
| Delivery Time: | In 2 work day |
| Payment Terms: | T/T,Paypal, Etc. |
| Supply Ability: | 50,000pcs/month |
| Type: | Panel Antenna | Frequency Range: | 698-2700MHz (Customized ) |
|---|---|---|---|
| Gain: | 7/8dB | Impedance: | 50Ω |
| VSWR: | ≤1.4 | Max Power: | 50W |
| High Light: | omni directional antenna,ceiling mount antenna |
||

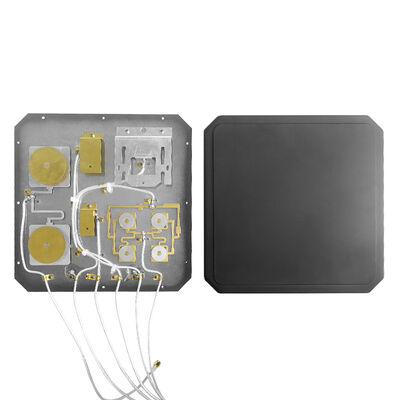

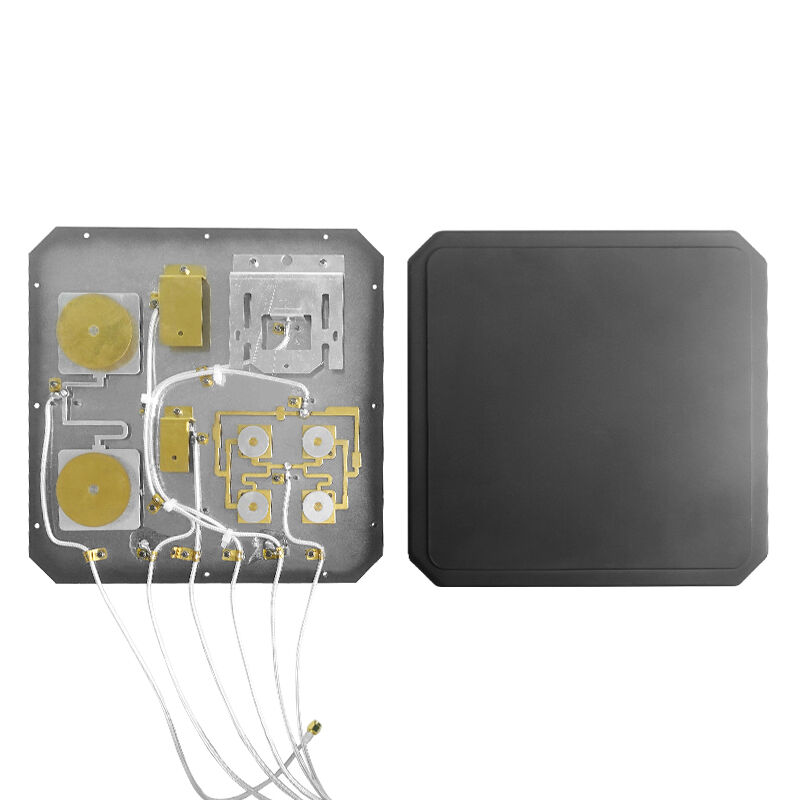

Panel Antenna for N-female cell phone signal booster RF indoor coverage GSM&DCS&WCDMA
800-2700MHz 8 to 12 dB
TXtelsig is the professional manufacturer for the signal jamming and wireless coverage product.
Specification
| Brand-TXtelsig | Model No. | TX-A-PB |
| Frequency range(MHz) | 806~960 | 1710~2700 |
| Gain | 7dBi±1dB | 8dBi±1dB |
| Horizontal Beamwidth | 90±15 deg | 75±12 deg |
| Vertical Beamwidth | 65 deg | 60 deg |
| Front to Back Ratio | ≥6 dB | ≥8 dB |
| VSWR | ≤1.4 | |
| Input Impedance | 50 Ω | |
| Polarization | Vertical | |
| Maximum Power | 50 W | |
| PIM (IM3) | ≤-107dBm @33dBm*2 | |
| Connector Type | N-Female | |
| Operating Temperature | -40 to +70 C deg | |
| Relative humidity | 5 to 95 % | |
| Dimensions | 210x180x44 mm | |
| Net weight | 430 g | |
| Cable Length | 260 mm | |
| Radome Material | ABS | |
| Radome Colour | White | |
| Operating Temperature | -40 to +70 C deg | |
| Relative humidity | 5 to 95 % | |
| Rated Wind Velocity | 210 km/h | |
